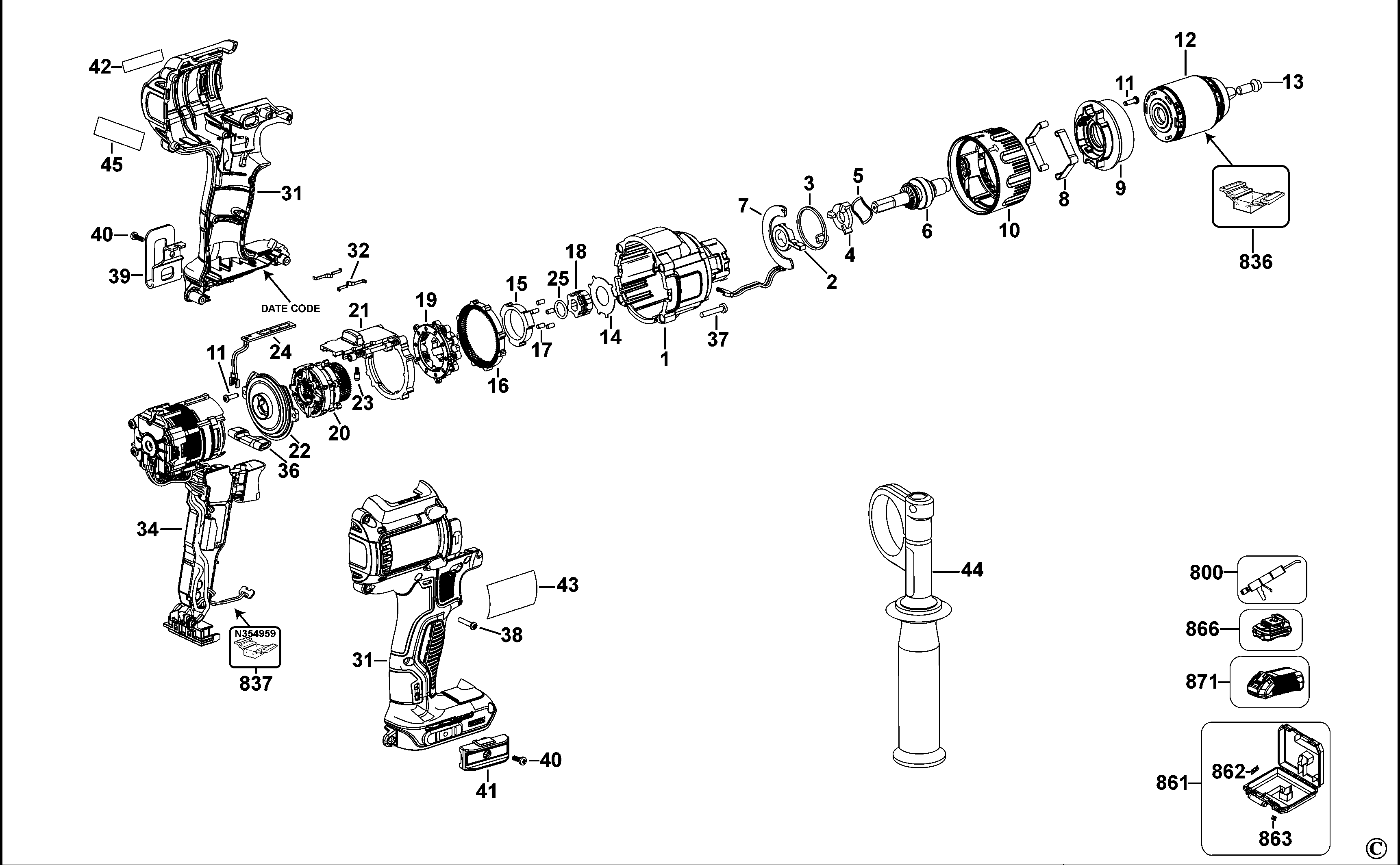

DCD995 CORDLESS DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N376087 | 1 | GEARCASE SA | GB |  |
||
| 2 | N146719 | 1 | LEVER | GB | |
||
| 3 | N316079 | 1 | SPRING | GB | |
||
| 4 | N149367 | 1 | GEAR | GB | |
||
| 5 | N269741 | 1 | WASHER SPRING | GB | |
||
| 6 | N336167 | 1 | SPINDLE SA | HDD | GB | |
|
| 7 | N376088 | 1 | SENSOR | CLUTCH | GB | |
|
| 8 | N165352 | 2 | DETENT | GB | |
||
| 9 | N161216 | 1 | END CAP | GB |  |
||
| 10 | N172594 | 1 | COLLAR | GB | |
||
| 11 | N281559 | 5 | SCREW | T10 - M3 THD FORM | GB | |
|
| 12 | N242399 | 1 | CHUCK KEYLESS | GB | |
||
| 13 | N243859 | 1 | SCREW.SPECIAL | T20 1/4 28 UNF LH | GB | |
|
| 14 | 652378-00 | 1 | PLATE | GB | |
||
| 15 | N375852 | 1 | LOCKING RING | GB | |
||
| 16 | N375864 | 1 | GEAR | GB | |
||
| 17 | 654110-00 | 5 | ROLLER | GB | |
||
| 18 | N375869 | 1 | ANVIL | GB | |
||
| 19 | N375865 | 1 | GEAR SA | GB | |
||
| 20 | N375866 | 1 | GEAR SA | GB | |
||
| 21 | N375867 | 1 | SLIDER SA | GB | |
||
| 22 | N375868 | 1 | BAFFLE SA | GB | |
||
| 23 | 326467-00 | 1 | DETENT | TO DCODE WK14 2015 | GB | |
|
| 24 | N376089 | 1 | SENSOR | SPEED | TO DCODE WK14 2015 | GB | |
| 25 | N309119 | 1 | O RING | 10.82 ID - 1.78 DIA | GB | |
|
| 31 | N157789 | 1 | CLAMSHELL SET | 18V | GB | ||
| 32 | N014681 | 2 | LEAF SPRING | GB | |
||
| 34 | N389442 | 1 | MOTOR SA | 18V | GB | |
|
| 36 | N167664 | 1 | ACTUATOR FWD/REV | GB | |
||
| 37 | 330019-52 | 4 | SCREW | GB | |
||
| 38 | 682211-00 | 8 | SCREW | GB | |
||
| 39 | N086039 | 1 | HOOK | GB | |
||
| 40 | N042665 | 2 | SCREW | GB | |
||
| 41 | N095778 | 1 | HOLDER BIT | GB | |
||
| 42 | N237999 | 1 | LABEL | 18V | GB | |
|
| 43 | N260159 | 1 | RATING PLATE | EURO | GB | |
|
| 44 | N221312 | 1 | SIDE HANDLE | PLASTIC | GB | |
|
| 45 | N317859 | 1 | LABEL | BRUSHLESS | GB | |
|
| 800 | N017298 | 1 | GREASE | G-2008 Molykote | GB | |
|
| 836 | 559661-99 | 1 | S.T.CHUCK REMOVAL JIG | GB | |
||
| 836 | 596004-99 | 1 | S.T.INSERT | GB | |
||
| 837 | N354959 | 1 | SERVICE TOOL | DIAGNOSTICS | GB | |
|
| 861 | N312359 | 1 | KITBOX | T-STAK | DCD995NT | GB | |
| 861 | N312359 | 1 | KITBOX | T-STAK | GB | ||
| 862 | H1500082520 | 2 | LATCH | DCD995NT | GB | ||
| 863 | P910190 | 2 | LATCH | DCD995NT | GB | |
|
| 866 | N195933 | 1 | BATTERY 18V - 4.0AH - 72WH | Li-Ion - DCB182; Li-Ion - DCB182-XJ | DCD995M2 - DCD995M3 | GB | |
| 866 | N394624 | 1 | BATTERY 18V - 5.0AH - 90WH | DCD995P2 | GB | |
|
| 871 | N450537 | 1 | CHARGER 10.8V - 18V | GB | |
