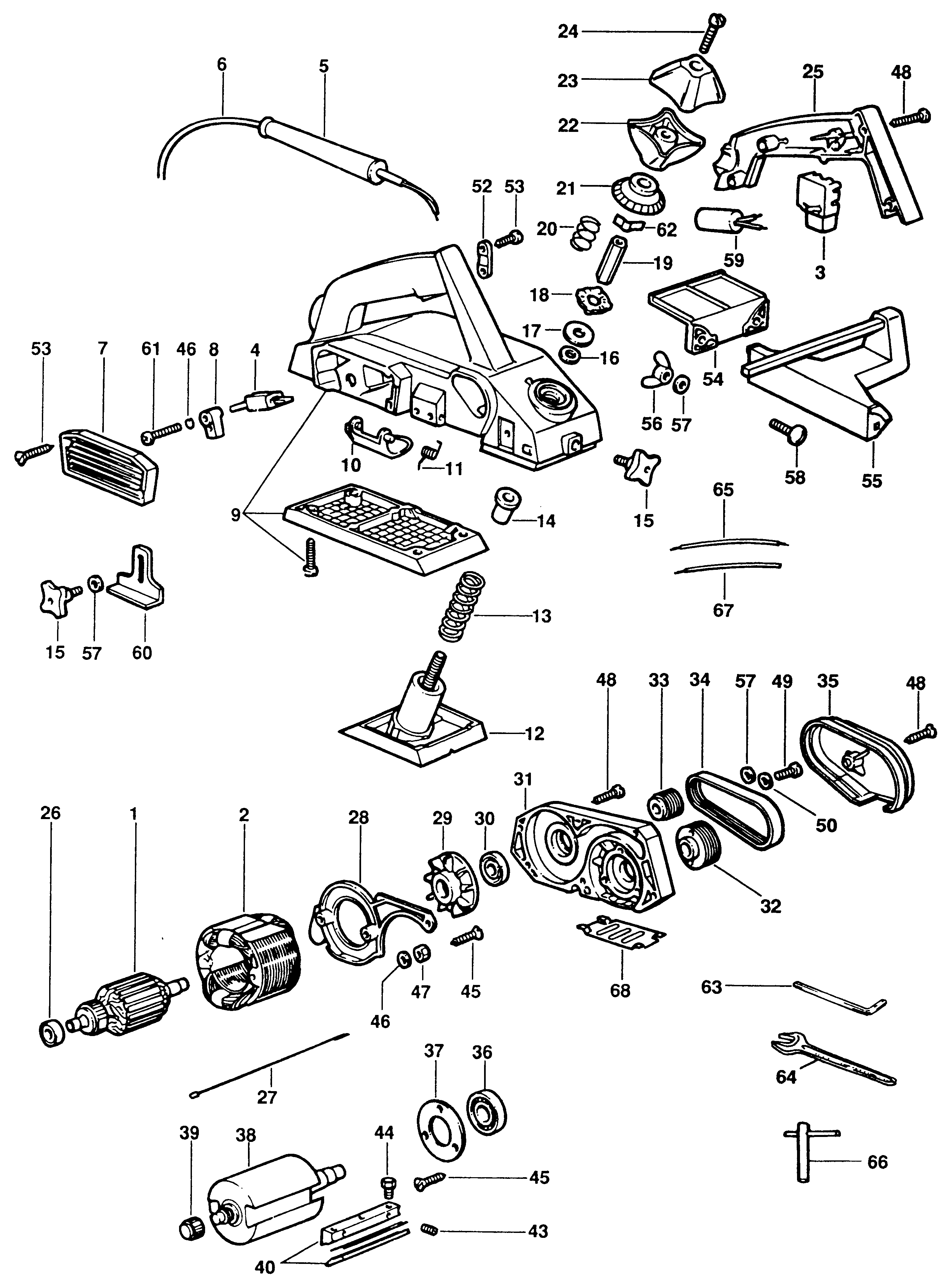

MFF80 PLANER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 080100205 | 1 | ARMATURE 115V | 115 VOLT | ZA |  |
|
| 1 | 249633-01 | 1 | ARMATURE VAR | 220 VOLT | ZA | |
|
| 2 | 080102103 | 1 | FIELD 220V | 220 VOLT | ZA | |
|
| 2 | 080102105 | 1 | FIELD 115V | 115 VOLT | ZA | |
|
| 3 | 155160302 | 1 | SWITCH | ZA | |
||
| 4 | 868054-01 | 2 | BRUSH & HOLDER | 115 VOLT | ZA | |
|
| 4 | 326525-00 | 2 | BRUSH & HOLDER | 220 VOLT | ZA | |
|
| 5 | 320785 | 1 | CORD PROTECTOR | TYPE 3 | ZA | |
|
| 5 | 720703-00 | 1 | PROTECTOR | TYPE 2 | ZA |  |
|
| 5 | 720703-00 | 1 | PROTECTOR | TYPE 1 | ZA | |
|
| 6 | 030101907 | 1 | CORDSET | ZA | |
||
| 6 | 4688529 | 1 | CABLE PER METRE | GB TYPE 3 | ZA | |
|
| 6 | 4688529 | 1 | CABLE PER METRE | GB TYPE 1 & 2 | ZA | |
|
| 6 | 379091 | 1 | CORDSET (EURO) | DE TYPE 1 & 2 | ZA | |
|
| 6 | 379091 | 1 | CORDSET (EURO) | DE TYPE 3 | ZA | |
|
| 7 | 248397-05 | 1 | COVER BRUSH | ZA | |
||
| 8 | 080120701 | 2 | CLAMP | ZA | |
||
| 9 | 247607-00 | 1 | FIELDCASE | TYPE 3 | ZA | |
|
| 9 | 247607-00 | 1 | FIELDCASE | TYPE 2 | ZA | |
|
| 9 | 080106001 | 1 | FIELDCASE SA | TYPE 1 | ZA | |
|
| 10 | 326114-01 | 1 | GUARD | ZA | |
||
| 11 | 080930914 | 1 | SPRING | ZA | |
||
| 12 | 247448-11 | 1 | SHOE | TYPE 3 | ZA | |
|
| 12 | 247448-11 | 1 | SHOE | TYPE 2 | ZA | |
|
| 12 | 249649-00 | 1 | SHOE SA | TYPE 1 | ZA | |
|
| 13 | 572255-00 | 1 | SPRING | ZA | |
||
| 14 | 080120901 | 1 | BUSH | ZA | |
||
| 15 | 025922908 | 2 | KNOB | ZA | |
||
| 16 | 401123700 | 1 | RING | TYPE 1 | ZA | |
|
| 17 | 401120601 | 1 | WASHER | TYPE 1 | ZA | |
|
| 18 | 247557-00 | 1 | WASHER | TYPE 3 | ZA | |
|
| 18 | 247557-00 | 1 | WASHER | TYPE 2 | ZA | |
|
| 18 | 040120600 | 1 | WASHER LOCK | TYPE 1 | ZA | |
|
| 19 | 247343-00 | 1 | NUT | TYPE 3 | ZA | |
|
| 19 | 247343-00 | 1 | NUT | TYPE 2 | ZA | |
|
| 19 | 080921019 | 1 | NUT | TYPE 1 | ZA | |
|
| 20 | 036931062 | 1 | SPRING | TYPE 1 | ZA | |
|
| 21 | 248325-05 | 1 | SCALE | TYPE 3 | ZA | |
|
| 21 | 248325-05 | 1 | SCALE | TYPE 2 | ZA | |
|
| 21 | 401120602 | 1 | SCALE | TYPE 1 | ZA | |
|
| 22 | 248998-05 | 1 | HANDLE SA | ZA | |
||
| 23 | 248998-05 | 1 | HANDLE SA | ZA | |
||
| 24 | 249424-32 | 1 | SCREW | ZA | |
||
| 25 | 080120209 | 1 | COVER | TYPE 2 | ZA | |
|
| 25 | 080120209 | 1 | COVER | TYPE 1 | ZA | |
|
| 25 | 324589-05 | 1 | COVER | TYPE 3 | ZA | |
|
| 26 | N110358 | 1 | BEARING | ZA | |
||
| 27 | 080164503 | 2 | LEAD YELLOW | ZA | |
||
| 28 | 080120600 | 1 | BAFFLE | ZA | |
||
| 29 | 580130500 | 1 | FAN | ZA | |
||
| 30 | 013830000 | 1 | BEARING | ZA | |||
| 31 | 247349-00 | 1 | COVER | ZA | |
||
| 32 | 080121402 | 1 | PULLEY | ZA | |
||
| 33 | 080130502 | 1 | PULLEY | ZA | |
||
| 34 | 080924604 | 1 | BELT GROOVED | ZA | |
||
| 35 | 324651-00 | 1 | COVER BELT | ZA | |
||
| 36 | 861721-01 | 1 | BEARING | ZA | |
||
| 37 | 868047-00 | 1 | PLATE | ZA | |
||
| 38 | 247815-00 | 1 | CUTTER BLOCK SA | ZA | |
||
| 39 | 330004-06 | 1 | BEARING NEEDLE | ZA | |
||
| 40 | 247941-00 | 1 | SUPPORT KIT | ZA | |
||
| 43 | 072815900 | 4 | SCREW.TEMP | ZA | |
||
| 44 | 578432-00 | 6 | SCREW | ZA | |
||
| 45 | 860428-04 | 4 | SCREW | ZA | |
||
| 46 | 093820600 | 2 | WASHER LOCK | ZA | |
||
| 47 | 249232-00 | 2 | NUT M4 | ZA | |
||
| 48 | 249416-04 | 10 | SCREW | ZA | |
||
| 49 | 080910325 | 1 | SCREW | ZA | |
||
| 50 | 743415 | 1 | WASHER | 6mm | ZA | ||
| 52 | 910556 | 1 | CABLE CLAMP | ZA | |
||
| 53 | 249416-06 | 4 | SCREW | ZA | |
||
| 54 | 080118500 | 1 | BRACKET | ZA | |
||
| 55 | 247447-00 | 1 | BRACKET | TYPE 3 | ZA | |
|
| 55 | 247447-00 | 1 | BRACKET | TYPE 2 | ZA | |
|
| 55 | 080106900 | 1 | FENCE | TYPE 1 | ZA | |
|
| 56 | 249225-00 | 1 | NUT WING | ZA | |
||
| 57 | 249221-00 | 3 | WASHER | ZA | |
||
| 58 | 860301-00 | 1 | SCREW | ZA | |
||
| 59 | 320842-03 | 1 | CAPACITOR | ZA | |
||
| 60 | 160230600 | 1 | GAUGE | ZA | |
||
| 61 | 249416-03 | 3 | SCREW | ZA | |
||
| 62 | 247556-00 | 4 | SPRING | TYPE 3 | ZA | |
|
| 62 | 247556-00 | 4 | SPRING | TYPE 2 | ZA | |
|
| 64 | 080351300 | 1 | SPANNER 10MM | ZA | |
||
| 65 | 080164507 | 1 | LEAD 255MM RED | ZA | |
||
| 67 | 080164508 | 1 | LEAD 340MM RED | ZA | |
||
| 68 | 324631-00 | 1 | INSERT | GB TYPE 3 | ZA | |
|
| 68 | 324631-00 | 1 | INSERT | DE TYPE 3 | ZA | |
