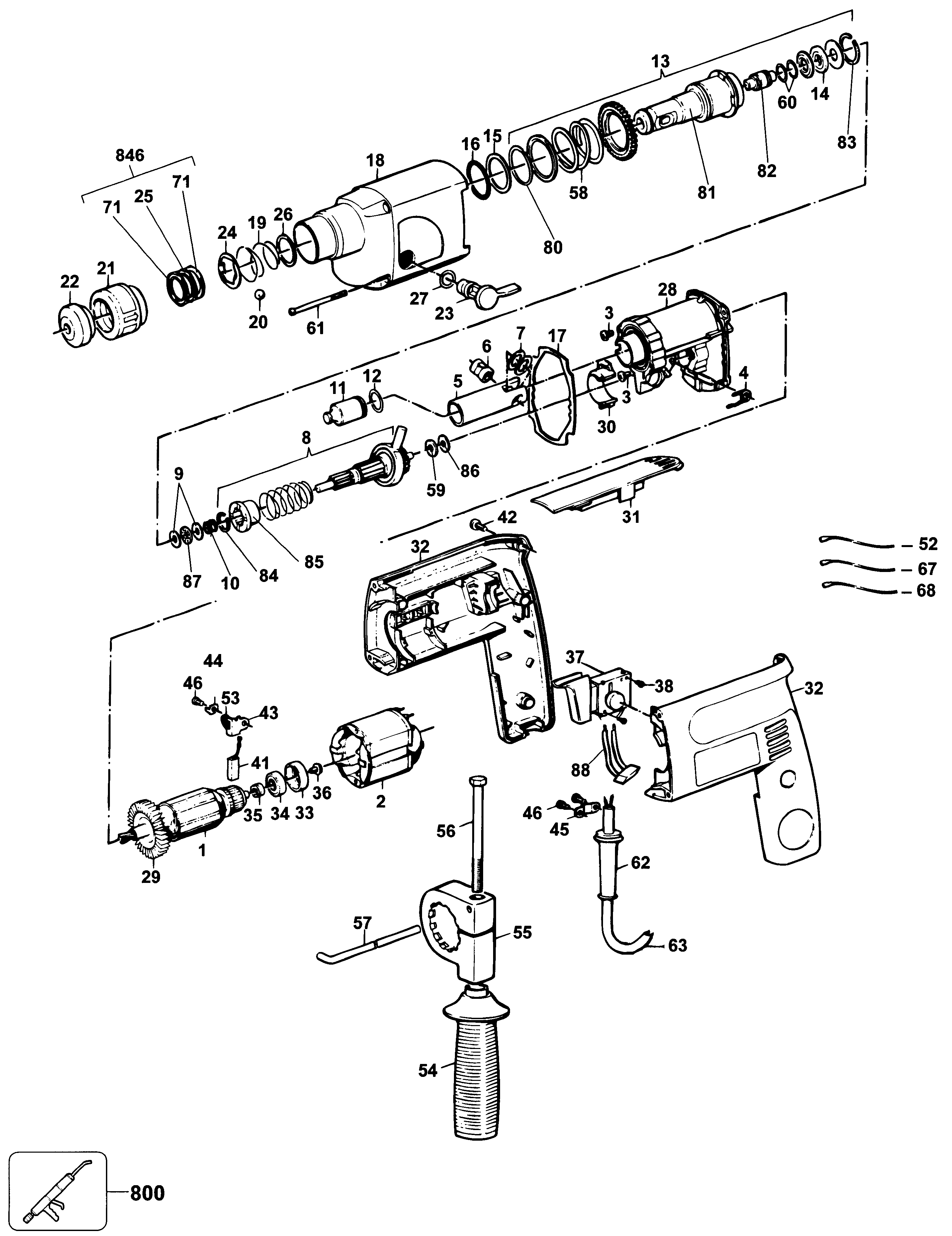

KD8000 ROTARY HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 377809-06 | 1 | ARMATURE | XD | |||
| 102 | 328961-17 | 1 | FIELD 230V | XD |  |
||
| 103 | 000000-00 | 1 | NO LONGER AVAILABLE | XD | |||
| 104 | 401853-01 | 2 | BRUSH 230V | XD | |
||
| 106 | 401845-00 | 1 | BRUSH HOLDER SA | XD |  |
||
| 108 | 327293-00 | 1 | BAFFLE FAN | XD | |
||
| 109 | 949638-01 | 2 | BUFFER | XD | |
||
| 110 | 949650-01 | 2 | SCREW | XD | |||
| 115 | 330065-06 | 2 | SCREW | XD | |
||
| 116 | 330003-19 | 1 | BEARING | XD | |
||
| 117 | 949876-25 | 1 | WASHER | XD | |
||
| 118 | 870052 | 1 | SLEEVE | XD | |
||
| 119 | 329794-00 | 1 | SCREW | XD | |
||
| 120 | 327296-00 | 1 | CAP | XD | |
||
| 122 | 330065-07 | 3 | SCREW | XD | |
||
| 123 | 930026-01 | 1 | BUMPER | XD | |
||
| 124 | 402648-00 | 1 | CORD CLAMP | XD | |
||
| 125 | 401088-01 | 1 | CORD PROTECTOR | XD | |
||
| 126 | 000000-00 | 1 | NO LONGER AVAILABLE | XD | |||
| 126 | 330048-39 | 1 | CORDSET | XD | |
||
| 127 | 949801-70 | 1 | LEAD BLUE | XD | |
||
| 128 | 949801-87 | 1 | LEAD BLUE | XD | |
||
| 128 | 949801-87 | 1 | LEAD BLUE | XD | |
||
| 136 | 327110-00 | 1 | SPACER | XD | |
||
| 137 | 324044-02 | 4 | SCREW | XD | |
||
| 138 | 323489-00 | 1 | CAP | XD | |
||
| 139 | 576756-00 | 1 | COLLAR | XD | |
||
| 140 | 323480-00 | 1 | SPACER | XD | |
||
| 141 | 323492-00 | 1 | WASHER | XD | |
||
| 142 | 578387-00 | 1 | WASHER | XD | |
||
| 143 | 871690 | 1 | SPRING | XD | |
||
| 144 | 324432-00 | 1 | SEAL SA | XD | |
||
| 146 | 329907-00 | 1 | WASHER | XD | |
||
| 147 | 870953 | 1 | BALL 7MM | XD | |||
| 148 | 325880-03 | 1 | PIN | XD | |
||
| 149 | 577080-01 | 1 | SPINDLE SA | XD | |
||
| 150 | 916323 | 1 | O RING | XD | |
||
| 151 | 327104-00 | 1 | LEVER | XD | |
||
| 152 | 323924-08 | 1 | SCREW | XD | |||
| 153 | 327092-00 | 1 | COVER | XD | |
||
| 154 | 327100-00 | 1 | CASTING SA | XD | |
||
| 155 | 328507-00 | 1 | SHIELD | XD | |
||
| 156 | 323572-00 | 1 | SEAL | XD | |
||
| 159 | 326467-00 | 1 | DETENT | XD | |
||
| 160 | 487047-49 | 1 | REPAIR KIT | XD | |
||
| 161 | 327093-00 | 1 | FILTER | XD | |
||
| 162 | N032136 | 1 | RAM SA | XD | |
||
| 163 | 577168-00 | 1 | O RING | XD | |
||
| 164 | 487143-00 | 1 | AXLE | XD | |||
| 165 | 327072-00 | 1 | SHIM | XD | |
||
| 166 | 323762-02 | 1 | CIRCLIP | XD | |
||
| 167 | 487401-00 | 1 | CLUTCH SA | XD | |
||
| 168 | 327074-00 | 1 | RING | XD | |
||
| 169 | 487067-00 | 1 | PISTON | XD | |
||
| 170 | 323395-33 | 1 | SPRING | XD | |
||
| 171 | 327101-01 | 1 | INTERSHAFT SA | XD | |
||
| 172 | 324430-03 | 1 | BEARING AXIAL | XD | |
||
| 173 | 324431-03 | 1 | WASHER 7 | XD | |
||
| 174 | 939794-02 | 1 | HANDLE SIDE SA | XD | |
||
| 175 | 580787-00 | 1 | DEPTH STOP | XD | |
||
| 176 | 323762-08 | 1 | CIRCLIP | XD | |
||
| 201 | 323711-02 | 1 | O RING | XD | |
||
| 202 | 487124-00 | 1 | BEAT PIECE | XD | |||
| 203 | 327084-00 | 1 | TUBE GUIDE | XD | |||
| 204 | N451068 | 1 | RETAINER | XD | |
||
| 205 | 327087-00 | 1 | WASHER | XD | |
||
| 206 | 323762-07 | 1 | RING | XD | |
||
| 800 | 870889-02 | 1 | GREASE | XD | |
