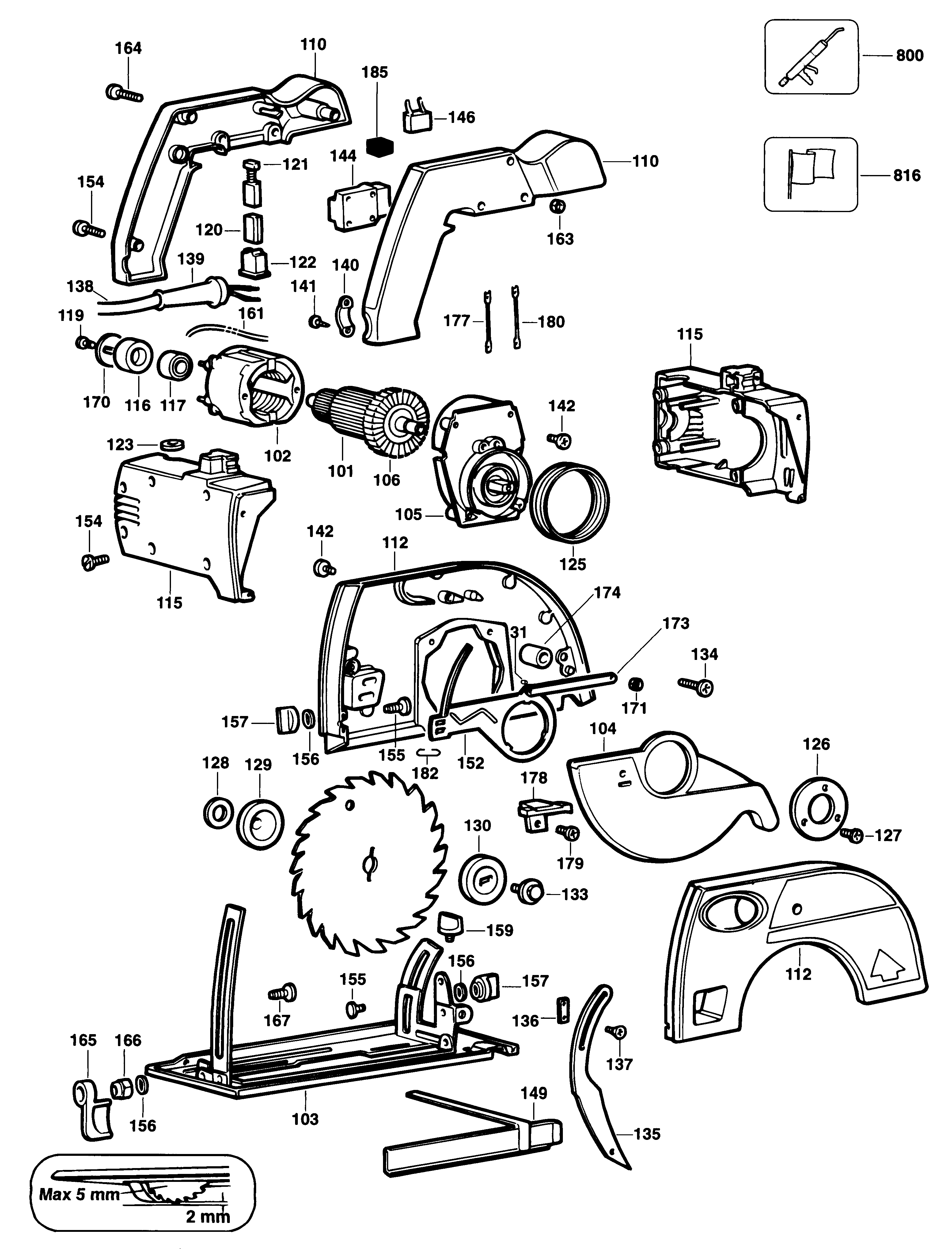

KS865 SCIE CIRCULAIRE Type 1 | Plans
Documents
Liste des pièces
Consultez le menu déroulant car certains produits disposent de plusieurs plans
Impression
Vue pleine page
| Item No. | Product Number | Qty Per | Product Description | Desig compl | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 3 | 90580830-02 | 1 | SELECTEUR | GB | |||
| 4 | 492640-05 | 1 | JEU DE COQUILLES | GB | |||
| 5 | 663302-00 | 1 | COURROIE MOTRICE | GB |  |
||
| 6 | 90577334-02 | 1 | CARTER INFERIEUR | GB | |||
| 7 | 478517-00 | 1 | BOUTON | Black | GB |  |
|
| 8 | 5170022-15 | 1 | ARBRE | GB | |||
| 13 | N691260 | 1 | BATTERIE 54 V - 2,5 AH - 135 WH | V60 - SFMCB6025-XJ | GB | ||
| 14 | N691260 | 1 | BATTERIE 54 V - 2,5 AH - 135 WH | V60 - SFMCB6025-XJ | GB | ||
| 101 | 368877-02 | 1 | S/E ARMATURE | GB | |
||
| 102 | 373008-03 | 1 | FIELD 230V | GB | |
||
| 103 | 325139-00 | 1 | S/E PATIN | GB | |
||
| 104 | 323032 | 1 | PROTECTION | GB | |
||
| 105 | 879348 | 1 | S/E PIGNON | GB | |
||
| 106 | 918909 | 1 | VENTILATEUR | GB | |
||
| 110 | 572283-00 | 1 | HANDLE | Jade Green | GB | |
|
| 112 | 325132-00 | 1 | S/E PROTECTION | GB | |
||
| 115 | 322841-00 | 1 | COQUILLE | GB | |
||
| 116 | 870052 | 1 | MANCHON | GB | |
||
| 117 | 330003-31 | 1 | PALIER | GB | |
||
| 119 | 911276 | 1 | VIS | GB | |
||
| 120 | 321337 | 2 | PORTE-BALAIS | GB | |
||
| 121 | 321338 | 2 | BRUSH SA 230V | GB | |
||
| 122 | 321328 | 2 | INSERT | GB | |
||
| 123 | 321345 | 2 | CHAPEAU DE BALAI | GB | |
||
| 125 | 914816 | 1 | RESSORT | GB | |
||
| 126 | 914632 | 1 | PLAQUE DE COUVERCLE | GB | |||
| 127 | 911246 | 3 | VIS | GB | |
||
| 128 | 910623 | 1 | RONDELLE AVANT | GB | |
||
| 129 | 911627 | 1 | BRIDE | GB | |
||
| 130 | 911795 | 1 | BRIDE | GB | |
||
| 131 | 916077 | 1 | RIVET | GB | |||
| 133 | 911760 | 1 | VIS | GB | |
||
| 134 | 324006-02 | 4 | VIS | GB | |
||
| 135 | 911653 | 1 | COUTEAU DIVISEUR | GB | |
||
| 136 | 874651 | 1 | PLAQUE | GB | |
||
| 137 | 873320 | 2 | VIS | GB | |
||
| 138 | 589164-08 | 1 | JEU DE CORDONS | GB | |
||
| 139 | 916969 | 1 | PROTECTEUR | GB | |
||
| 140 | 910556 | 1 | SERRE CABLE | GB | |
||
| 141 | 894748 | 2 | JOINT TORIQUE | GB | |
||
| 142 | 324006-00 | 3 | VIS | GB | |
||
| 144 | 322001 | 1 | INTERRUPTEUR | Lock-Off | GB | |
|
| 146 | 807285-01 | 1 | CONDENSATEUR | GB | |
||
| 149 | 321561 | 1 | BARRIERE | GB | |
||
| 152 | 325366-00 | 1 | SUPPORT | GB | |
||
| 154 | 747329 | 9 | VIS | GB | |
||
| 155 | 911353 | 2 | VIS | GB | |
||
| 156 | 330016-07 | 3 | RONDELLE AVANT | GB | |
||
| 157 | 322322 | 2 | NUT WING | GB | |
||
| 159 | 322320 | 1 | BOUTON | GB | |
||
| 161 | 321354 | 2 | LEAD 70MM | GB | |
||
| 163 | 322319 | 2 | ECROU | GB | |
||
| 164 | 322318 | 2 | VIS | GB | |
||
| 165 | 322275 | 1 | BOUTON | GB | |
||
| 166 | 870465 | 1 | COUSSINET | GB | |
||
| 167 | 911762 | 1 | VIS | GB | |
||
| 170 | 870405 | 1 | RONDELLE AVANT | GB | |
||
| 171 | 918871 | 1 | RONDELLE-FREIN | GB | |
||
| 173 | 911635 | 1 | LEVIER | GB | |
||
| 174 | 918366 | 1 | CAOUTCHOUC | GB | |
||
| 177 | 879217 | 1 | LEAD 250MM | GB | |
||
| 178 | 322462 | 1 | LOQUET | GB | |
||
| 179 | 323253 | 1 | VIS | GB | |
||
| 180 | 878846 | 1 | LEAD 360MM | GB | |
||
| 182 | 324402-00 | 1 | RESSORT | GB | |
||
| 185 | 918296 | 2 | CALE | GB | |
||
| 800 | 870889-02 | 1 | GRAISSE | GB | |
||
| 816 | 326868-00 | 1 | ETIQUETTE MARQUE | GB | |
