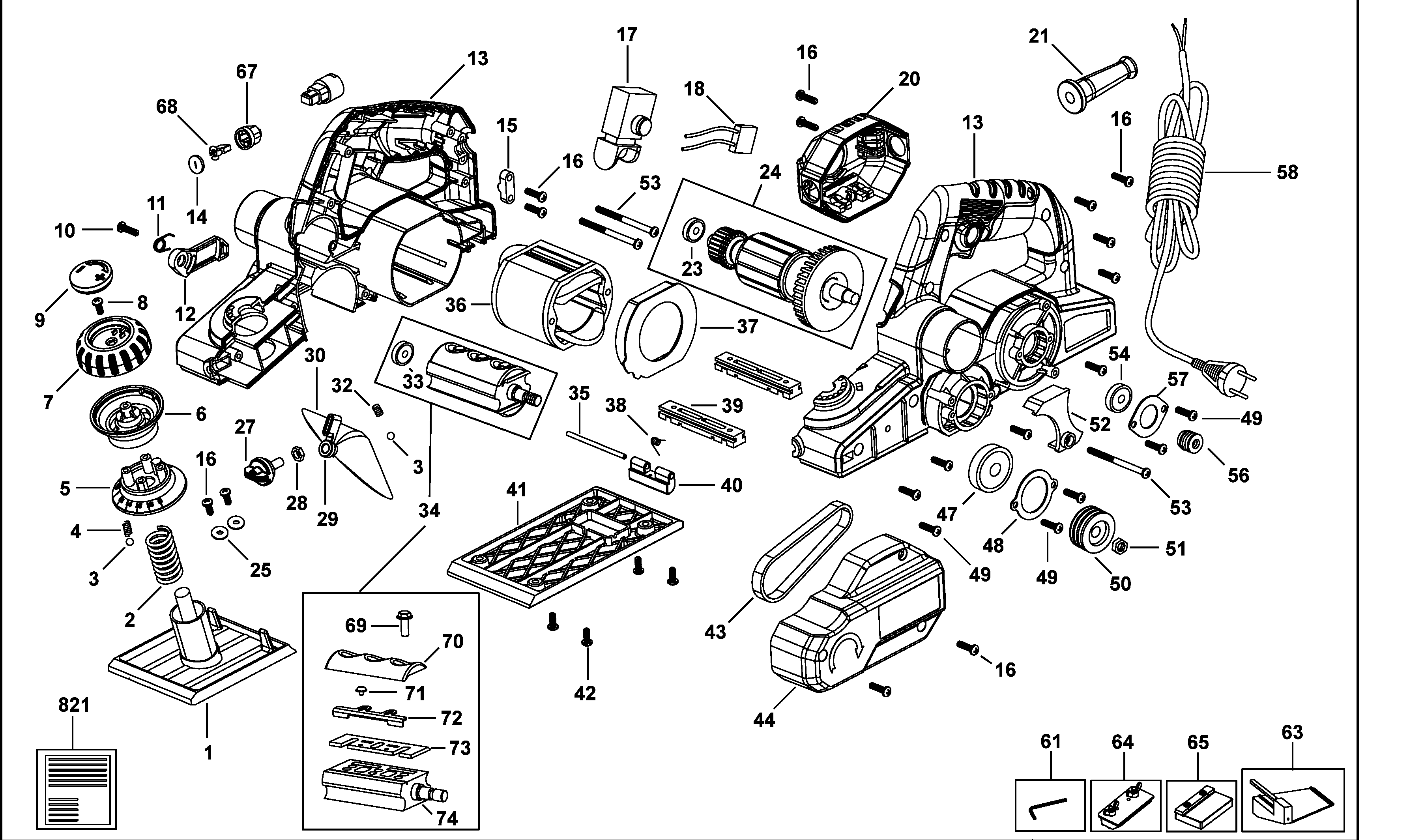

STEL630 PLANER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status | Guide Price |
|---|---|---|---|---|---|---|---|---|
| 1 | 1004526-00 | 1 | SHOE | KR | ||||
| 2 | 1004526-01 | 1 | SPRING | KR | ||||
| 3 | 1004526-02 | 2 | BALL STEEL | KR | ||||
| 4 | 1004526-03 | 1 | SPRING | KR | ||||
| 5 | 1004526-97 | 1 | DIAL PLATE | 1.6mm | KR | |||
| 6 | 1004526-05 | 1 | KNOB LOWER | KR | ||||
| 7 | 1004526-98 | 1 | COVER | KR | ||||
| 8 | 1004526-07 | 1 | SCREW | KR | ||||
| 9 | 1004526-08 | 1 | COVER | KR | ||||
| 10 | 1004526-09 | 1 | SCREW | KR | ||||
| 11 | 1004526-10 | 1 | SPRING | KR | ||||
| 12 | 1004526-11 | 1 | GUARD COVER | KR | ||||
| 13 | 5170005-86 | 1 | CLAMSHELL SA | KR | ||||
| 14 | 1004526-14 | 2 | BRUSH CAP | KR | ||||
| 15 | 1004526-17 | 1 | CORD CLAMP | KR | ||||
| 16 | 1004526-18 | 15 | SCREW | KR | ||||
| 17 | 5170005-87 | 1 | SWITCH | KR | ||||
| 18 | 1004526-21 | 1 | CAPACITOR | KR | ||||
| 20 | 1004526-23 | 1 | MOTOR COVER | KR | ||||
| 21 | 1004526-24 | 1 | CORD PROTECTOR | KR | ||||
| 23 | 1004526-26 | 1 | BEARING | KR | ||||
| 24 | 1004526-27 | 1 | ARMATURE SA | KR | ||||
| 25 | 1004526-29 | 2 | WASHER LOCK | KR | ||||
| 27 | 1004526-31 | 1 | KNOB SA | KR | ||||
| 28 | 1004526-32 | 1 | NUT M6 | KR | ||||
| 29 | 1004526-33 | 1 | LEVER | KR | ||||
| 30 | 1004526-34 | 1 | DEFLECTOR | KR | ||||
| 32 | 1004526-36 | 1 | SPRING | KR | ||||
| 33 | 1004526-37 | 1 | BEARING | KR | ||||
| 34 | 1004526-39 | 1 | BLADEDRUM SA | Incl. 33 | KR | |||
| 35 | 1004526-46 | 1 | PIN | KR | ||||
| 36 | 1004526-47 | 1 | FIELD | KR | ||||
| 37 | 1004526-49 | 1 | BAFFLE FAN | KR | ||||
| 38 | 1004526-50 | 1 | SPRING | KR | ||||
| 39 | 1004526-51 | 2 | CLAMPING BAR | KR | ||||
| 40 | 1004526-52 | 1 | STAND | KR | ||||
| 41 | 1004526-53 | 1 | SHOE | KR | ||||
| 42 | 1004526-54 | 4 | SCREW | ST4.1x10mm | KR | |||
| 43 | 1004526-55 | 1 | BELT | KR | ||||
| 44 | 1004526-56 | 1 | COVER BELT | KR | ||||
| 47 | 1004526-59 | 1 | BEARING | KR | ||||
| 48 | 1004526-60 | 1 | BEARING PLATE | KR | ||||
| 49 | 1004578-00 | 5 | SCREW | ST4.1x10MM | KR | |||
| 50 | 1004526-62 | 1 | WHEEL LARGE | KR | ||||
| 51 | 1004526-63 | 1 | NUT | KR | ||||
| 52 | 1004526-64 | 1 | BAFFLE | KR | ||||
| 53 | 1004526-65 | 3 | SCREW | KR | ||||
| 54 | 1004526-66 | 1 | BEARING | KR | ||||
| 56 | 1004526-68 | 1 | WHEEL DRIVING | KR | ||||
| 57 | 1004526-69 | 1 | BEARING PLATE | KR | ||||
| 58 | 1004579-00 | 1 | CORDSET | KR | ||||
| 61 | 1004526-77 | 1 | SPANNER | KR | ||||
| 63 | 1004526-80 | 1 | FENCE | Inc. 1 Washer & Knob | KR | |||
| 64 | 1004526-87 | 1 | ADJUSTER BLOCK | KR | ||||
| 65 | 1004526-86 | 1 | SUPPORT PLATE | KR | ||||
| 67 | 1004526-15 | 2 | BRUSH HOLDER | KR | ||||
| 68 | 1004526-16 | 1 | BRUSH PAIR | KR | ||||
| 69 | 1004526-40 | 6 | SCREW | KR | ||||
| 70 | 1004526-41 | 2 | BLADE CLAMP | KR | ||||
| 71 | 1004526-42 | 4 | SCREW | KR | ||||
| 72 | 1004526-43 | 2 | SUPPORT | KR | ||||
| 73 | 1004526-44 | 2 | BLADE | KR | ||||
| 74 | 1004526-45 | 1 | CUTTER BLOCK | KR | ||||
| 821 | 5170005-89 | 1 | RATING PLATE | KR |
