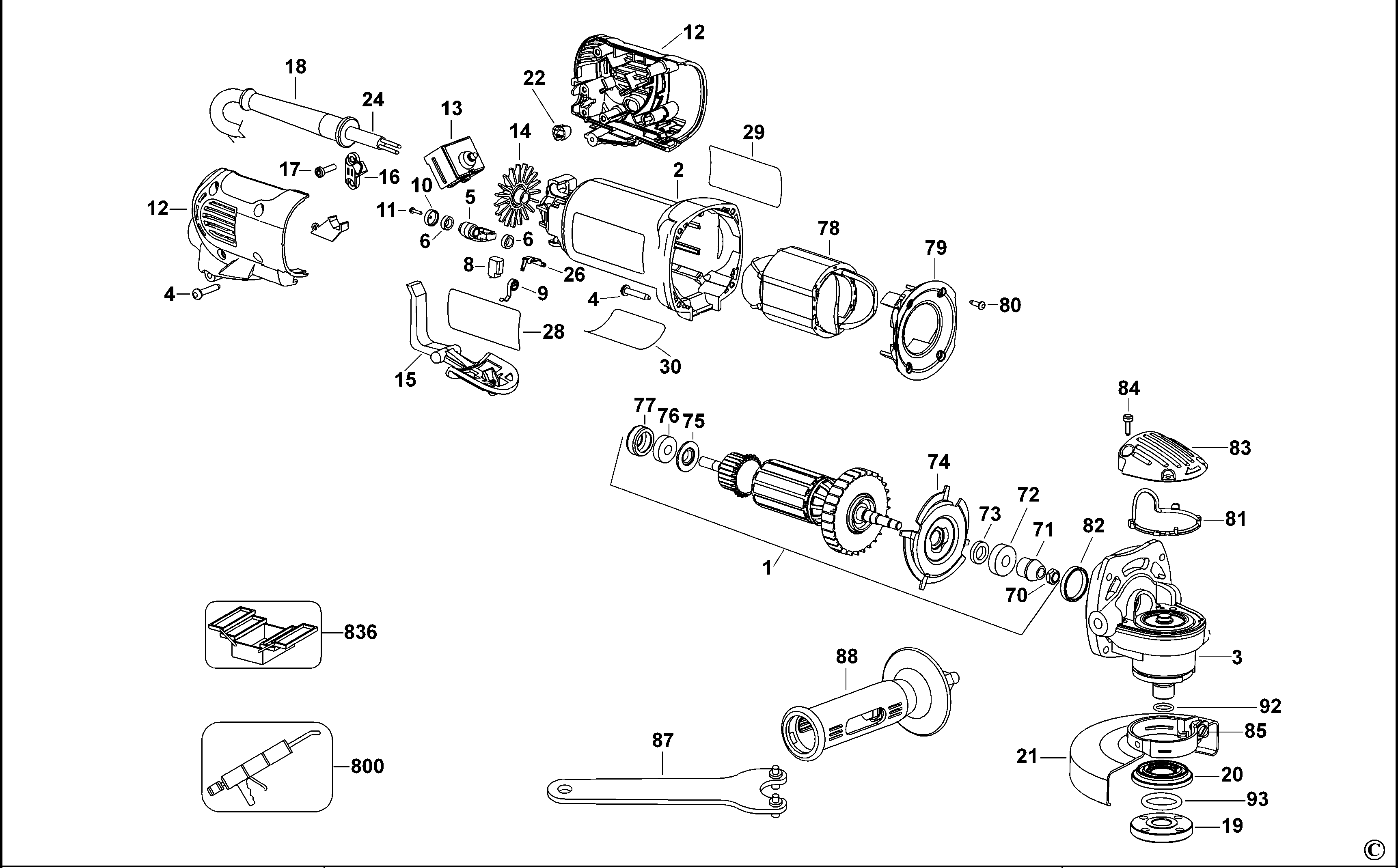

D28143 SMALL ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 623584-17 | 1 | ARMATURE 230V | B5 |  |
||
| 2 | 625242-24 | 1 | FIELDCASE | B5 |  |
||
| 3 | N015541 | 1 | GEARCASE SA | M14 - Warm Compact | B5 | |
|
| 4 | 330065-31 | 8 | PLASTIC SCREW | B5 | |
||
| 5 | 648743-00 | 1 | ARM | BRUSH | B5 | |
|
| 6 | 623592-00 | 4 | FELT SEAL | B5 | |
||
| 8 | 650916-03 | 2 | BRUSH CUT OFF | 230V POP OFF | B5 | |
|
| 9 | 623589-00 | 2 | BRUSH SPRING | B5 | |
||
| 10 | 623591-00 | 2 | BRUSH CAP | B5 | |
||
| 11 | 593685-00 | 2 | SCREW | M1.8x8 THD FRMG | B5 | |
|
| 12 | 623576-01 | 1 | HANDLE SA | B5 | |
||
| 13 | 945614-02 | 1 | SWITCH | B5 | |
||
| 14 | N055787 | 1 | SEPARATOR | Particle | B5 | |
|
| 15 | 623619-00 | 1 | PADDLE | B5 | |
||
| 16 | 626006-01 | 1 | CORD CLAMP | Paddle | B5 | |
|
| 17 | 330019-03 | 2 | SCREW | B5 | |
||
| 18 | N542553 | 1 | CORD PROTECTOR | B5 | |
||
| 18 | N542553 | 1 | CORD PROTECTOR | B5 | |
||
| 19 | 622613-02 | 1 | OUTER FLANGE | M14 | B5 | |
|
| 20 | 633257-00SV | 1 | INNER FLANGE SA | B5 | |
||
| 21 | 629358-00 | 1 | GUARD SA | B5 | |
||
| 22 | 625415-01 | 1 | PLUG | Lock-on | B5 | |
|
| 24 | 562161-37 | 1 | CORDSET | B5 | |
||
| 26 | 623593-00 | 2 | TERMINAL | B5 | |
||
| 28 | 660682-00 | 1 | RATING PLATE | D28143-B5 TY1 | B5 | |
|
| 29 | 628885-00 | 1 | BRAND LABEL | B5 | |
||
| 30 | 626891-00 | 1 | WARNING LABEL | B5 | |
||
| 70 | 604484-00 | 1 | NUT | B5 | |
||
| 71 | 623564-00 | 1 | PINION | 9 TOOTH | B5 | |
|
| 72 | 605040-11 | 1 | BEARING,BALL | 608 (8 x 22 x 7) | B5 | |
|
| 73 | 623617-00 | 1 | FELT SEAL | B5 | |
||
| 74 | N422242 | 1 | RETAINER | B5 | |
||
| 75 | 623613-00 | 1 | WASHER | B5 | |
||
| 76 | 605040-02 | 1 | BEARING | B5 | |
||
| 77 | 641823-00 | 1 | SLEEVE | B5 | |
||
| 78 | 624764-18 | 1 | FIELD 230V | B5 | |
||
| 79 | 650997-00 | 1 | BAFFLE FAN | B5 | |
||
| 80 | 330065-25 | 4 | SCREW | B5 | |
||
| 81 | 623618-00 | 1 | GASKET | B5 | |
||
| 82 | 611492-00 | 1 | SLEEVE | B5 | |
||
| 83 | 623562-00 | 1 | GEARCASE COVER | B5 | |
||
| 84 | 385676-01 | 4 | SCREW | B5 | |
||
| 85 | 631609-02 | 1 | SCREW | M5x16 SPECIAL | B5 | |
|
| 87 | 401680-00 | 1 | WRENCH | B5 | |
||
| 88 | 614796-00 | 1 | SIDE HANDLE | ANTI-VIB. | B5 | |
|
| 92 | 633045-00 | 1 | O RING | 9.19x2.62 | B5 | |
|
| 93 | 633043-00 | 1 | O RING | 20.5x2.4 | B5 | |
|
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | B5 | |
|
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | B5 | |
|
| 836 | 233804-36 | 1 | DRIVER | T6 | B5 | |
|
| 861 | 638758-00 | 1 | KITBOX | B5 | |
