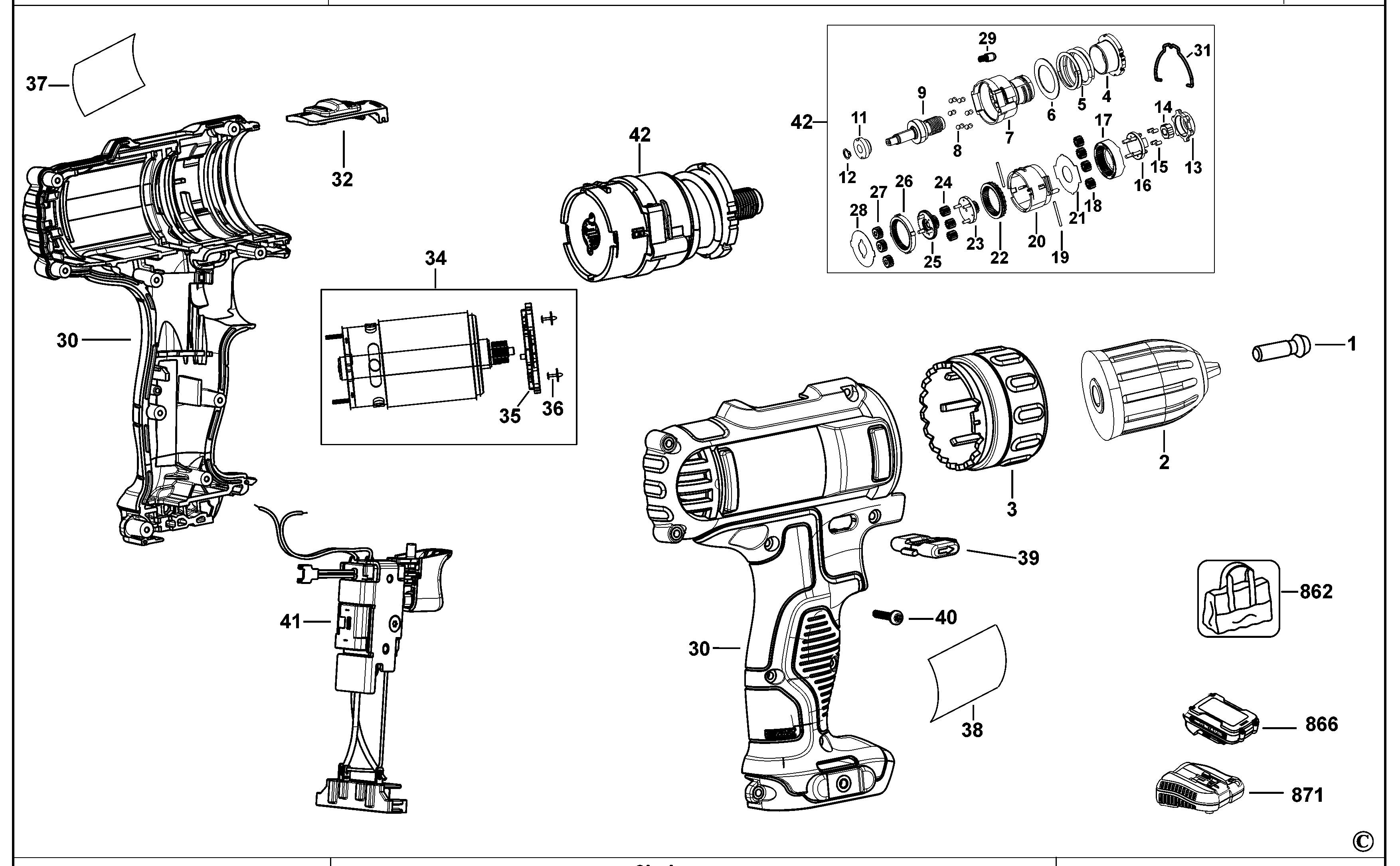

DCD700 CORDLESS DRILL Type 4 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N303381 | 1 | SCREW | ZA |  |
||
| 2 | N349519 | 1 | CHUCK KEYLESS | ZA |  |
||
| 3 | N034293 | 1 | COLLAR | ZA | |
||
| 4 | N294616 | 1 | COLLAR | ZA | |
||
| 5 | N294617 | 1 | SPRING | ZA | |
||
| 6 | N032524 | 1 | WASHER | ZA | |
||
| 7 | N294618 | 1 | HOUSING | ZA | |
||
| 8 | 604107-00 | 12 | BALL STEEL | ZA | |
||
| 9 | N078596 | 1 | SPINDLE SA | ZA | |
||
| 11 | N032761 | 1 | SLEEVE BEARING | ZA | |
||
| 12 | N034090 | 1 | RETAINER | ZA | |
||
| 13 | N032377 | 1 | LOCKING DEVICE | ZA | |
||
| 14 | N054706 | 1 | ANVIL | ZA | |
||
| 15 | N042040 | 4 | ROLLER | ZA | |
||
| 16 | N079008 | 1 | CARRIER SA | 3RD RED | ZA | |
|
| 17 | N388224 | 1 | GEAR | ZA | |
||
| 18 | N030759 | 4 | GEAR | ZA | |
||
| 19 | N030767 | 2 | PIN | ZA | |
||
| 20 | N030766 | 1 | HOUSING REAR | ZA | |
||
| 21 | N030761 | 1 | PLATE | ZA | |
||
| 22 | N079010 | 1 | GEAR | ZA | |
||
| 23 | N079016 | 1 | CARRIER SA | ZA | |
||
| 24 | N030765 | 3 | GEAR | ZA | |
||
| 25 | N079017 | 1 | CARRIER SA | ZA | |
||
| 26 | N079018 | 1 | GEAR | ZA | |
||
| 27 | N017243 | 3 | GEAR | ZA | |
||
| 28 | N034093 | 1 | PLATE | ZA | |
||
| 29 | 326467-00 | 1 | DETENT | ZA | |
||
| 30 | N338679 | 1 | CLAMSHELL SET | ZA | |
||
| 31 | N037108 | 1 | WIRE STEEL | ZA | |
||
| 32 | N037111 | 1 | SELECTOR | ZA | |
||
| 34 | N075847 | 1 | MOTOR SA | ZA | |||
| 35 | N034382 | 1 | PLATE | ZA | |||
| 36 | 330024-54 | 2 | SCREW | ZA | |
||
| 37 | N117821 | 1 | BRAND LABEL | ZA | |
||
| 38 | N376083 | 1 | RATING LABEL | ZA | |||
| 39 | N017247 | 1 | ACTUATOR FWD/REV | ZA | |
||
| 40 | N329340 | 9 | SCREW | ZA | |
||
| 41 | N319241 | 1 | SWITCH SA | ZA | |
||
| 42 | N392103 | 1 | TRANSMISSION SA | ZA | |
||
| 862 | N379882 | 1 | BAG | ZA | |
||
| 866 | N408440 | 1 | BATTERY 12V - 2.0AH | DCB127-B5-ZA 12V | DCD700C2-D2 | ZA | |
