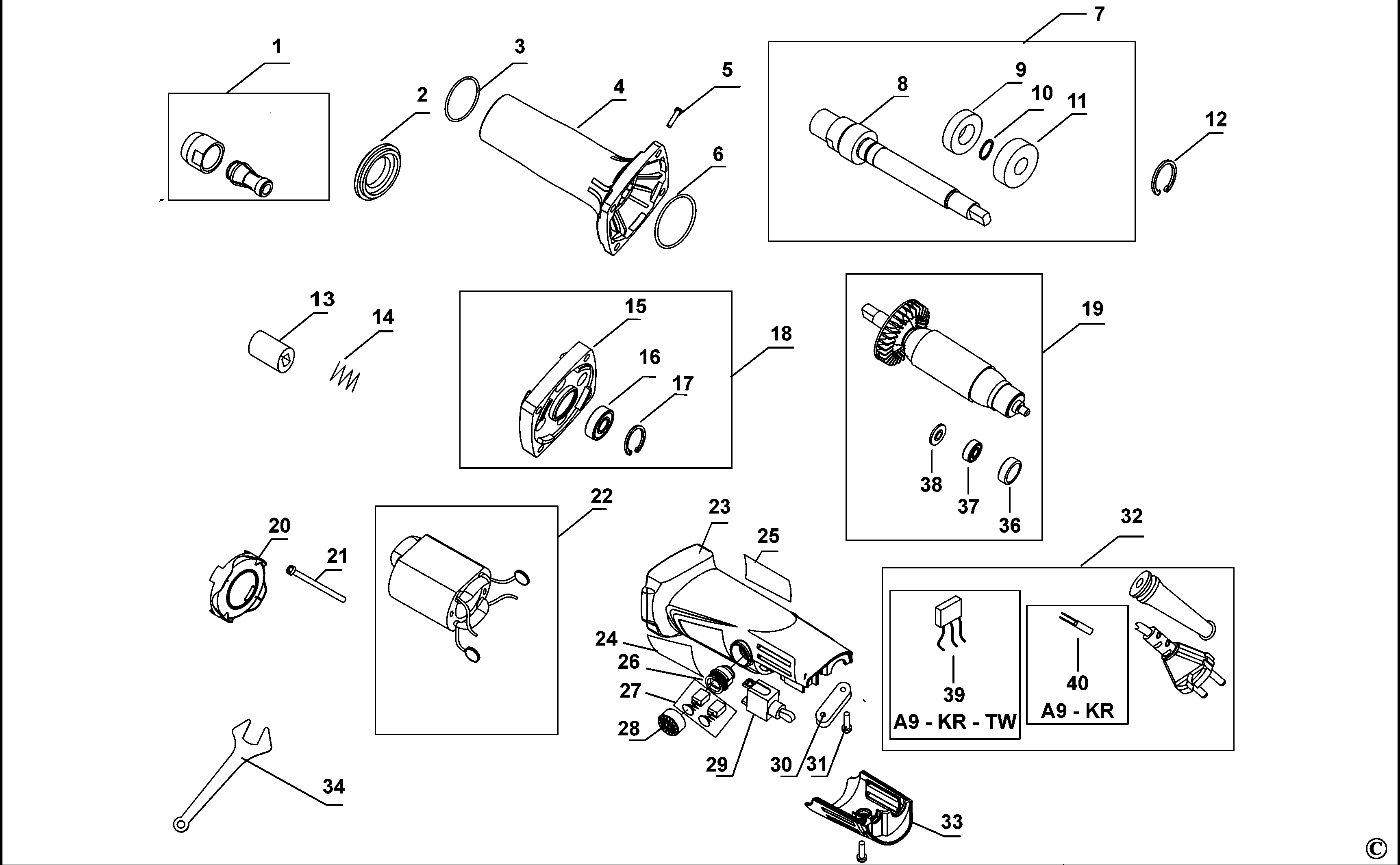

STEL861 DIE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90593441 | 1 | CHUCK SA | XD |  |
||
| 2 | 90593469 | 1 | CLAMP | XD | |
||
| 3 | 90593470 | 1 | O RING | XD | |
||
| 4 | 90593471 | 1 | HOUSING FRONT | XD | |
||
| 5 | 90593472 | 4 | SCREW | XD |  |
||
| 6 | 90593473 | 1 | O RING | XD | |
||
| 7 | 90593474 | 1 | SPINDLE SA | XD | |
||
| 8 | 90593475 | 1 | SPINDLE | XD | |
||
| 9 | 90593476 | 1 | BEARING,BALL | XD | |
||
| 10 | 90593477 | 1 | CIRCLIP | F12 | XD | |
|
| 11 | 90593478 | 1 | BEARING,BALL | 6000-2Z | XD | |
|
| 12 | 90593479 | 1 | CIRCLIP | XD | |
||
| 13 | 90593480 | 1 | CONNECTOR | XD | |
||
| 14 | 90593481 | 1 | SPRING | XD | |
||
| 15 | 90593482 | 1 | COVER | XD | |
||
| 16 | 90593483 | 1 | BEARING,BALL | XD | |
||
| 17 | 90593484 | 1 | CIRCLIP | XD | |
||
| 18 | 90593485 | 1 | COVER SA | XD | |
||
| 19 | 90593486 | 1 | ARMATURE SA | XD | |
||
| 20 | 90593487 | 1 | FAN | XD | |
||
| 21 | 90593488 | 1 | SCREW | XD | |
||
| 22 | 90593489 | 1 | FIELD SA | XD | |
||
| 23 | 90593490 | 1 | HOUSING MOTOR | XD | |
||
| 24 | 90599736 | 1 | RATING LABEL | XD | |||
| 25 | 90593492 | 1 | IDENTITY LABEL | XD | |
||
| 26 | 90593493 | 2 | BRUSH HOLDER | XD | |
||
| 27 | 90593494 | 1 | BRUSH PAIR | XD | |
||
| 28 | 90593495 | 2 | BRUSH COVER | XD | |
||
| 29 | 90593496 | 1 | SWITCH | HUA JIE | XD | |
|
| 30 | 90593497 | 1 | CLAMP | XD | |
||
| 31 | 90593498 | 3 | SCREW | XD | |
||
| 32 | 90602256 | 1 | CORDSET | XD | |||
| 33 | 90593500 | 1 | COVER REAR | XD | |
||
| 34 | 90593501 | 2 | SPANNER | XD | |
||
| 36 | 90604394 | 1 | SLEEVE BEARING | XD | |||
| 37 | 90604395 | 1 | BEARING | XD | |||
| 38 | 90604396 | 1 | SHIELD | XD |
