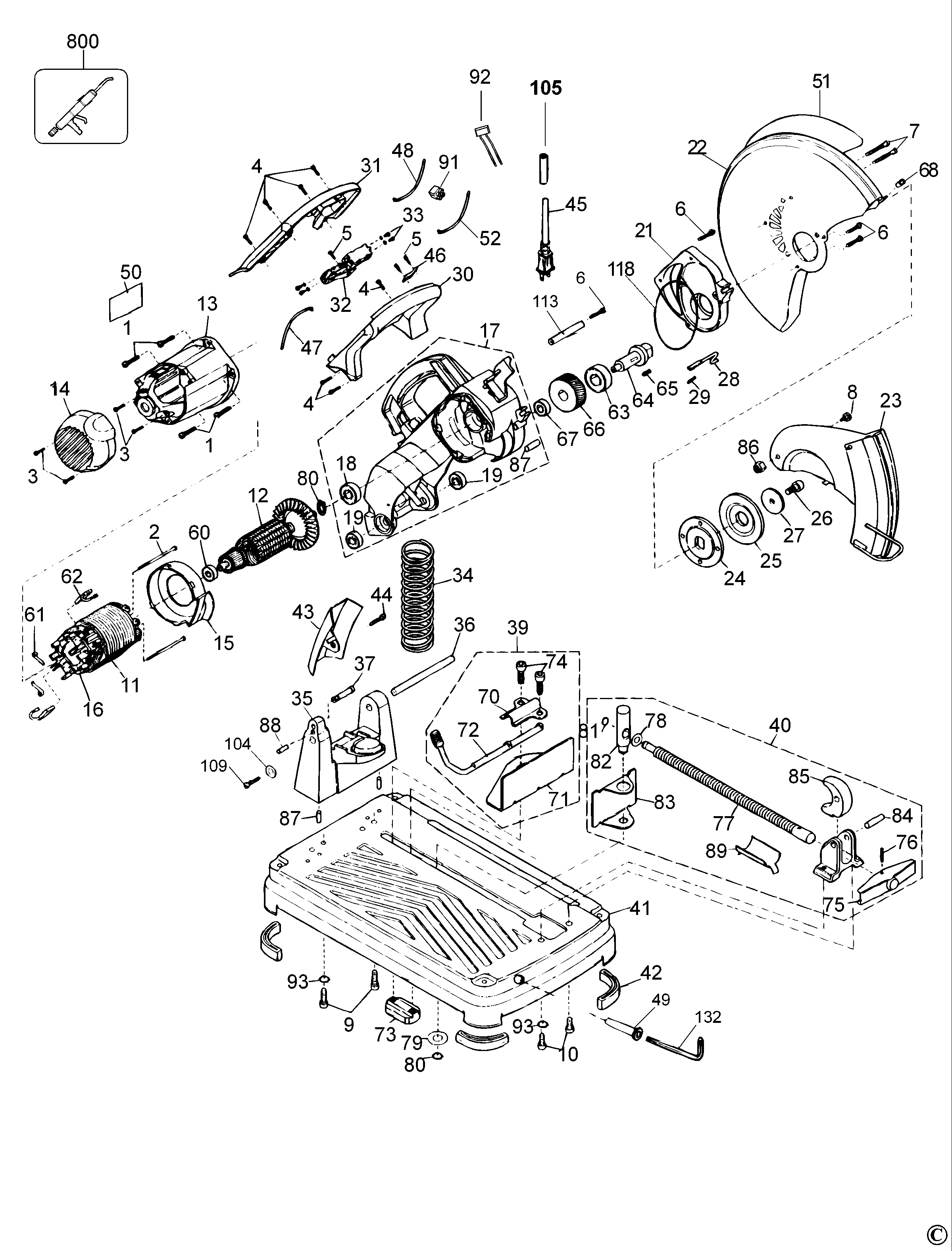

DW871 CHOP SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 330045-16 | 4 | SCREW | B4 |  |
||
| 2 | 330019-33 | 2 | SCREW | B4 | |
||
| 3 | 330019-13 | 4 | SCREW | M4X19 T20 | B4 | |
|
| 4 | 330019-14 | 7 | SCREW | B4 | |
||
| 5 | 330019-02 | 3 | SCREW | B4 | |
||
| 6 | 330045-17 | 3 | SCREW | M5x30 MTL THD FMG | B4 |  |
|
| 7 | 330045-20 | 2 | SCREW | M5*45 T25 | B4 | |
|
| 8 | 384844-00 | 1 | SCREW SPECIAL | B4 | |
||
| 9 | 098123-25 | 2 | SCREW | B4 | |
||
| 10 | 098123-16 | 2 | SCREW | B4 | |
||
| 11 | 624158-00 | 1 | FIELD 115V | B4 | |
||
| 12 | 383652-08 | 1 | ARMATURE 115V | B4 | |
||
| 13 | 383151-00 | 1 | FIELDCASE SA | B4 | |
||
| 14 | 383155-00 | 1 | END CAP | B4 | |
||
| 15 | 383167-00 | 1 | BAFFLE FAN | B4 | |
||
| 16 | 383685-00 | 1 | BRUSH PLATE SA | B4 | |
||
| 17 | 386628-00 | 1 | GEARCASE SA | B4 | |
||
| 18 | 868768-07 | 1 | BEARING | B4 | |
||
| 19 | 330003-64 | 1 | BEARING | ID 12 x OD 28 x 8mm | B4 | |
|
| 21 | 383158-00 | 1 | GEARCASE COVER SA | B4 | |
||
| 22 | 386527-02 | 1 | GUARD SA | B4 | |
||
| 23 | 383175-00 | 1 | GUARD COVER | B4 | |
||
| 24 | 607173-00 | 1 | INNER FLANGE | B4 | |
||
| 25 | 382884-00 | 1 | CLAMP OUTER | B4 | |||
| 26 | 383286-00 | 1 | SCREW | B4 | |
||
| 27 | 383246-00 | 1 | WASHER | B4 | |
||
| 28 | 383966-00 | 1 | LOCKING PIN | B4 | |
||
| 29 | 384716-00 | 1 | SPRING | B4 | |
||
| 30 | 383159-01 | 1 | HANDLE HALF | B4 | |
||
| 31 | 383160-00 | 1 | HANDLE COVER | B4 | |
||
| 32 | 621514-01 | 1 | SERVICE KIT | B4 | |||
| 33 | 384127-01 | 4 | SCREW | B4 | |
||
| 34 | 387282-00 | 1 | SPRING | B4 | |
||
| 35 | 383168-00 | 1 | PIVOT BLOCK | B4 | |
||
| 36 | 383118-00 | 1 | PIN | B4 | |
||
| 37 | 383148-00 | 1 | LOCKING PIN | B4 | |
||
| 39 | 384137-00 | 1 | FENCE SA | B4 | |
||
| 40 | N510986 | 1 | VICE JAW | B4 | |
||
| 40 | 384180-00 | 1 | VICE | B4 | |
||
| 41 | 382366-00 | 1 | BASE | B4 | |
||
| 42 | 383243-00 | 4 | FOOT | B4 | |
||
| 43 | 384159-00 | 1 | DEFLECTOR | B4 | |
||
| 44 | 330045-23 | 1 | SCREW | B4 | |
||
| 45 | 386117-00 | 1 | CABLE | B4 | |
||
| 46 | 386540-00 | 1 | CORD CLAMP | B4 | |
||
| 47 | 384762-00 | 1 | LEAD | B4 | |||
| 48 | 386515-00 | 1 | LEAD | B4 | |||
| 49 | 386765-00 | 1 | HOLDER TOOL | B4 | |
||
| 51 | 384771-00 | 1 | LABEL | B4 | |
||
| 60 | 330003-17 | 1 | BEARING | B4 | |||
| 61 | 384612-00 | 2 | SPRING | B4 | |
||
| 62 | 384613-00 | 2 | BRUSH 120V | B4 | |
||
| 63 | 330003-49 | 1 | BEARING | B4 | |
||
| 64 | 382882-00 | 1 | SPINDLE | B4 | |
||
| 65 | 382675-00 | 1 | KEY | B4 | |
||
| 66 | 386277-00 | 1 | GEAR | B4 | |
||
| 67 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | B4 | |
|
| 68 | 386526-00 | 1 | STOP RUBBER | B4 | |
||
| 70 | 383253-00 | 1 | CLAMP | B4 | |
||
| 71 | 382677-00 | 1 | FENCE | B4 | |
||
| 72 | 382540-00 | 1 | LEVER | B4 | |
||
| 73 | 383254-00 | 1 | BLOCK | B4 | |
||
| 74 | 383450-00 | 2 | SCREW | B4 | |
||
| 75 | 383252-00 | 1 | LOCK HANDLE | B4 | |
||
| 76 | 330036-08 | 1 | PIN | B4 | |
||
| 77 | 395856-00 | 1 | ROD | B4 | |
||
| 78 | 384365-00 | 1 | WASHER | B4 | |
||
| 79 | 607592-00 | 1 | WASHER | B4 | |
||
| 80 | 144803-00 | 2 | CIRCLIP | B4 | |
||
| 81 | 383169-00 | 1 | CIRCLIP | B4 | |
||
| 82 | 5140000-11 | 1 | PIN | & RETAINING RING | B4 | |
|
| 83 | 607278-00 | 1 | VICE JAW | B4 | |
||
| 84 | 386525-01 | 1 | DOWEL | B4 | |
||
| 85 | 383828-00 | 1 | LOCKING DEVICE | B4 | |
||
| 86 | 148641-00 | 1 | LOCK-NUT | B4 | |
||
| 87 | 386525-00 | 5 | DOWEL | B4 | |
||
| 88 | 033055-00 | 1 | PLUG | B4 | |
||
| 89 | 383451-00 | 1 | SADDLE | B4 | |
||
| 92 | 93585-11 | 1 | CAPACITOR | GB 115V | B4 | |
|
| 93 | 098197-09 | 4 | WASHER | B4 | |
||
| 104 | 388354-00 | 1 | WASHER | B4 | |
||
| 105 | 386491-00 | 1 | SLEEVE | B4 | |
||
| 109 | 330045-49 | 1 | SCREW | B4 | |
||
| 113 | 391740-00 | 1 | SPACER | B4 | |
||
| 118 | 391485-00 | 1 | O RING | B4 | |
||
| 132 | 384717-00 | 1 | WRENCH | B4 | |
||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | B4 | |
