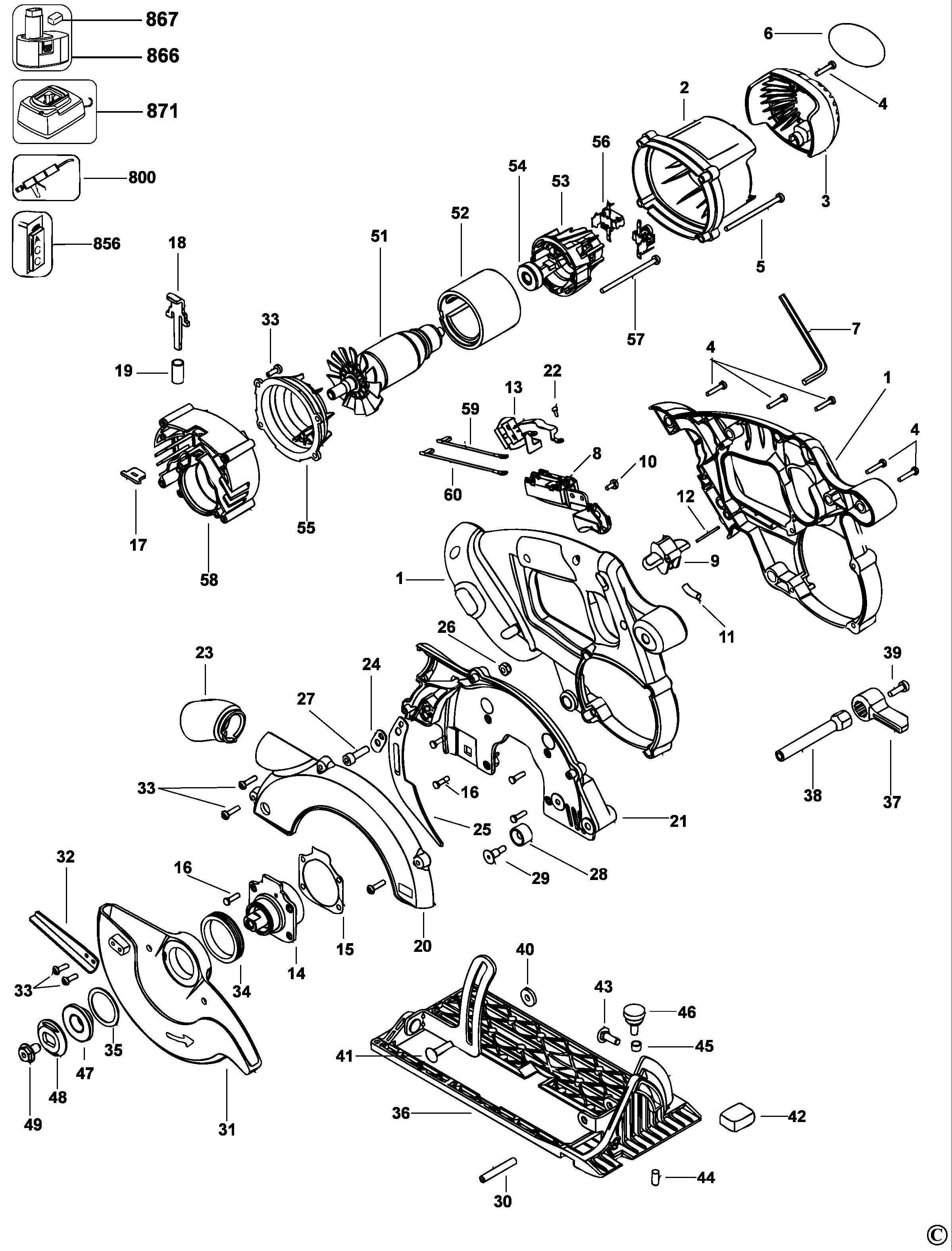

DC390 CIRCULAR SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 650666-00 | 1 | CLAMSHELL SET | Handle set NANO 18 V | DC390KL | GB |  |
| 1 | 605059-00 | 1 | CLAMSHELL SET | HOUSING ASSY. | DC390KA - DC390KB | GB | |
| 2 | 605062-00 | 1 | MOTOR COVER | GB | |
||
| 3 | 605063-00 | 1 | END CAP | GB | |
||
| 4 | 90611830 | 8 | SCREW | GB |  |
||
| 5 | 398987-00 | 4 | SCREW | GB | |
||
| 6 | 619339-00 | 1 | IDENTITY LABEL | GB | |||
| 7 | 098000-11 | 1 | HEX KEY | GB | |
||
| 8 | 613275-00 | 1 | SWITCH | GB | |
||
| 9 | 605107-00 | 1 | BUTTON LOCK-OFF | GB | |
||
| 10 | 330019-40 | 1 | SCREW | GB | |
||
| 11 | 389120-00 | 1 | SPRING | GB | |
||
| 12 | 388531-00 | 1 | PIN | GB | |
||
| 13 | 620354-00 | 1 | PCB SA | WITH LEADS | GB | |
|
| 14 | 608516-00 | 1 | SPINDLE SA | OUTPUT SPINDLE ASSY. | GB | |
|
| 15 | 605081-01 | 1 | GASKET | GB | |
||
| 16 | 613783-00 | 8 | SCREW | GB | |
||
| 17 | 605094-00 | 1 | WIPER | GB | |
||
| 18 | 629444-00 | 1 | SPINDLE LOCK | GB | |
||
| 19 | 58698-00 | 1 | SPRING | GB | |
||
| 20 | 614674-00 | 1 | GUARD UPPER | GB | |
||
| 21 | 610085-00 | 1 | GUARD SA | ASSEMBLY HALF | GB | |
|
| 22 | 384127-01 | 4 | SCREW | GB | |
||
| 23 | 391229-00 | 1 | CHUTE | GB | |
||
| 24 | 391219-00 | 1 | RETAINING PLATE | GB | |
||
| 25 | 613394-00 | 1 | RIVING KNIFE | GB | |||
| 26 | 330021-01 | 1 | NUT | GB | |
||
| 27 | 391854-00 | 1 | SCREW | GB | |
||
| 28 | 389132-00 | 1 | BUMPER | GB | |||
| 29 | 610134-00 | 1 | SCREW | GB | |
||
| 30 | 614048-00 | 1 | SPIROL PIN | GB | |
||
| 31 | 610087-00 | 1 | GUARD LOWER | GB | |
||
| 32 | 610088-00 | 1 | LEVER | GB | |||
| 33 | 330045-45 | 9 | SCREW | GB | |
||
| 34 | 604915-00 | 1 | SPRING | GB | |
||
| 35 | 150383-00 | 1 | RETAINER | GB | |
||
| 36 | 608511-00SV | 1 | SHOE SA | GB | |
||
| 37 | 605105-00 | 1 | LEVER | GB | |
||
| 38 | 618901-00 | 1 | SHAFT | GB | |
||
| 39 | 330045-14 | 1 | SCREW | GB | |
||
| 40 | 142013-00 | 1 | WASHER | GB | |
||
| 41 | 098128-85 | 1 | CARRIAGE BOLT | GB | |
||
| 42 | 395889-00 | 1 | KNOB | GB | |
||
| 43 | N022876 | 1 | CARRIAGE BOLT | M6x1.0x25 NYLOCK | GB | |
|
| 44 | 381069-00 | 1 | SCREW | GB | |
||
| 45 | 058287-00 | 1 | SPRING | GB | |
||
| 46 | 55005-00 | 1 | SCREW | GB | |||
| 47 | 610046-00 | 1 | WASHER INNER CLAMP | GB | |
||
| 48 | N621119 | 1 | WASHER OUTER CLAMP | GB | |
||
| 49 | 648717-00 | 1 | BLADE BOLT | GB | |
||
| 51 | 608507-00SV | 1 | ARMATURE SA | GB | |
||
| 52 | 611202-00SV | 1 | MAGNET | GB | |
||
| 53 | N171820 | 1 | SUPPORT BEARING | GB | |
||
| 54 | 391032-00 | 1 | BEARING & SEAL | GB | |
||
| 55 | 610124-00 | 1 | BAFFLE | GB | |
||
| 56 | 610126-00 | 2 | BRUSHBOX SA | GB | |
||
| 57 | 330019-25 | 2 | SCREW | GB | |
||
| 58 | 614903-00 | 1 | GEARCASE SA | INCL. BEARINGS | GB | |
|
| 59 | N178281 | 1 | LEAD BROWN | BROWN with EMI bead | GB | |
|
| 59 | N179181 | 1 | LEAD PURPLE | PURPLE with EMI bead | GB | |
|
| 60 | 605109-00 | 1 | LEAD PURPLE | PURPLE | GB | |
|
| 60 | N178281 | 1 | LEAD BROWN | BROWN with EMI bead | GB | |
|
| 800 | 870889-02 | 1 | GREASE | GB | |
||
| 856 | 249226-00 | 1 | FENCE | metric markings | GB | |
|
| 866 | 1006628-00 | 1 | BATTERY 18V - 2.6AH | DC390KB | GB | |
|
| 866 | 582627-00 | 1 | BATTERY 18V - 2.4AH | DC390KA | GB | |
|
| 866 | N425667 | 1 | BATTERY 18V - 2.0AH - 36WH | DC390KL | GB | |
|
| 867 | 608522-00 | 1 | SAFETY CAP | GB | |
||
| 871 | 572576-00 | 1 | CHARGER 7.2V - 18V | DC390KA - DC390KB | GB | |
|
| 871 | N015877 | 1 | CHARGER 7.2V - 18V | DC390KL | GB | |
