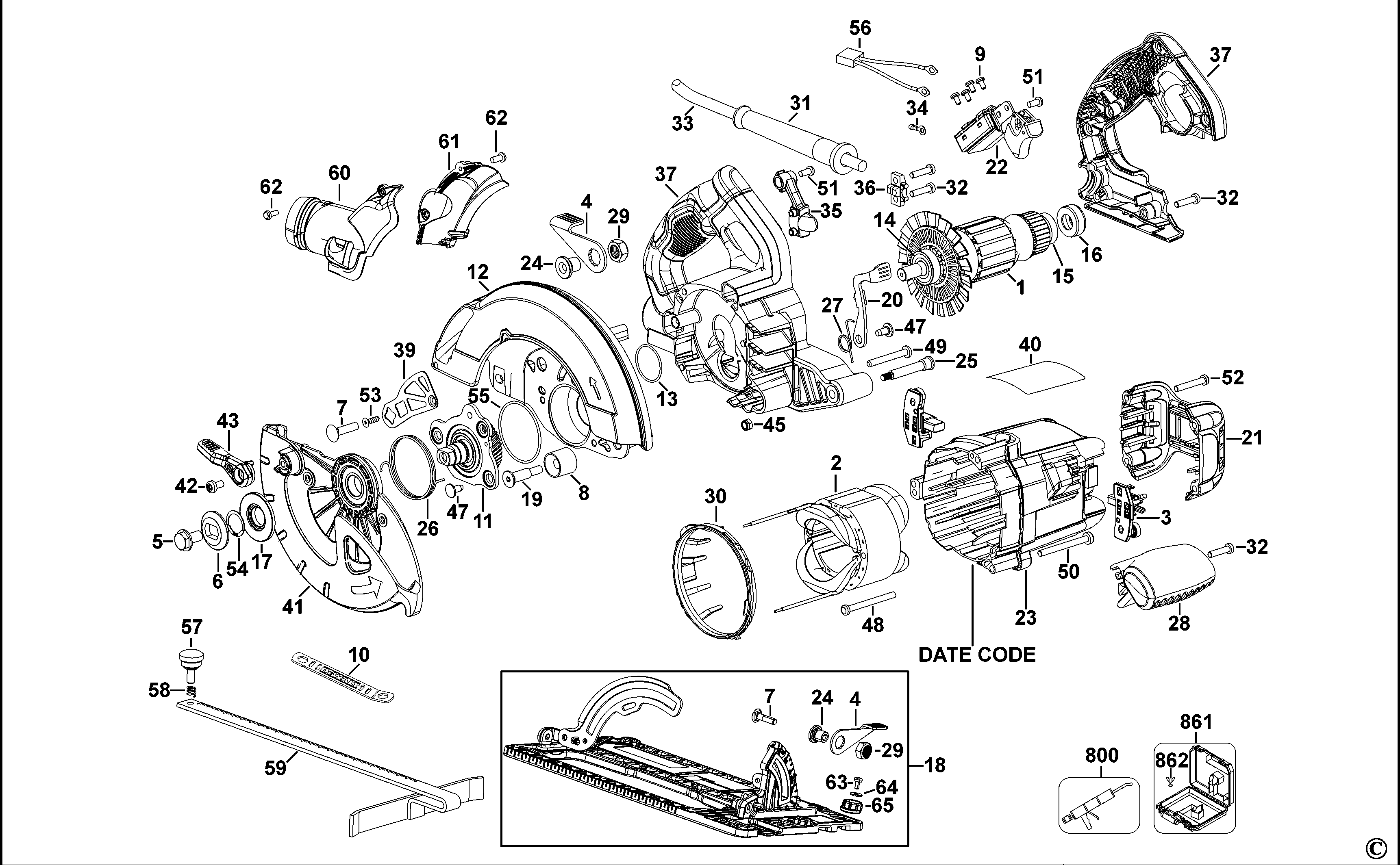

DWE576 CIRCULAR SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N420172 | 1 | ARMATURE 230V | 230V | GB |  |
|
| 2 | N225796 | 1 | FIELD SA 230V | GB | |
||
| 3 | N226137 | 1 | BRUSH HOLDER PAIR | GB | |
||
| 4 | 145347-00 | 1 | LEVER | GB | |
||
| 5 | 145344-00 | 1 | SCREW.SPECIAL | GB | |
||
| 6 | N120428 | 1 | OUTER FLANGE | 30MM ID BLADE | GB | |
|
| 7 | 098128-90 | 2 | CARRIAGE BOLT | GB |  |
||
| 8 | 381066-00 | 1 | BUMPER | GB | |
||
| 9 | 384127-01 | 4 | SCREW | GB | |
||
| 10 | N165861 | 1 | WRENCH SPECIAL | GB | |
||
| 11 | N219393 | 1 | SPINDLE SA | GB | |
||
| 12 | N237899 | 1 | GEARCASE SA | INCL 13 | GB | |
|
| 13 | N100358 | 1 | O RING | GB | |
||
| 14 | 330003-25 | 1 | BEARING | 12 x 28 x 8 - 6001RS | GB | |
|
| 15 | N110359 | 1 | BEARING | GB | |
||
| 16 | N136311 | 1 | RUBBER BOOT | GB | |
||
| 17 | N084137 | 1 | WASHER INNER CLAMP | INNER | GB | |
|
| 18 | N257219 | 1 | SHOE SA | GB | |
||
| 19 | N086135 | 1 | SCREW | GB | |
||
| 20 | N090570 | 1 | LEVER LOCK | SPINDLE | GB | |
|
| 21 | N090678 | 1 | END CAP | GB | |
||
| 22 | N120421 | 1 | SWITCH SA | GB | |
||
| 23 | N168914 | 1 | FIELDCASE | GB | |
||
| 24 | N094731 | 1 | SCREW | TOP HAT | GB | |
|
| 25 | N099101 | 1 | BOLT | GB | |
||
| 26 | N100006 | 1 | SPRING | GB | |
||
| 27 | N100123 | 1 | SPRING | GB | |
||
| 28 | N115554 | 1 | HANDLE | GB | |
||
| 29 | N117921 | 1 | STOP NUT | ELASTIC 7/16-20 | GB | |
|
| 30 | N287072 | 1 | BAFFLE FAN | GB | |
||
| 31 | 330005-02 | 1 | CORD PROTECTOR | GB | |
||
| 32 | 330019-13 | 9 | SCREW | M4X19 T20 | GB | |
|
| 33 | N142646 | 1 | CORDSET (M/PLUG) GB | GB | GB | |
|
| 34 | 395716-00 | 2 | TERMINAL | RING | GB | |
|
| 35 | N095539 | 1 | CORD CLAMP | GB | |
||
| 36 | N127730 | 1 | CORD CLAMP | GB | |
||
| 37 | N137320 | 1 | HANDLE SA | GB | |
||
| 39 | N135988 | 1 | STRAP | GB | |
||
| 40 | N770209 | 1 | RATING PLATE | GB | GB | |
|
| 41 | N378852 | 1 | GUARD LOWER | GB | |
||
| 42 | 098094-13 | 1 | SCREW | M5 x 13mm, Pan Hd | GB | |
|
| 43 | N086628 | 1 | LEVER | GB | |
||
| 45 | N123103 | 1 | STOP NUT | GB | |
||
| 47 | 385915-04 | 4 | SCREW | GB | |
||
| 48 | 330019-50 | 2 | SCREW | M4.55x50 PLASTIC THD FMG | GB | |
|
| 49 | 330045-19 | 1 | SCREW | GB | |
||
| 50 | 330045-21 | 3 | SCREW | GB | |
||
| 51 | 330019-10 | 2 | SCREW | GB | |
||
| 52 | 330019-45 | 4 | SCREW | GB | |
||
| 53 | 593515-00 | 1 | SCREW | M4 X 1.7 | GB | |
|
| 54 | N120426 | 1 | RETAINER | GB | |
||
| 55 | N361499 | 1 | O RING | GB | |
||
| 56 | 632218-00 | 1 | CAPACITOR | GB | |
||
| 57 | N287119 | 1 | SCREW | GB | |
||
| 58 | 058287-00 | 1 | SPRING | GB | |
||
| 59 | N174703 | 1 | FENCE | METRIC | GB | |
|
| 60 | N108974 | 1 | DUST PORT | GB | |
||
| 61 | N168420 | 1 | DUST PORT | GB | |
||
| 62 | 370748 | 2 | SCREW | GB | |
||
| 63 | 330045-44 | 4 | SCREW | GB | |
||
| 64 | N177561 | 4 | WASHER | GB | |
||
| 65 | N144477 | 4 | KNOB | GB | |
||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | GB | |
|
| 861 | 621123-00 | 1 | KITBOX | GB | |
||
| 862 | 605265-00 | 1 | SPRING CLIP | GB | |
