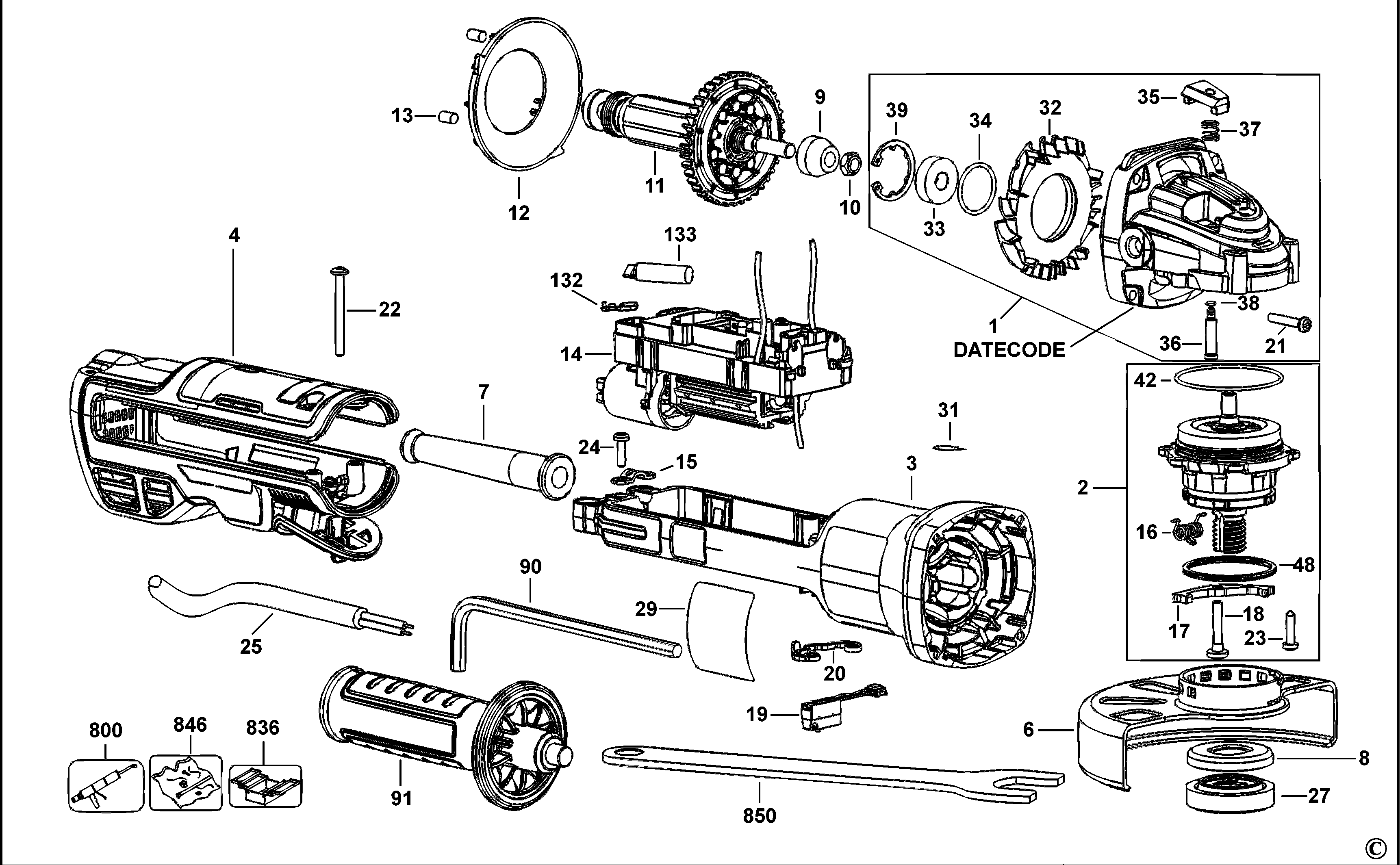

DWE4345 ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N545495 | 1 | GEARCASE SA | PKGD N470622 | B4 |  |
|
| 2 | N545254 | 1 | GEARCASE COVER SA | M14 | B4 | |
|
| 3 | N545778 | 1 | FIELDCASE SA | W/STATOR, HALL BOARD | B4 | |
|
| 4 | N563965 | 1 | HANDLE SA | PADDLE YELLOW | B4 | |
|
| 6 | N487790 | 1 | GUARD | B4 | |
||
| 7 | N473096 | 1 | CORD PROTECTOR | NPP | B4 | |
|
| 8 | 391969-00 | 1 | INNER FLANGE | B4 | |
||
| 9 | N442349 | 1 | PINION | 12T | B4 | |
|
| 10 | N372039 | 1 | NUT | M7 | B4 | |
|
| 11 | N545497 | 1 | ROTOR SA | PKGD N532366 | B4 | |
|
| 12 | N465425 | 1 | BAFFLE FAN | B4 | |
||
| 13 | 949638-01 | 3 | BUFFER | B4 | |
||
| 14 | N545575 | 1 | CONTROL MODULE SA | 120V, SINGLE SPD | B4 |  |
|
| 15 | 930103-00 | 1 | CORD CLAMP | B4 | |
||
| 16 | N465886 | 1 | SPRING | B4 | |
||
| 17 | N637725 | 1 | LEVER | B4 | |
||
| 18 | N297219 | 1 | SCREW | M4 | B4 | |
|
| 19 | N563931 | 1 | SWITCH | ALSO ORDER ITEM 846 | B4 | |
|
| 20 | N618379 | 1 | SPRING | B4 | |
||
| 21 | N371839 | 4 | SCREW | B4 | |
||
| 22 | N389438 | 4 | SCREW | M4x40 PLSTC THD FMG | B4 | |
|
| 23 | 330045-06 | 5 | SCREW | B4 | |
||
| 24 | 330019-02 | 2 | SCREW | B4 | |
||
| 25 | N746982 | 1 | CORDSET | B4 | |||
| 27 | N484250 | 1 | OUTER FLANGE | B4 | |
||
| 29 | N754602 | 1 | RATING PLATE | B4 | |||
| 31 | N450663 | 1 | LABEL | BRAKE | B4 | ||
| 32 | N401958 | 1 | DEFLECTOR | B4 | |
||
| 33 | N175104 | 1 | BEARING | B4 | |
||
| 34 | N119639 | 1 | O RING | B4 | |
||
| 35 | N278899 | 1 | BUTTON | SPINDLE | B4 | |
|
| 36 | N481683 | 1 | LOCK PIN | B4 | |
||
| 37 | N263579 | 1 | SPRING | B4 | |
||
| 38 | N263699 | 1 | O RING | B4 | |
||
| 39 | N453031 | 1 | RETAINER | B4 | |
||
| 42 | N307625 | 1 | O RING | B4 | |
||
| 48 | N542715 | 1 | WASHER SPRING | B4 | |
||
| 90 | N107295 | 1 | HEX KEY | 6 mm | B4 | |
|
| 91 | N382311 | 1 | SIDE HANDLE | B4 | |
||
| 132 | N485055 | 3 | TERMINAL | 110 IDC | B4 | |
|
| 133 | N498727 | 3 | BOOT | HEAT SHRINK | B4 | |
|
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | B4 | |
|
| 836 | N536561 | 1 | S.T.SUPPORT JIG | B4 | |
||
| 846 | N545570 | 1 | TUBE SILICONE | ES 2044 H | B4 | |
|
| 850 | N541784 | 1 | SPANNER | B4 | |
