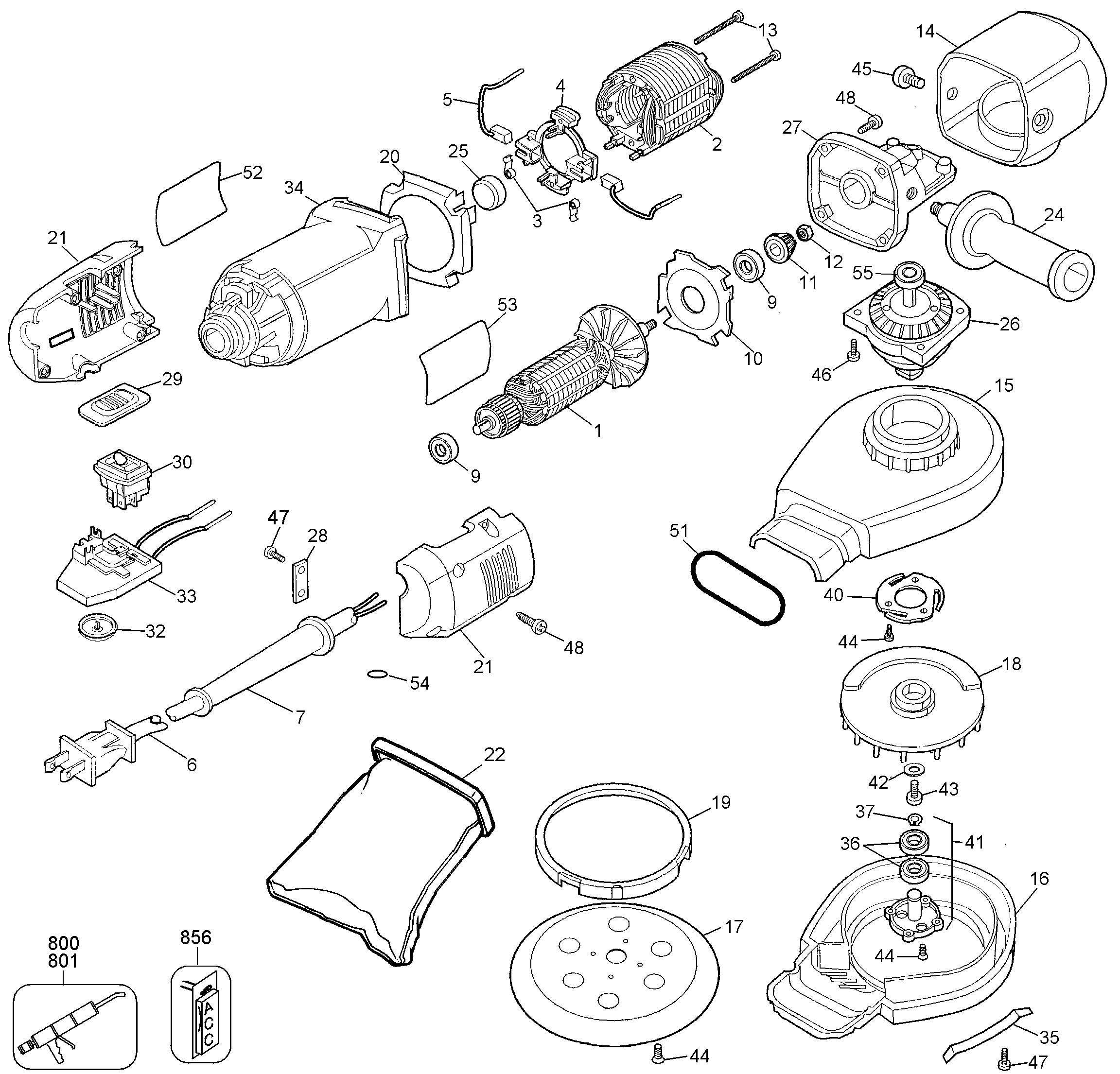

DW443 SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5140019-78 | 1 | MOTOR SA | INCL.9,10,11,12 | XD |  |
|
| 2 | 150050-05 | 1 | FIELD | XD | |
||
| 3 | 445860-00 | 2 | BRUSH SPRING | XD |  |
||
| 4 | 449899-05 | 1 | RING | XD | |
||
| 5 | 445861-30 | 2 | BRUSH 220V | XD | |
||
| 6 | 330060-63 | 1 | CABLE SA | XD | |
||
| 7 | 330005-01 | 1 | CORD PROTECTOR | XD | |
||
| 9 | 330003-04 | 2 | BEARING | XD | |||
| 10 | 150057-01 | 1 | RETAINER | XD | |
||
| 11 | N093597 | 1 | BEVEL PINION | XD | |||
| 12 | 608505-00SV | 1 | SHROUD SA | XD | |
||
| 12 | 330015-02 | 1 | NUT | XD | |
||
| 13 | 445880-00 | 2 | SCREW | XD | |
||
| 14 | 151444-00 | 1 | SHROUD | XD | |
||
| 17 | 151416-01 | 1 | PAD | XD | |
||
| 18 | 151410-00 | 1 | FAN | XD | |
||
| 19 | 151418-00 | 1 | BRAKE | XD | |
||
| 20 | 151434-00 | 1 | BAFFLE | XD | |
||
| 21 | 151425-00 | 1 | END CAP | XD | |
||
| 22 | 151429-00SV | 1 | DUST BAG SA | XD | |
||
| 24 | N239381 | 1 | SIDE HANDLE | XD | |||
| 25 | 445217-02 | 1 | SLEEVE | XD | |
||
| 26 | N228953 | 1 | GEARCASE COVER | XD | |
||
| 27 | 151406-00 | 1 | GEARCASE | XD | |||
| 28 | 380414-00 | 1 | CORD CLAMP | XD | |
||
| 29 | 151428-00 | 1 | ACTUATOR | XD | |||
| 30 | 151462-00 | 1 | SWITCH | INCL. BOOT | XD | ||
| 32 | 151435-00 | 1 | KNOB | XD | |
||
| 33 | N247800 | 1 | CONTROL MODULE SA | 230v | XD | |
|
| 34 | 445857-03 | 1 | FIELDCASE | XD | |
||
| 35 | 151442-00 | 2 | LEAF SPRING | XD | |||
| 36 | 330003-04 | 2 | BEARING | XD | |||
| 37 | 037653-00 | 1 | CLIP | XD | |
||
| 40 | 151419-00 | 1 | RETAINER | XD | |
||
| 41 | 151451-00SV | 1 | COLLAR SA | XD | |
||
| 42 | 330016-02 | 1 | WASHER | XD | |
||
| 42 | 608505-00SV | 1 | SHROUD SA | XD | |
||
| 43 | 330045-23 | 1 | SCREW | XD | |
||
| 44 | 330045-05 | 10 | SCREW | XD | |
||
| 45 | 151447-00 | 2 | SCREW | XD | |
||
| 46 | 146929-00 | 4 | SCREW | 8-32x5/8 W/LOCK WSHR | XD | |
|
| 47 | 330019-04 | 6 | SCREW | XD | |
||
| 48 | 330019-13 | 8 | SCREW | M4X19 T20 | XD | |
|
| 51 | 56194-00 | 1 | O RING | XD | |
||
| 52 | 395047-00 | 1 | BRAND LABEL | XD | |
||
| 53 | 380718-01 | 1 | NAMEPLATE | XD | |
||
| 54 | 151457-00 | 1 | O RING | XD | |
||
| 55 | 330003-18 | 1 | BEARING | XD | |||
| 800 | 761995-01 | 1 | GREASE | 180 Grams | CVJ GREASE | XD | |
| 801 | 283484-01 | 1 | GREASE | 32oz, EXXON CVJ | XD |
