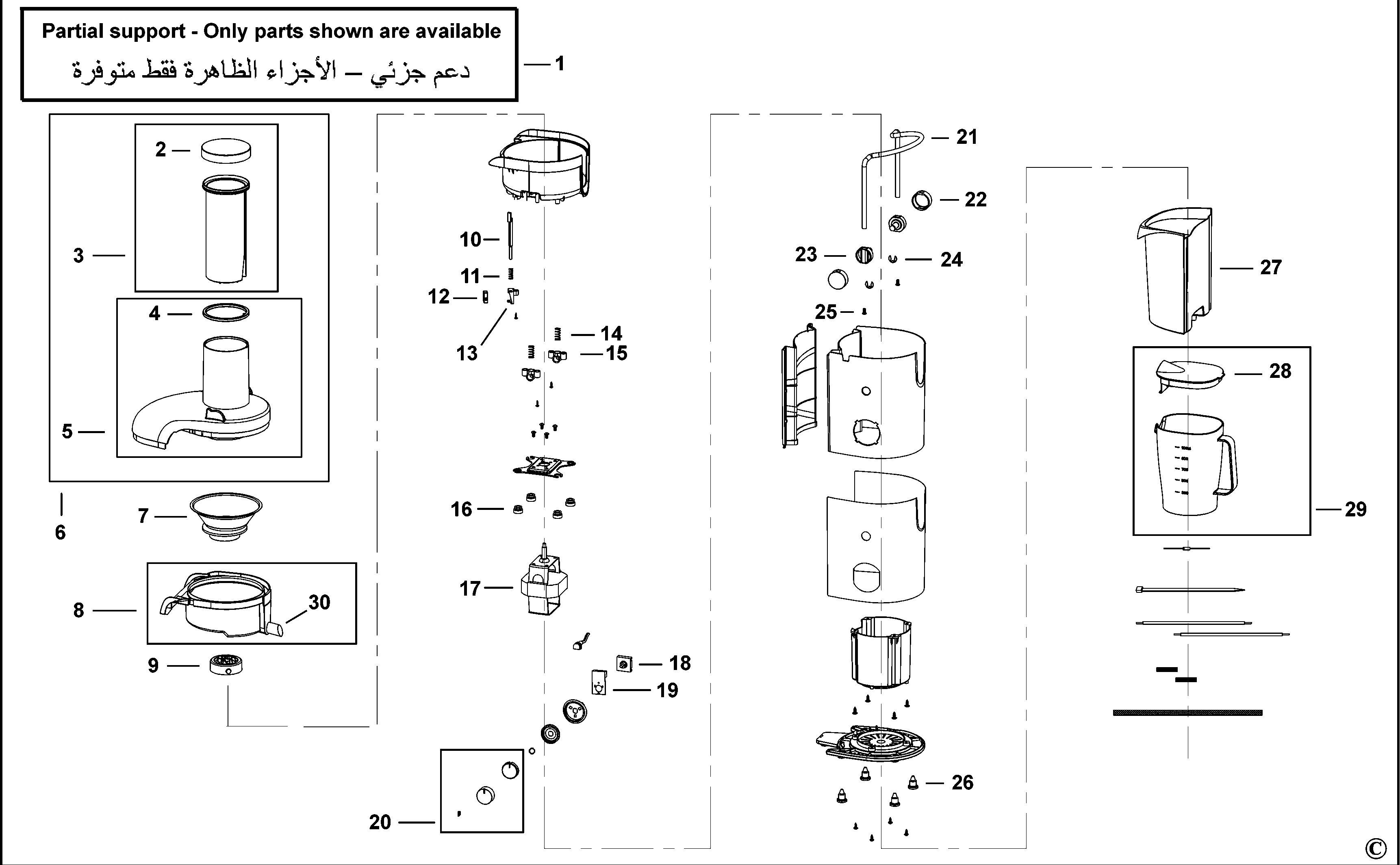

JE800 JUICER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1230.30P3 | 1 | TIP | B5 | |||
| 2 | 6010408-50 | 1 | COVER | B5 | |||
| 3 | 6010408-51 | 1 | PUSHER | B5 | |||
| 4 | 6010408-52 | 1 | RING | B5 | |||
| 5 | 6010408-53 | 1 | COVER-TOP | B5 |  |
||
| 6 | 6010408-54 | 1 | LID SA | B5 | |||
| 7 | 6010408-55 | 1 | FILTER | B5 | |
||
| 8 | 6010408-56 | 1 | SPOUT | SA | B5 | |
|
| 9 | 6010408-57 | 1 | GEAR | B5 | |||
| 10 | 6010408-58 | 1 | SHAFT | B5 | |||
| 11 | 6010353-03 | 1 | SPRING | B5 | |
||
| 12 | 6010408-59 | 1 | MICRO SWITCH | B5 | |||
| 13 | 6010408-60 | 1 | SUPPORT | B5 | |||
| 14 | 6010408-61 | 1 | SPRING | B5 | |||
| 15 | 6010408-62 | 1 | SUPPORT | B5 | |||
| 16 | 5170022-59 | 4 | SHOCK ABSORBER | B5 |  |
||
| 17 | 6010408-63 | 1 | MOTOR | B5 | |||
| 18 | 6010354-57 | 1 | SWITCH | B5 | |
||
| 19 | 6010408-64 | 1 | PCB SA | B5 | |||
| 20 | 6010408-65 | 1 | KNOB SA | B5 | |||
| 21 | 6010408-66 | 1 | HANDLE | B5 | |||
| 22 | 6010408-67 | 2 | COVER | B5 | |||
| 23 | 6010408-68 | 2 | SUPPORT BRACKET | B5 | |||
| 24 | 5170022-51 | 2 | CLIP | B5 | |
||
| 25 | 6010408-69 | 2 | SCREW | B5 | |||
| 26 | 6010408-70 | 4 | FEET | B5 | |||
| 27 | 6010408-71 | 1 | CONTAINER | B5 | |||
| 28 | 6010408-72 | 1 | LID | B5 | |||
| 29 | 6010408-73 | 1 | CUP SA | B5 | |||
| 30 | 6010409-07 | 1 | SPOUT | B5 |
