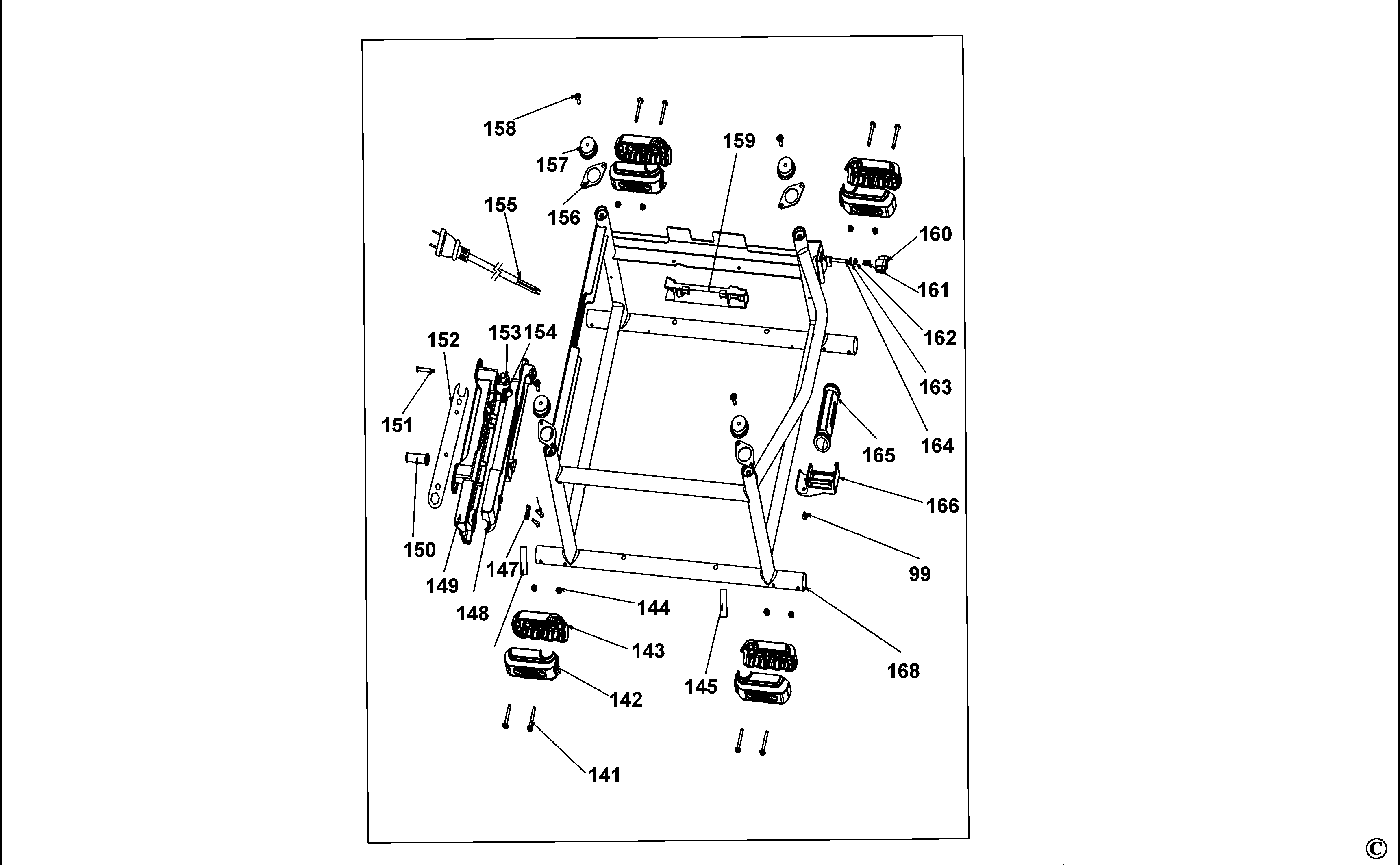

DWE7492 TABLE SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N507933 | 6 | SCREW | A9 | |||
| 2 | N507934 | 6 | WASHER | A9 | |||
| 3 | N467547 | 6 | NUT | A9 | |||
| 4 | N528992 | 2 | RAIL | A9 | |||
| 5 | N446317 | 8 | SCREW.SPECIAL | A9 | |||
| 6 | N530544 | 2 | RAIL | A9 | |||
| 7 | N517904 | 1 | TABLE | A9 | |||
| 8 | N506804 | 1 | POINTER | A9 | |||
| 9 | N530541 | 2 | SCREW | A9 | |||
| 10 | N598018 | 1 | WARNING LABEL | A9 | |||
| 11 | N196912 | 1 | SCALE | A9 | |||
| 12 | N461121 | 6 | SCREW | A9 | |||
| 13 | N526936 | 51 | SCREW | A9 | |||
| 14 | N506838 | 1 | BRACKET | A9 | |||
| 15 | N524352 | 1 | GUARD | A9 | |||
| 16 | 330045-14 | 7 | SCREW | A9 | |||
| 17 | N503338 | 9 | PLATE | A9 | |||
| 18 | N629901 | 1 | TABLE INSERT | A9 | |||
| 19 | N656850 | 1 | WHEEL SA | A9 | |||
| 20 | 330021-02 | 1 | NUT | A9 | |||
| 21 | N561042 | 1 | WASHER | A9 | |||
| 22 | N455278 | 5 | SPIROL PIN | A9 | |||
| 23 | N508191 | 1 | NUT M4 | A9 | |||
| 24 | N506941 | 1 | WASHER | A9 | |||
| 25 | N454259 | 2 | SCREW | A9 | |||
| 26 | N506939 | 1 | POINTER | A9 | |||
| 27 | N454261 | 1 | WASHER LOCK | A9 | |||
| 28 | N506954 | 2 | WASHER | A9 | |||
| 29 | N535078 | 1 | LOCKING SCREW | A9 | |||
| 30 | N508188 | 1 | HANDLE SA | A9 | |||
| 31 | N506909 | 1 | GUARD REAR | A9 | |||
| 32 | N536538 | 2 | CASTING | A9 | |||
| 33 | N840535 | 1 | WASHER CLAMP | A9 | |||
| 34 | N506916 | 1 | CLAMP NUT | A9 | |||
| 35 | N506922 | 1 | COVER | A9 | |||
| 36 | N506918 | 1 | BAR | A9 | |||
| 38 | N506921 | 1 | BAR | A9 | |||
| 39 | N581422 | 2 | SCREW | A9 | |||
| 40 | 750831 | 2 | O RING | A9 | |||
| 41 | N520496 | 1 | BAR | A9 | |||
| 42 | N520495 | 1 | GUARD | A9 | |||
| 43 | N655983 | 1 | LOCKING DEVICE | A9 | |||
| 44 | N507950 | 1 | LEVER | A9 | |||
| 45 | 330021-07 | 1 | NUT | A9 | |||
| 46 | N526192 | 1 | WASHER | A9 | |||
| 47 | N544188 | 1 | SHAFT SA | A9 | |||
| 48 | N511375 | 2 | SPRING | A9 | |||
| 49 | N435913 | 4 | WASHER | A9 | |||
| 50 | N467556 | 1 | WASHER | A9 | |||
| 51 | N511376 | 1 | SPRING | A9 | |||
| 52 | N504755 | 1 | ADJUSTER BLOCK | A9 | |||
| 53 | N467555 | 1 | NUT | A9 | |||
| 54 | N544187 | 1 | SHAFT SA | A9 | |||
| 55 | N606622 | 1 | MOTOR SA | A9 | |||
| 56 | N530916 | 4 | SCREW.SPECIAL | A9 | |||
| 57 | 330022-18 | 2 | SCREW | A9 | |||
| 58 | 631115-00 | 1 | RUBBER | A9 | |||
| 59 | N539048 | 2 | BRUSH CAP | A9 | |||
| 60 | N615774 | 2 | BRUSH HOLDER SA | A9 | |||
| 61 | N638738 | 1 | BRUSH PAIR 230V | A9 | |||
| 62 | N498814 | 1 | FIELDCASE | A9 | |||
| 63 | N638734 | 1 | ARMATURE 230V | A9 | |||
| 64 | N638736 | 1 | FIELD 230V | A9 | |||
| 65 | 330019-30 | 2 | SCREW | A9 | |||
| 66 | N528091 | 1 | BAFFLE FAN | A9 | |||
| 68 | N506869 | 1 | LOCKING RING | A9 | |||
| 69 | 605040-41 | 1 | BEARING | A9 | |||
| 70 | N506868 | 1 | O RING | A9 | |||
| 71 | N448944 | 3 | SCREW | A9 | |||
| 72 | N447220 | 2 | SCREW | A9 | |||
| 74 | N516278 | 1 | HOLDER | A9 | |||
| 75 | N516330 | 1 | BLOCK | A9 | |||
| 76 | N506912 | 1 | GUARD | A9 | |||
| 77 | N506863 | 1 | SPINDLE | A9 | |||
| 79 | N506867 | 1 | GEARCASE COVER | A9 | |||
| 80 | N506870 | 1 | CIRCLIP | A9 | |||
| 81 | N506871 | 1 | GEAR | A9 | |||
| 82 | 605040-59 | 1 | BEARING | A9 | |||
| 84 | N506873 | 1 | O RING | A9 | |||
| 85 | N506202 | 1 | GEARCASE | A9 | |||
| 86 | N524651 | 1 | O RING | A9 | |||
| 87 | N600154 | 2 | CORD PROTECTOR | A9 | |||
| 88 | N916506 | 1 | PAWL | A9 | |||
| 89 | N508200 | 1 | PADDLE | A9 | |||
| 90 | N603747 | 1 | SWITCH 240V | A9 | |||
| 91 | N508201 | 1 | INSERT | A9 | |||
| 92 | N508203 | 1 | PIN | A9 | |||
| 93 | N508204 | 1 | SWITCH COVER | A9 | |||
| 94 | N508209 | 1 | SWITCHBOX | A9 | |||
| 96 | N554952 | 1 | CORD PROTECTOR | A9 | |||
| 97 | N508206 | 4 | SCREW | A9 | |||
| 99 | N454227 | 9 | SCREW | A9 | |||
| 100 | N442869 | 2 | SCREW | A9 | |||
| 101 | N441179 | 2 | CAM | A9 | |||
| 102 | N507005 | 3 | SCREW | A9 | |||
| 103 | N507006 | 1 | PLATE | A9 | |||
| 104 | N507001 | 1 | PANEL FRONT | A9 | |||
| 105 | A28556 | 1 | LABEL | A9 | |||
| 106 | N794733 | 1 | RATING LABEL | A9 | |||
| 107 | N196812 | 1 | LABEL | A9 | |||
| 108 | N586800 | 1 | BRAND LABEL | A9 | |||
| 109 | N563569 | 1 | INSULATOR | A9 | |||
| 110 | N455283 | 3 | NUT M10 | A9 | |||
| 111 | N506929 | 1 | BRACKET | A9 | |||
| 112 | N506935 | 1 | WASHER BOW | A9 | |||
| 113 | N506930 | 2 | WASHER | A9 | |||
| 114 | N471715 | 1 | WOODRUFF KEY | A9 | |||
| 115 | N504745 | 2 | BEVEL GEAR | A9 | |||
| 116 | N506934 | 1 | BUSHING | A9 | |||
| 117 | N506932 | 1 | CONTROL SCREW | A9 | |||
| 118 | N455721 | 4 | SCREW.SPECIAL | A9 | |||
| 119 | N524451 | 1 | FOAM | A9 | |||
| 120 | N506853 | 2 | SCREW | A9 | |||
| 121 | N506952 | 2 | O RING | A9 | |||
| 122 | N445370 | 3 | SCREW.SPECIAL | A9 | |||
| 123 | N506936 | 1 | BRACKET | A9 | |||
| 124 | N506924 | 1 | SHAFT | A9 | |||
| 125 | N521898 | 1 | PLATE | A9 | |||
| 126 | N506900 | 1 | BLOCK | A9 | |||
| 127 | N507731 | 3 | SCREW | A9 | |||
| 128 | N506901 | 1 | NUT | A9 | |||
| 129 | N506925 | 1 | SHAFT | A9 | |||
| 130 | N505220 | 1 | BRACKET SA | A9 | |||
| 131 | N446418 | 4 | SCREW | A9 | |||
| 132 | N446419 | 4 | SPIROL PIN | A9 | |||
| 134 | N455736 | 2 | SCREW | A9 | |||
| 135 | N445362 | 1 | RETAINER | A9 | |||
| 136 | N536542 | 2 | WASHER | A9 | |||
| 137 | N455281 | 3 | RETAINER | A9 | |||
| 139 | N536541 | 1 | SHAFT | A9 | |||
| 140 | N505336 | 1 | BRACKET SA | A9 | |||
| 141 | N468863 | 8 | SCREW.SPECIAL | A9 | |||
| 142 | N546986 | 4 | FOOT | A9 | |||
| 143 | N546987 | 4 | FOOT | A9 | |||
| 144 | N468864 | 8 | NUT | A9 | |||
| 145 | N561998 | 2 | PAD | A9 | |||
| 146 | N506976 | 4 | SCREW | A9 | |||
| 147 | N506975 | 1 | CORD CLAMP | A9 | |||
| 148 | N559499 | 1 | CLAMSHELL RH | A9 | |||
| 149 | N562519 | 1 | CLAMSHELL LH | A9 | |||
| 150 | N507026 | 1 | SLEEVE | A9 | |||
| 151 | N506971 | 2 | SCREW | A9 | |||
| 152 | N506977 | 2 | WRENCH SPECIAL | 22mm | A9 | ||
| 153 | N506978 | 1 | BUTTON | A9 | |||
| 154 | N506979 | 1 | SPRING | A9 | |||
| 155 | N793008 | 1 | CORDSET | A9 | |||
| 156 | N506982 | 4 | BRACKET | A9 | |||
| 157 | N506981 | 4 | BUMPER | A9 | |||
| 158 | N474759 | 4 | SCREW | A9 | |||
| 159 | N557485 | 1 | BRACKET | A9 | |||
| 160 | N538525 | 1 | KNOB | A9 | |||
| 161 | N511764 | 1 | SPRING | A9 | |||
| 162 | N461154 | 1 | NUT | A9 | |||
| 163 | N526185 | 1 | WASHER | A9 | |||
| 164 | N451161 | 1 | BOLT | A9 | |||
| 165 | N506983 | 1 | Handle | A9 | |||
| 166 | N497063 | 1 | BRACKET | A9 | |||
| 168 | N586455 | 1 | CAGE | A9 | |||
| 169 | N638742 | 1 | FENCE SA | A9 | |||
| 170 | N507722 | 10 | SCREW | A9 | |||
| 171 | N507485 | 1 | RAIL | A9 | |||
| 172 | N507736 | 2 | BUSHING | A9 | |||
| 173 | N507735 | 2 | WASHER BOW | A9 | |||
| 174 | N507689 | 1 | PADDLE | A9 | |||
| 176 | N552157 | 1 | PLATE | A9 | |||
| 177 | N507733 | 1 | LEVER | A9 | |||
| 178 | 330045-09 | 2 | SCREW | A9 | |||
| 179 | N474537 | 2 | SCREW | M5 X 12 | A9 | ||
| 180 | N503081 | 2 | HOLDER | A9 | |||
| 181 | N468987 | 6 | SCREW | M5 X 12 | A9 | ||
| 182 | N507744 | 1 | FENCE BEAM | A9 | |||
| 183 | N507741 | 1 | LEVER | A9 | |||
| 184 | N507487 | 1 | RAIL REAR | A9 | |||
| 185 | N507992 | 1 | PADDLE | A9 | |||
| 186 | N552906 | 1 | PLATE | A9 | |||
| 187 | N552506 | 1 | ARM | A9 | |||
| 188 | N550987 | 1 | SUPPORT | A9 | |||
| 189 | N615124 | 2 | SCREW | A9 | |||
| 190 | N448947 | 2 | WASHER | A9 | |||
| 191 | N506020 | 1 | HOLDER | A9 | |||
| 192 | N504104 | 1 | HOLDER | A9 | |||
| 193 | N196817 | 1 | LABEL | A9 | |||
| 194 | 330019-73 | 4 | SCREW | M5 x 20; M5x20 | A9 | ||
| 195 | N511951 | 2 | SPRING | A9 | |||
| 196 | N503387 | 2 | ARM | A9 | |||
| 197 | N552505 | 1 | ARM | A9 | |||
| 198 | N517104 | 2 | SCREW | A9 | |||
| 199 | N468989 | 4 | SCREW | M4 X 10 | A9 | ||
| 200 | N196818 | 1 | LABEL | A9 | |||
| 201 | N506021 | 1 | PUSHROD | A9 | |||
| 202 | N899335 | 1 | GUARD | A9 | |||
| 204 | N507025 | 1 | WARNING LABEL | A9 | |||
| 208 | N455280 | 3 | WASHER | A9 | |||
| 209 | N506822 | 1 | KNOB | A9 | |||
| 210 | N504754 | 2 | PINION | A9 | |||
| 211 | N505964 | 2 | BLOCK | A9 | |||
| 212 | N505867 | 2 | BLOCK | A9 | |||
| 213 | N503996 | 2 | BRACKET | A9 | |||
| 214 | N511377 | 2 | SPRING | A9 | |||
| 217 | N528996 | 1 | ROD | A9 | |||
| 218 | N629902 | 1 | MITRE FENCE | A9 | |||
| 219 | N070906 | 1 | ADAPTOR | A9 | |||
| 220 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | 0.023kg | A9 | |
| 224 | N196816 | 1 | LABEL | A9 | |||
| 225 | N506849 | 1 | Handle | A9 | |||
| 226 | N506845 | 1 | BUSHING | A9 | |||
| 228 | N506803 | 1 | WASHER BOW | A9 | |||
| 229 | N506842 | 1 | BRACKET | A9 | |||
| 230 | N506841 | 1 | CABLE | A9 | |||
| 232 | N614687 | 1 | RIVING KNIFE | A9 | |||
| 234 | N506898 | 1 | PIN | A9 | |||
| 235 | N506899 | 1 | BRACKET | A9 | |||
| 236 | N506895 | 1 | BRACKET | A9 | |||
| 237 | N506885 | 1 | SPRING | A9 | |||
| 238 | N516285 | 1 | SCREW | A9 | |||
| 239 | N506883 | 1 | SHAFT | A9 | |||
| 240 | N516281 | 1 | BUSHING | A9 | |||
| 241 | N516284 | 1 | SPIROL PIN | A9 | |||
| 242 | N516282 | 1 | SPRING | A9 | |||
| 243 | N516283 | 1 | WASHER | A9 | |||
| 244 | N516286 | 1 | RETAINER | A9 | |||
| 245 | N455214 | 1 | RETAINER | A9 |
