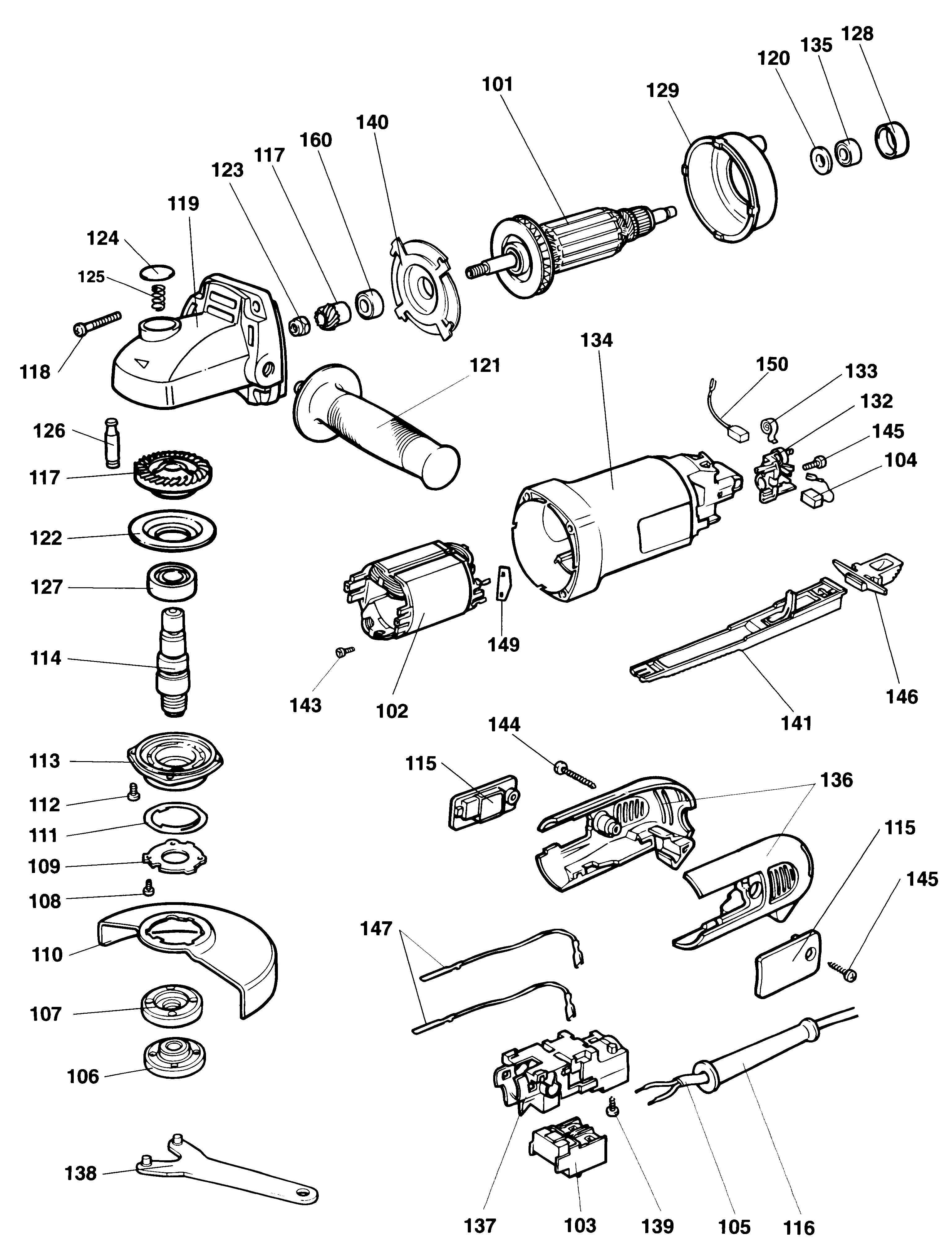

DW806 SMALL ANGLE GRINDER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 401702-10 | 1 | ARMATURE 230V | B1 |  |
||
| 102 | 395991-00 | 1 | FIELD 230V | B1 | |
||
| 103 | 945614-00 | 1 | SWITCH | B1 |  |
||
| 104 | N035676 | 1 | BRUSH PAIR 230V | B1 | |
||
| 105 | 000000-00 | 1 | NO LONGER AVAILABLE | B1 | |||
| 106 | 622208-00 | 1 | OUTER FLANGE | B1 | |
||
| 106 | 561670-00 | 1 | OUTER FLANGE | B1 | |
||
| 107 | 659110-00 | 1 | INNER FLANGE | B1 | |
||
| 108 | 562160-00 | 3 | SCREW | B1 | |
||
| 109 | 605415-00 | 1 | RETAINING PLATE | B1 | |
||
| 110 | 944675-00 | 1 | GUARD | B1 | |
||
| 111 | 393576-00 | 1 | RING | B1 | |
||
| 112 | 930224-01 | 4 | SCREW | B1 | |
||
| 112 | 562160-07 | 4 | SCREW | B1 | |
||
| 113 | 945298-00 | 1 | GEARCASE COVER | B1 | |
||
| 114 | 622210-00 | 1 | SPINDLE | B1 | |
||
| 115 | 401963-01 | 2 | COVER BRUSH | B1 | |
||
| 116 | 330005-01 | 1 | CORD PROTECTOR | B1 | |
||
| 117 | 945295-01 | 1 | GEAR & PINION | B1 | |||
| 117 | 390701-00 | 1 | GEAR | 36T | B1 | ||
| 117 | 562100-01 | 1 | PINION | 11T | B1 | |
|
| 118 | 930079-01 | 4 | SCREW | B1 | |
||
| 119 | 562304-01 | 1 | GEARCASE SA | B1 | |||
| 120 | 945287-00 | 1 | SPACER | B1 | |
||
| 121 | 940155 | 1 | HANDLE SIDE SA | B1 | |
||
| 122 | 945299-00 | 1 | FLANGE | B1 | |
||
| 123 | 945292-00 | 1 | NUT | B1 | |
||
| 124 | 944575-00 | 1 | BUTTON | B1 | |
||
| 125 | 562210-00 | 1 | SPRING | B1 | |
||
| 126 | 944571-00 | 1 | SPINDLE LOCK | B1 | |
||
| 127 | 605040-22 | 1 | BEARING | B1 | |
||
| 128 | 930275-00 | 1 | SLEEVE | B1 | |
||
| 129 | 401623-00 | 1 | BAFFLE | B1 | |
||
| 132 | 949880-05 | 2 | BRUSH HOLDER SA | INCL. SPRING | B1 | |
|
| 133 | 930090-00 | 2 | BRUSH SPRING | B1 | |||
| 134 | 401637-04 | 1 | FIELDCASE | B1 | |||
| 135 | 605040-02 | 1 | BEARING | B1 | |
||
| 136 | 401973-00 | 1 | HANDLE SA | B1 | |||
| 137 | 401595-00 | 1 | SWITCH SUPPORT | B1 | |
||
| 138 | 401253-00 | 1 | WRENCH ROUND-PINS | B1 | |
||
| 139 | 562097-04 | 1 | SCREW | B1 | |
||
| 140 | 401622-01 | 1 | FLANGE | B1 | |
||
| 141 | 947815-01 | 1 | LEVER SA | B1 | |
||
| 143 | 390198-00 | 2 | SCREW | B1 | |
||
| 143 | 390198-00 | 2 | SCREW | B1 | |
||
| 144 | 931297-00 | 2 | SCREW | B1 | |
||
| 144 | 562097-06 | 2 | SCREW | B1 | |
||
| 145 | 931469-02 | 4 | SCREW | B1 | |
||
| 146 | 401259-01 | 1 | BUTTON LOCK-ON | B1 | |
||
| 147 | 949801-99 | 1 | LEAD | B1 | |
||
| 148 | 949933-16 | 1 | TUBE SILICONE | B1 | |
||
| 149 | 402489-00 | 2 | PAD | B1 | |
||
| 150 | 930151-00 | 1 | BRUSH 220V | B1 | |
||
| 160 | 390821-01 | 1 | BEARING | B1 | |||
| 168 | 569512-00 | 1 | FLANGE | B1 |
