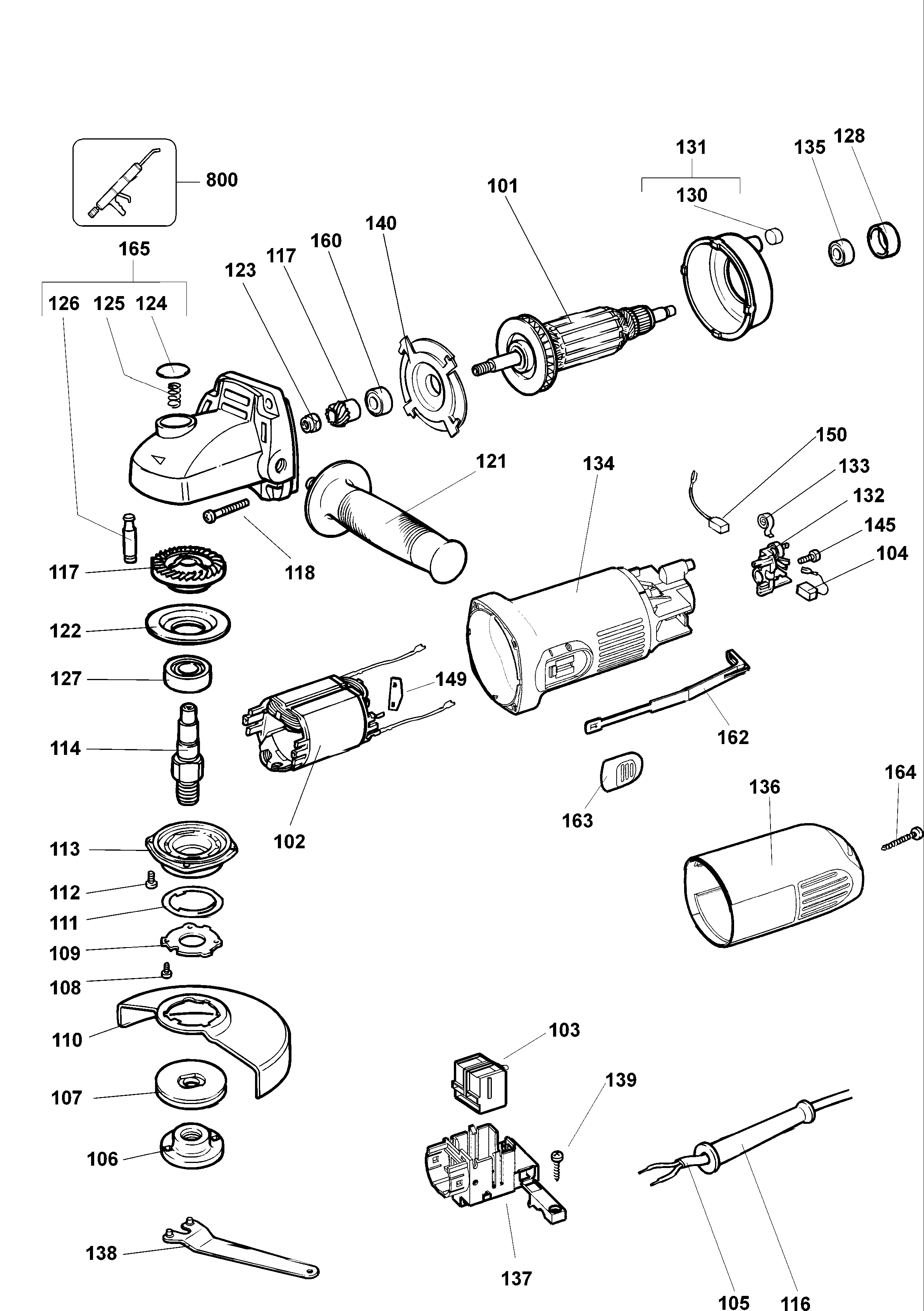

DW821 ANGLE GRINDER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 393921-01 | 1 | ARMATURE SA | B4 |  |
||
| 101 | 393921-01 | 1 | ARMATURE SA | B4 | |
||
| 102 | 395991-01 | 1 | FIELD 115V | B4 | |
||
| 102 | 395991-01 | 1 | FIELD 115V | B4 | |
||
| 103 | 945614-00 | 1 | SWITCH | B4 |  |
||
| 104 | 939539-00 | 1 | BRUSH CUT OFF | B4 | |
||
| 104 | 939539-00 | 1 | BRUSH CUT OFF | B4 | |
||
| 105 | 562226-00 | 1 | CABLE | B4 | |
||
| 105 | 562226-07 | 1 | CABLE | B4 | |||
| 106 | 622613-02 | 1 | OUTER FLANGE | M14 | B4 | |
|
| 107 | 391969-00 | 1 | INNER FLANGE | B4 | |
||
| 108 | 562160-00 | 3 | SCREW | B4 | |
||
| 109 | 605415-00 | 1 | RETAINING PLATE | B4 | |
||
| 110 | 944586-00 | 1 | GUARD | B4 | |
||
| 111 | 393576-00 | 1 | RING | B4 | |
||
| 112 | 562160-01 | 4 | SCREW | B4 | |
||
| 113 | 945298-00 | 1 | GEARCASE COVER | B4 | |
||
| 114 | 391971-00 | 1 | SPINDLE | B4 | |
||
| 116 | N542553 | 1 | CORD PROTECTOR | B4 | |
||
| 116 | N542553 | 1 | CORD PROTECTOR | B4 | |
||
| 116 | 401088-03 | 1 | CORD PROTECTOR | B4 | |
||
| 117 | 661243-00 | 1 | GEAR & PINION | B4 | |
||
| 118 | 562097-01 | 4 | SCREW | B4 | |
||
| 121 | 573115-00 | 1 | SIDE HANDLE | B4 | |
||
| 122 | 945299-00 | 1 | FLANGE | B4 | |
||
| 123 | 945292-00 | 1 | NUT | B4 | |
||
| 124 | 944574-00 | 1 | BUTTON | B4 | |||
| 124 | 944575-00 | 1 | BUTTON | B4 | |
||
| 125 | 562210-00 | 1 | SPRING | B4 | |
||
| 126 | 944571-00 | 1 | SPINDLE LOCK | B4 | |
||
| 127 | 605040-22 | 1 | BEARING | B4 | |
||
| 128 | 930275-00 | 1 | SLEEVE | B4 | |
||
| 130 | 949638-01 | 2 | BUFFER | B4 | |
||
| 131 | 401635-00 | 1 | BAFFLE SA | B4 | |
||
| 132 | 395985-00 | 2 | BRUSH HOLDER | B4 | |
||
| 133 | 562204-00 | 2 | SPRING | B4 | |
||
| 134 | 609938-01 | 1 | FIELD CASE KIT | B4 | |
||
| 135 | 605040-02 | 1 | BEARING | B4 | |
||
| 136 | 394938-01 | 1 | END CAP | B4 | |
||
| 137 | 5140000-13 | 1 | SWITCH SUPPORT | B4 | |||
| 138 | 401680-00 | 1 | WRENCH | B4 | |
||
| 139 | 562097-05 | 1 | SCREW | B4 | |
||
| 140 | 401622-01 | 1 | FLANGE | B4 | |
||
| 145 | 562097-00 | 2 | SCREW | B4 | |
||
| 149 | 402489-00 | 2 | PAD | B4 | |
||
| 150 | 930897-00 | 1 | BRUSH 115-120V | B4 | |||
| 150 | 930897-00 | 1 | BRUSH 115-120V | B4 | |||
| 160 | N110359 | 1 | BEARING | B4 | |
||
| 162 | 611737-01 | 1 | LINK | B4 | |
||
| 163 | 569624-01 | 1 | BUTTON | B4 | |
||
| 164 | 562097-13 | 1 | SCREW | B4 | |
||
| 165 | 610704-01 | 1 | SERVICE KIT | B4 | |
||
| 165 | 562304-01SV | 1 | GEARCASE SA | B4 | |
||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | B4 | |
