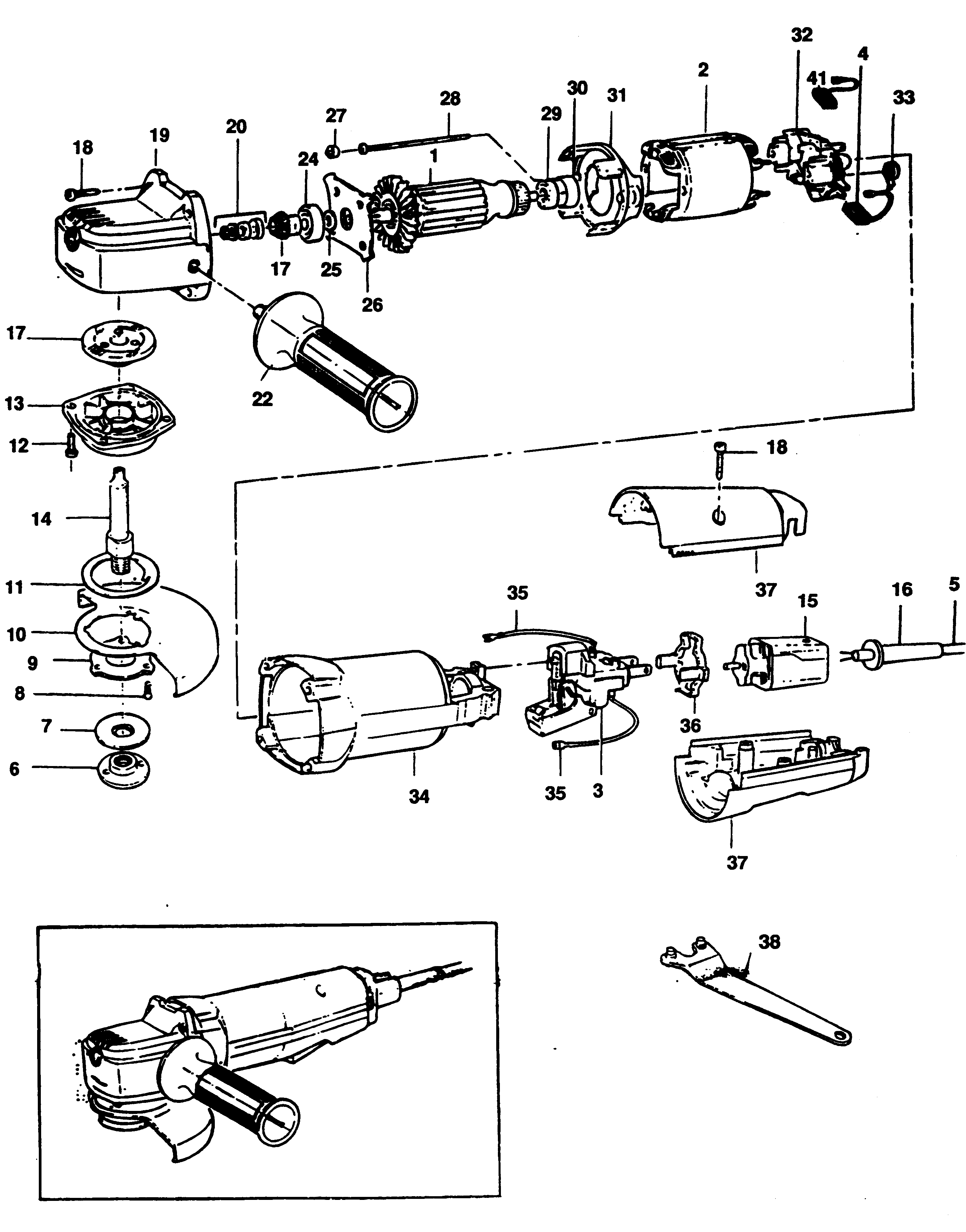

5413 SANDER/GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 931168 | 1 | ARMATURE | MX-PA 115V | ZA |  |
|
| 1 | 931168 | 1 | ARMATURE | AE-SG-115V | ZA | |
|
| 1 | 931168 | 1 | ARMATURE | GB 115V | ZA | |
|
| 2 | 949847-08 | 1 | FIELD | ZA | |
||
| 2 | 949847-08 | 1 | FIELD | AU-NZ (5413 ONLY) | ZA | |
|
| 2 | 949847-08 | 1 | FIELD | GB 240V | ZA | |
|
| 2 | 949847-09 | 1 | FIELD 115V | MX-PA 115V | ZA | |
|
| 2 | 949847-09 | 1 | FIELD 115V | AE-SG-115V | ZA | |
|
| 2 | 949847-09 | 1 | FIELD 115V | GB 115V | ZA | |
|
| 3 | 949822-03 | 1 | SWITCH | ZA | |
||
| 3 | 949822-03 | 1 | SWITCH | AU-NZ (5413 ONLY) | ZA | |
|
| 3 | 949822-03 | 1 | SWITCH | GB 240V | ZA | |
|
| 4 | 930151-00 | 2 | BRUSH 220V | GB 240V | ZA |  |
|
| 4 | 930897-00 | 2 | BRUSH 115-120V | MX-PA 115V | ZA | ||
| 4 | 930897-00 | 2 | BRUSH 115-120V | GB 115V | ZA | ||
| 4 | 939539-01 | 2 | BRUSH CUT OFF | ZA | |
||
| 4 | 939539-01 | 2 | BRUSH CUT OFF | AU-NZ (5413 ONLY) | ZA | |
|
| 4 | 939539-00 | 2 | BRUSH CUT OFF | AE-SG-115V | ZA | |
|
| 5 | 330120-86 | 1 | CORDSET | ZA | |
||
| 5 | 330120-86 | 1 | CORDSET | MX-PA 115V | ZA | |
|
| 5 | 330120-86 | 1 | CORDSET | AE-SG-115V | ZA | |
|
| 5 | 330120-86 | 1 | CORDSET | MX-PA 115V | ZA | |
|
| 5 | 330120-86 | 1 | CORDSET | AE-SG-115V | ZA | |
|
| 5 | 330061-14 | 1 | CORDSET | GB 115V | ZA | |
|
| 5 | 949600-04 | 1 | CABLE SA | AU-NZ (5413 ONLY) | ZA | |
|
| 5 | 949770-06 | 1 | CABLE & PLUG | GB 240V | ZA | |
|
| 6 | 947214-00 | 1 | OUTER FLANGE | ZA | |
||
| 7 | 391968-00 | 1 | INNER FLANGE | ZA | |
||
| 8 | 930251-00 | 3 | SCREW | ZA | |
||
| 11 | 938272 | 1 | RING | ZA | |
||
| 12 | 930770-00 | 4 | SCREW | ZA | |
||
| 13 | 944055 | 1 | GEARCASE COVER SA | ZA | |
||
| 14 | 932165 | 1 | SPINDLE | ZA | |
||
| 15 | 945899-00 | 1 | PLUG | MX-PA 115V | ZA | |
|
| 15 | 945899-00 | 1 | PLUG | AE-SG-115V | ZA | |
|
| 15 | 945899-00 | 1 | PLUG | GB 115V | ZA | |
|
| 15 | 945899-01 | 1 | PLUG | ZA | |
||
| 15 | 945899-01 | 1 | PLUG | AU-NZ (5413 ONLY) | ZA | |
|
| 15 | 945899-01 | 1 | PLUG | GB 240V | ZA | |
|
| 16 | N542553 | 1 | CORD PROTECTOR | ZA | |
||
| 16 | N542553 | 1 | CORD PROTECTOR | AU-NZ (5413 ONLY) | ZA | |
|
| 16 | N542553 | 1 | CORD PROTECTOR | GB 240V | ZA | |
|
| 16 | N542553 | 1 | CORD PROTECTOR | MX-PA 115V | ZA | |
|
| 16 | N542553 | 1 | CORD PROTECTOR | AE-SG-115V | ZA | |
|
| 16 | N542553 | 1 | CORD PROTECTOR | GB 115V | ZA | |
|
| 16 | N542553 | 1 | CORD PROTECTOR | ZA | |
||
| 16 | N542553 | 1 | CORD PROTECTOR | AU-NZ (5413 ONLY) | ZA | |
|
| 16 | N542553 | 1 | CORD PROTECTOR | GB 240V | ZA | |
|
| 16 | N542553 | 1 | CORD PROTECTOR | MX-PA 115V | ZA | |
|
| 16 | N542553 | 1 | CORD PROTECTOR | AE-SG-115V | ZA | |
|
| 16 | N542553 | 1 | CORD PROTECTOR | GB 115V | ZA | |
|
| 17 | 932592 | 1 | GEAR & PINION | ZA | |
||
| 18 | 930079-01 | 6 | SCREW | ZA | |
||
| 19 | 946131-00 | 1 | GEARCASE SA | ZA | |
||
| 20 | 937668 | 1 | CIRCLIP SA | ZA | |
||
| 24 | 577745-00 | 1 | BEARING | ZA | |
||
| 25 | 930753-00 | 1 | WASHER | ZA | |
||
| 27 | 933657-00 | 2 | CAP | ZA | |
||
| 28 | 930077-00 | 2 | SCREW | ZA | |
||
| 29 | 330003-34 | 1 | BEARING | ZA | |
||
| 30 | 930029-00 | 1 | HOLDER BEARING | ZA | |
||
| 31 | 930751 | 1 | BAFFLE | ZA | |
||
| 32 | 938856-00 | 1 | BRUSH PLATE SA | MX-PA 115V | ZA | |
|
| 32 | 938856-00 | 1 | BRUSH PLATE SA | AE-SG-115V | ZA | |
|
| 32 | 938856-00 | 1 | BRUSH PLATE SA | GB 115V | ZA | |
|
| 32 | 930167-00 | 1 | BRUSH PLATE SA | AU-NZ (5413 ONLY) | ZA | |
|
| 32 | 930167-00 | 1 | BRUSH PLATE SA | GB 240V | ZA | |
|
| 32 | 930167-00 | 1 | BRUSH PLATE SA | ZA | |
||
| 33 | 930090-00 | 2 | BRUSH SPRING | ZA | |||
| 35 | 930728-00 | 2 | LEAD | ZA | |
||
| 36 | 930761 | 1 | RING | ZA | |
||
| 38 | 947830-03 | 1 | WRENCH SPECIAL | ZA | |
