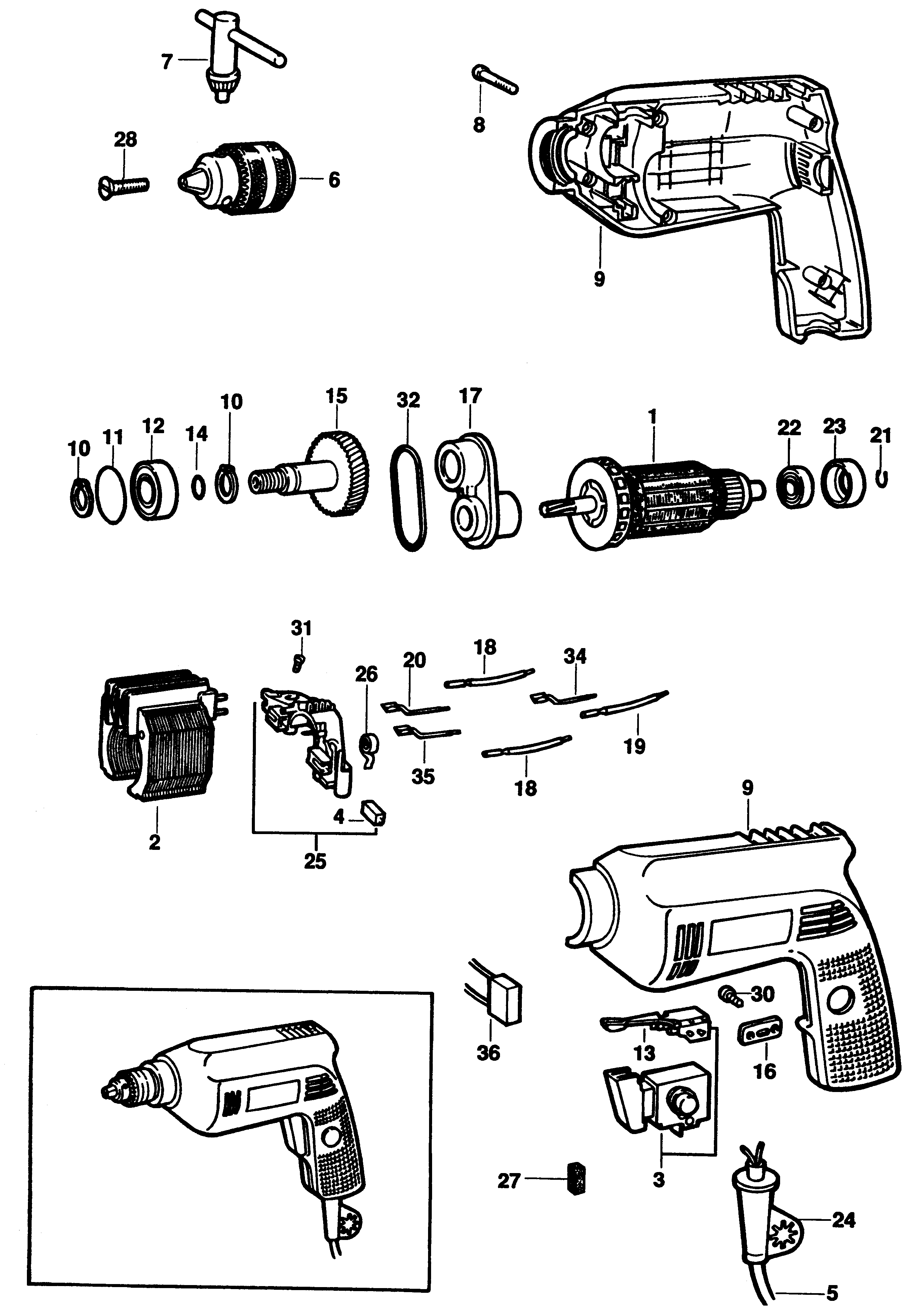

P1179 DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 946557-00 | 1 | ARMATURE | GB 115V | AE |  |
|
| 1 | 946557-00 | 1 | ARMATURE | AE-PA-SG-115V | AE | |
|
| 1 | 946557-01 | 1 | ARMATURE | GB-AE-240V | AE | |
|
| 1 | 946557-01 | 1 | ARMATURE | AE | |
||
| 2 | 939818-02 | 1 | FIELD | GB 115V | AE | |
|
| 2 | 939818-02 | 1 | FIELD | AE-PA-SG-115V | AE | |
|
| 2 | 939818-00 | 1 | FIELD | GB-AE-240V | AE | |
|
| 2 | 939818-00 | 1 | FIELD | GB-AE-240V | AE | |
|
| 2 | 939818-00 | 1 | FIELD | AE | |
||
| 3 | 949732-01 | 1 | SWITCH SA | GB 115V | AE | ||
| 3 | 949732-01 | 1 | SWITCH SA | AE-PA-SG-115V | AE | ||
| 3 | 949732-02 | 1 | SWITCH SA TYPE 1 | GB-AE-240V | AE | |
|
| 3 | 949732-02 | 1 | SWITCH SA TYPE 1 | AE | |
||
| 4 | 932047 | 2 | BRUSH | GB 115V | AE | |
|
| 4 | 932047 | 2 | BRUSH | AE-PA-SG-115V | AE | |
|
| 4 | 931235-00 | 2 | BRUSH 230V | GB-AE-240V | AE | |
|
| 4 | 931235-00 | 2 | BRUSH 230V | AE | |
||
| 5 | 938380-05 | 1 | CABLE | AE-PA-SG-115V | AE | |
|
| 5 | 330120-86 | 1 | CORDSET | AE |  |
||
| 5 | 949843-99 | 1 | CABLE SA | GB 115V | AE | ||
| 5 | 330060-03 | 1 | CABLE & PLUG | GB-AE-240V | AE | |
|
| 6 | 330033-18 | 1 | CHUCK 10MM | AE | |
||
| 7 | 330034-07 | 1 | CHUCK KEY | AE | |
||
| 8 | 930079-01 | 6 | SCREW | AE | |
||
| 9 | 946713-00 | 1 | CLAMSHELL SA | AE | |
||
| 10 | 930098-00 | 2 | RETAINER | AE | |
||
| 11 | 938133-00 | 1 | O RING | AE | |
||
| 12 | 605040-25 | 1 | BEARING,BALL | AE | |
||
| 13 | 938497 | 1 | SWITCH REVERSE | AE | |
||
| 14 | 930028-00 | 1 | O RING | AE | |
||
| 15 | 946731-02 | 1 | GEAR SA | AE | |
||
| 16 | 930103-00 | 1 | CORD CLAMP | AE | |
||
| 17 | 946664-00 | 1 | BLOCK SA | AE | |
||
| 18 | 949801-59 | 2 | LEAD | AE | |
||
| 19 | 949801-58 | 1 | LEAD | AE | |
||
| 20 | 945402-09 | 1 | LEAD | GB 115V | AE | |
|
| 20 | 945402-09 | 1 | LEAD | GB-AE-240V | AE | |
|
| 20 | 945402-09 | 1 | LEAD | AE | |
||
| 20 | 949801-45 | 1 | LEAD SA | AE-PA-SG-115V | AE | |
|
| 21 | 939624-00 | 1 | RING | AE | |
||
| 22 | 330003-02 | 1 | BEARING | AE | |
||
| 23 | 930029-00 | 1 | HOLDER BEARING | AE | |
||
| 24 | 934961-00 | 1 | CORD PROTECTOR | GB 115V | AE | |
|
| 24 | 934961-00 | 1 | CORD PROTECTOR | AE-PA-SG-115V | AE | |
|
| 24 | 934961-00 | 1 | CORD PROTECTOR | GB-AE-240V | AE | |
|
| 24 | 934961-01 | 1 | CORD PROTECTOR | AE | |
||
| 25 | 949730-02 | 1 | BRUSH HOLDER SA | GB 115V | AE | |
|
| 25 | 949730-02 | 1 | BRUSH HOLDER SA | AE-PA-SG-115V | AE | |
|
| 25 | 949730-01 | 1 | BRUSH HOLDER SA | GB-AE-240V | AE | |
|
| 25 | 949730-01 | 1 | BRUSH HOLDER SA | AE | |
||
| 26 | 931221-00 | 2 | SPRING | AE | |
||
| 27 | 930026 | 1 | FOAM | AE | |
||
| 28 | 949890-01 | 1 | SCREW | AE | |
||
| 30 | 930276 | 2 | SCREW | AE | |
||
| 31 | 930284-01 | 2 | SCREW | AE | |
||
| 32 | 932426-00 | 1 | O RING | AE | |
||
| 34 | 949801-42 | 1 | LEAD SA | AE | |
||
| 35 | 945402-08 | 1 | LEAD | GB 115V | AE | |
|
| 35 | 945402-08 | 1 | LEAD | GB-AE-240V | AE | |
|
| 35 | 945402-08 | 1 | LEAD | AE | |
||
| 35 | 949801-46 | 1 | LEAD SA | AE-PA-SG-115V | AE | |
|
| 36 | 930030-01 | 1 | CAPACITOR | GB 115V | AE | |
|
| 36 | 930030-01 | 1 | CAPACITOR | GB-AE-240V | AE | |
|
| 36 | 930030-01 | 1 | CAPACITOR | AE | |
