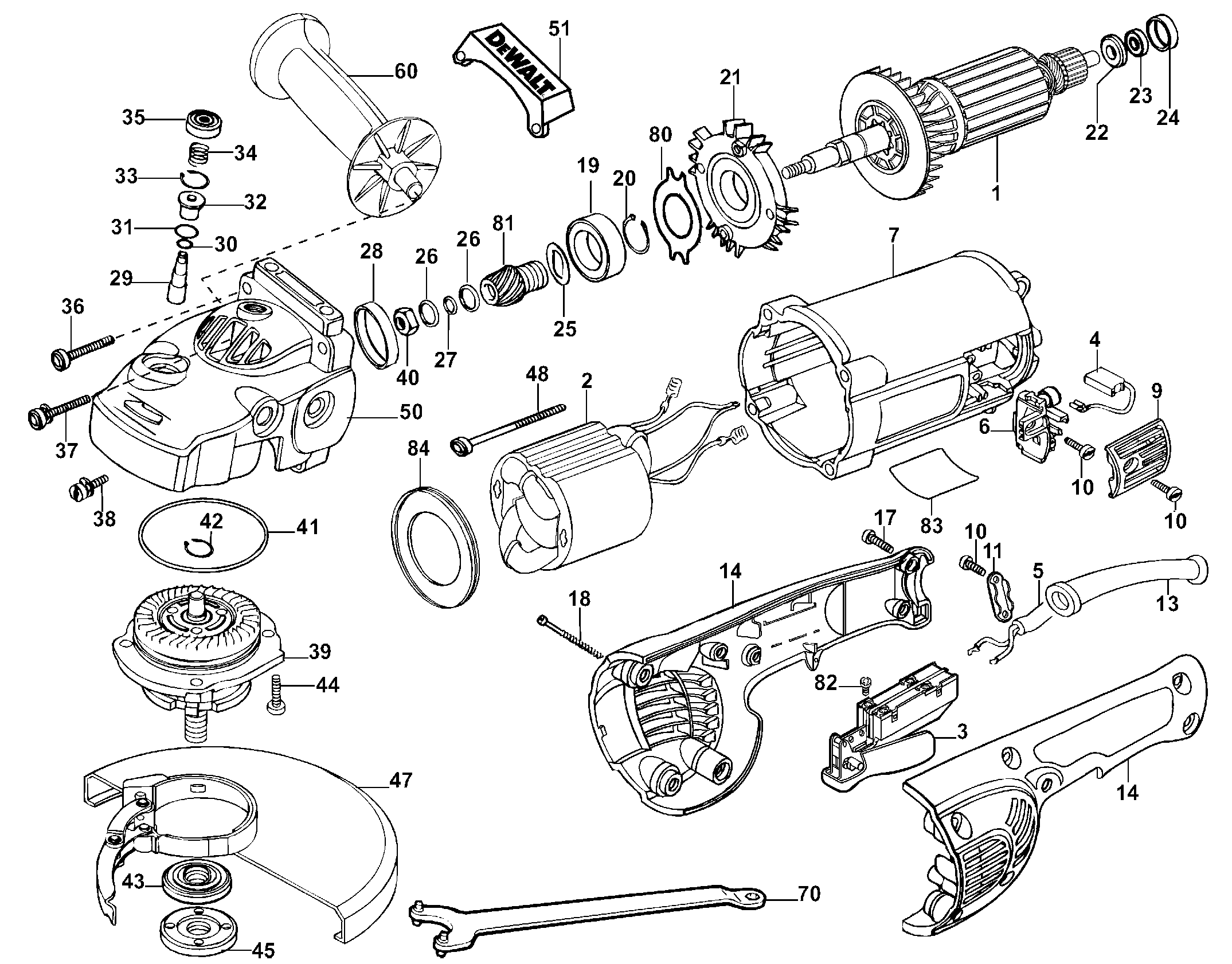

D28474W 8000RPM LAG Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 187166-01E | 1 | ARMATURE 220V | B2 | |||
| 2 | 187272-02 | 1 | FIELD 220V | B2 | |||
| 3 | 394375-04 | 1 | SWITCH SA | B2 | |||
| 4 | 392574-02 | 1 | BRUSH 230V | 230V | B2 | ||
| 4 | N253999 | 1 | BRUSH PAIR 230V | 230V COATED | B2 | ||
| 5 | 186225-10 | 1 | POWER CORD | B2 | |||
| 6 | 617001-00 | 2 | BRUSH HOLDER SA | B2 | |||
| 7 | 393239-02 | 1 | FIELD CASE | B2 | |||
| 9 | 394387-00 | 2 | BRUSH COVER | B2 | |||
| 10 | 330019-11 | 6 | SCREW | M4.55x13 T20 | B2 | ||
| 11 | 608780-00 | 1 | CORD CLAMP | B2 | |||
| 13 | 604118-00 | 1 | CORD PROTECTOR | B2 | |||
| 14 | 395184-00 | 1 | HANDLE SA | B2 | |||
| 17 | 330019-32 | 4 | SCREW | B2 | |||
| 18 | 330019-18 | 3 | SCREW | M4.55 x 50 PLASTIC THD FMG | B2 | ||
| 19 | 605040-27 | 1 | BEARING | B2 | |||
| 20 | 398605-00 | 1 | RETAINER | B2 | |||
| 21 | 614708-00 | 1 | SPACER | B2 | |||
| 22 | 393238-00 | 1 | SHIELD | B2 | |||
| 23 | N110359 | 1 | BEARING | B2 | |||
| 24 | 609970-00 | 1 | SLEEVE INSULATING | B2 | |||
| 25 | 608568-00 | 1 | WASHER | B2 | |||
| 26 | 607502-00 | 2 | WASHER | B2 | |||
| 27 | 614045-00 | 1 | WASHER SPRING | B2 | |||
| 28 | 609971-00 | 1 | SLEEVE | B2 | |||
| 29 | 611212-00 | 1 | LOCK PIN | B2 | |||
| 30 | 603608-00 | 1 | O RING | B2 | |||
| 31 | 50049-00 | 1 | RING | B2 | |||
| 32 | 611213-00 | 1 | SLEEVE | B2 | |||
| 33 | 603470-00 | 1 | RETAINER | B2 | |||
| 34 | 395029-00 | 1 | SPRING | B2 | |||
| 35 | 610999-00 | 1 | CAP | B2 | |||
| 36 | 330019-26 | 4 | SCREW | B2 | |||
| 37 | 330045-70 | 1 | SCREW | M5X40 | B2 | ||
| 38 | 330045-67 | 1 | SCREW | B2 | |||
| 39 | 398621-11 | 1 | GEAR CASE COVER ASSY. | B2 | |||
| 40 | 609125-00 | 1 | LOCK NUT | B2 | |||
| 41 | 397031-00 | 1 | O RING | B2 | |||
| 42 | 034109-00 | 1 | RETAINER | B2 | |||
| 43 | 403150-01 | 1 | INNER FLANGE | B2 | |||
| 44 | 330045-15 | 4 | SCREW | B2 | |||
| 45 | 401678-05 | 1 | OUTER FLANGE | B2 | |||
| 47 | 628231-01 | 1 | GUARD | B2 | |||
| 48 | 330019-19 | 2 | SCREW | B2 | |||
| 50 | 398618-00SV | 1 | GEAR CASE ASSY. | B2 | |||
| 51 | 620579-00 | 1 | BUMPER | B2 | |||
| 60 | 651858-00 | 1 | SIDE HANDLE | B2 | |||
| 70 | 938733 | 1 | WRENCH PIN | B2 | |||
| 80 | 613366-00 | 1 | INSERT | B2 | |||
| 81 | 578635-02 | 1 | PINION | 8000 RPM, 15T | B2 | ||
| 82 | 384127-01 | 4 | SCREW | B2 | |||
| 83 | 610693-02 | 1 | NAME PLATE | B2 | |||
| 84 | 614542-00 | 1 | BAFFLE | B2 |
