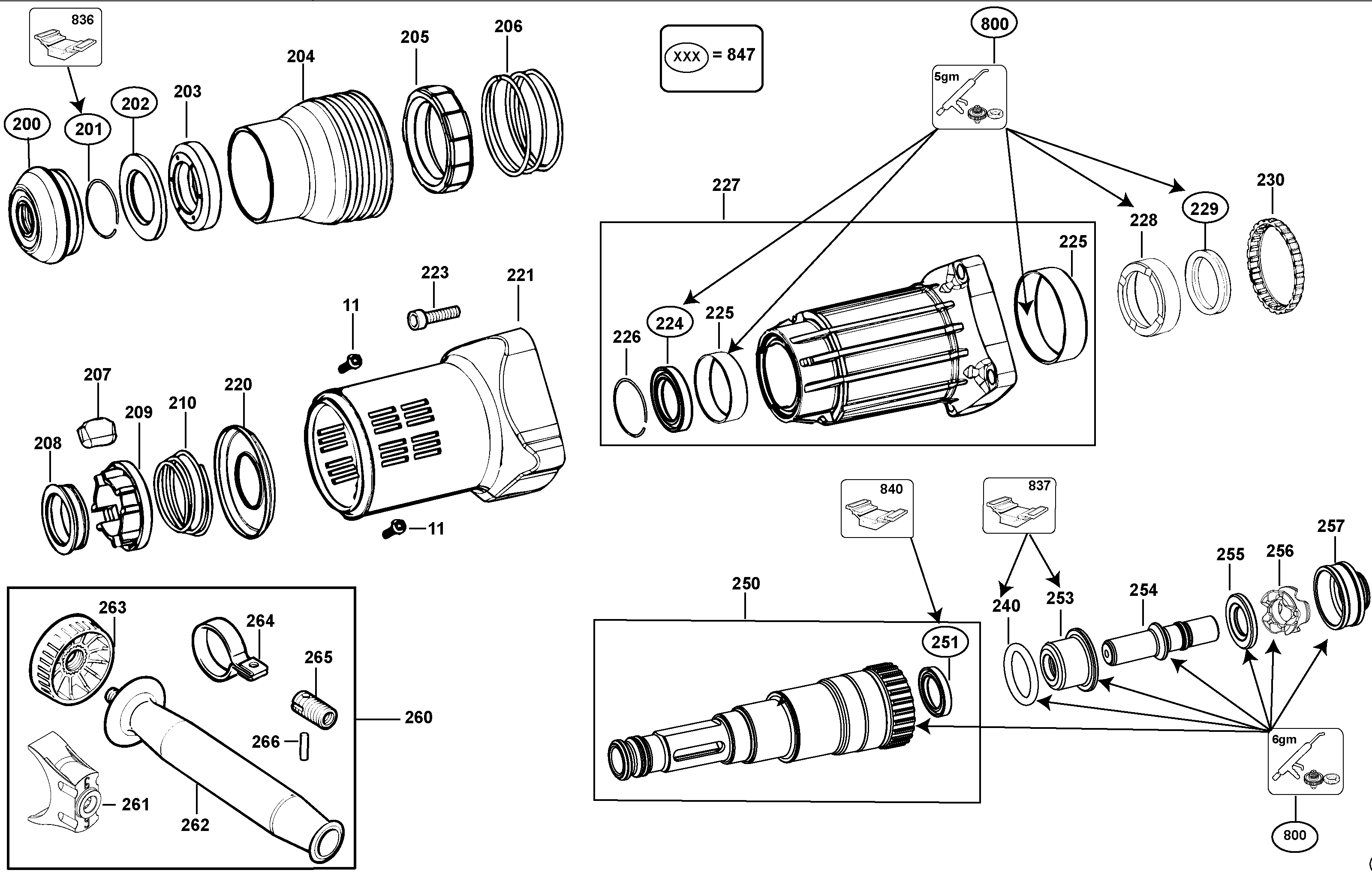

D25762K ROTARY HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 492485-00 | 1 | ARMATURE 230V | B2 | |||
| 2 | 492487-00 | 1 | FIELD SA 230V | B2 | |||
| 3 | 587274-00 | 1 | SWITCH | B2 | |||
| 4 | 489256-00 | 1 | BRUSH PAIR 230V | B2 | |||
| 6 | 577746-00 | 1 | RING | B2 | |||
| 7 | 577745-00 | 1 | BEARING | B2 | |||
| 8 | 590191-00 | 1 | SLEEVE INSULATING | B2 | |||
| 9 | N053065-02 | 1 | HOUSING MOTOR | B2 | |||
| 10 | N542569 | 1 | FAN SA | B2 | |||
| 11 | 330065-08 | 2 | SCREW | M4x18 T20 | B2 | ||
| 15 | 324119-02 | 1 | SCREW | B2 | |||
| 16 | N029960 | 1 | BAFFLE FAN | B2 | |||
| 17 | 330065-08 | 19 | SCREW | M4x18 T20 | B2 | ||
| 18 | N053981 | 1 | GACC MODULE 230V | B2 | |||
| 19 | N022762-00 | 1 | MOTOR COVER | B2 | |||
| 20 | N026164 | 1 | END CAP | B2 | |||
| 25 | N081352 | 1 | LEVER SA | B2 | |||
| 26 | 1007484-00 | 1 | CLIP | NOT USED AFTER D/C 2011-09 | B2 | ||
| 27 | 1005672-00 | 1 | SCREW | B2 | |||
| 28 | N026163-00 | 1 | SUPPORT PLATE | B2 | |||
| 29 | 1007569-00 | 1 | SPRING | B2 | |||
| 30 | 1007567-00 | 1 | BUSH | B2 | |||
| 35 | 1007566-00 | 1 | STOP | B2 | |||
| 36 | 1007565-00 | 1 | BELLOWS | B2 | |||
| 37 | 1006579-00 | 1 | SWITCH HANDLE | B2 | |||
| 38 | 587114-01 | 1 | TRIGGER | B2 | |||
| 39 | 1006580-00 | 1 | HANDLE COVER | B2 | |||
| 40 | N019514 | 1 | TRIGGER LOCK-ON | B2 | |||
| 45 | N041833 | 1 | SET OF LEAD WIRES | B2 | |||
| 46 | 1008678-00 | 1 | BELLOWS | B2 | |||
| 47 | N038214 | 2 | BUSH | B2 | |||
| 48 | N062047 | 1 | PIN | B2 | |||
| 49 | N030728 | 1 | LENS | B2 | |||
| 50 | 1008391-00 | 1 | COVER | B2 | |||
| 55 | 821070 | 1 | CORD CLAMP | B2 | |||
| 56 | 323091-01 | 1 | CORD PROTECTOR | B2 | |||
| 57 | 582573-17 | 1 | CORDSET | B2 | |||
| 58 | 324007-11 | 4 | SCREW | M5 X 18 | B2 | ||
| 100 | 326467-00 | 1 | DETENT | B2 | |||
| 101 | N019533 | 1 | MICRO SWITCH | B2 | |||
| 102 | 324007-11 | 18 | SCREW | M5 X 18 | B2 | ||
| 103 | 488067-00 | 1 | FILTER | B2 | |||
| 104 | N027968 | 1 | COVER GEARCASE | B2 | |||
| 105 | 323711-56 | 1 | O RING | B2 | |||
| 106 | 323711-48 | 1 | O RING | B2 | |||
| 107 | 586032-00 | 1 | ECCENTRIC | B2 | |||
| 108 | 323395-32 | 1 | SPRING | B2 | |||
| 109 | N027969 | 1 | SLIDER | B2 | |||
| 110 | 586038-00 | 1 | SELECTOR | B2 | |||
| 111 | 585168-05 | 1 | COVER | B2 | |||
| 112 | 492489-00 | 1 | PISTON KIT | FOR USE W/12MM CRANK PIN D/C 2010-34 AND EARLIER | B2 | ||
| 112 | N079390 | 1 | PISTON KIT | 10MM CRANK PIN D/C AFTER 2010-35 | B2 | ||
| 113 | N027970 | 1 | RETAINER | B2 | |||
| 116 | N029957 | 1 | CLIP | B2 | |||
| 117 | 487213-00 | 1 | O RING | B2 | |||
| 118 | N091329 | 1 | CRANKSHAFT | D/C AFTER 2010-35 | B2 | ||
| 118 | 492500-00 | 1 | CRANKSHAFT | FOR USE W/12MM CRANK PIN D/C 2010-34 AND EARLIER | B2 | ||
| 118 | 492500-00 | 1 | CRANKSHAFT | FOR USE W/12MM CRANK PIN D/C 2010-34 AND EARLIER | B2 | ||
| 119 | 323711-26 | 1 | O RING | B2 | |||
| 120 | N079381 | 1 | HOUSING | B2 | |||
| 130 | 577744-07 | 1 | O RING | B2 | |||
| 131 | 586034-00 | 1 | SLIDER | B2 | |||
| 132 | N079395 | 1 | CYLINDER | Inc. 252 | B2 | ||
| 135 | 584715-00 | 1 | BUSH | B2 | |||
| 136 | 487296-00 | 1 | O RING | B2 | |||
| 137 | 492501-00 | 1 | RAM | B2 | |||
| 139 | 478650-00 | 1 | BUSH | B2 | |||
| 140 | 584726-00 | 1 | SPRING | B2 | |||
| 150 | 489181-01 | 1 | SLEEVE | B2 | |||
| 151 | N079396 | 1 | BEVEL GEAR | B2 | |||
| 152 | 479974-00 | 1 | SPACER | B2 | |||
| 153 | 488688-00 | 1 | GEAR | B2 | |||
| 154 | 577745-02 | 1 | BEARING,BALL | B2 | |||
| 155 | 586301-00 | 1 | BEARING,NEEDLE | B2 | |||
| 156 | 489239-00 | 1 | BEARING BRASS BUSH | B2 | |||
| 157 | 586022-00 | 1 | SEAL | B2 | |||
| 158 | 330003-39 | 1 | BEARING | B2 | |||
| 159 | 327141-08 | 1 | SEAL | B2 | |||
| 160 | N079386 | 1 | COVER GEARCASE | B2 | |||
| 161 | 586392-00 | 1 | PIN | B2 | |||
| 162 | 586403-00 | 1 | SEAL | B2 | |||
| 165 | N079392 | 1 | CLUTCH SA | B2 | |||
| 192 | 488097-00 | 1 | RETAINER | B2 | |||
| 193 | 488095-00 | 1 | SPRING | B2 | |||
| 194 | 586436-00 | 2 | AXLE | B2 | |||
| 195 | 490613-00 | 1 | COUNTERWEIGHT | B2 | |||
| 196 | 488098-00 | 1 | RETAINER | B2 | |||
| 200 | 487238-01 | 1 | SEAL | B2 | |||
| 201 | 487205-00 | 1 | RING | B2 | |||
| 202 | 487241-00 | 1 | WASHER | B2 | |||
| 203 | 487244-00 | 1 | RUBBER | B2 | |||
| 204 | 487236-00 | 1 | SLEEVE | B2 | |||
| 205 | 579784-00 | 1 | LOCKING RING | B2 | |||
| 206 | 487218-00 | 1 | SPRING | B2 | |||
| 207 | 489672-00 | 1 | KEY | B2 | |||
| 208 | 487249-00 | 1 | BUSH | B2 | |||
| 209 | 590377-00 | 1 | GUIDE BUSH | B2 | |||
| 210 | 487216-00 | 1 | SPRING | B2 | |||
| 220 | 584696-00 | 1 | GUIDE | B2 | |||
| 221 | 587081-00 | 1 | COVER BLACK | B2 | |||
| 223 | 949886-32 | 1 | SCREW | B2 | |||
| 224 | 327141-07 | 1 | LIP SEAL | B2 | |||
| 225 | 488679-00 | 1 | BEARING SET | B2 | |||
| 226 | 488787-00 | 1 | RING | B2 | |||
| 227 | 492697-00 | 1 | HOUSING FRONT | B2 | |||
| 228 | 584722-00 | 1 | WASHER SHIM | B2 | |||
| 229 | 589223-00 | 1 | DAMPER | B2 | |||
| 230 | 584727-00 | 1 | BUSH | B2 | |||
| 240 | 487287-00 | 1 | O RING | B2 | |||
| 250 | 492698-00 | 1 | SPINDLE SA | B2 | |||
| 251 | N014007 | 1 | SEAL | B2 | |||
| 252 | 491004-00 | 1 | O RING | B2 | |||
| 253 | 1007543-00 | 1 | BEARING BUSH | B2 | |||
| 254 | 579832-00 | 1 | BEAT PIECE | B2 | |||
| 255 | 487270-00 | 1 | BUSH | B2 | |||
| 256 | 496678-00 | 1 | DAMPER | B2 | |||
| 257 | 579786-00 | 1 | BUSH | B2 | |||
| 260 | N026162 | 1 | HANDLE SA | B2 | |||
| 261 | N022227 | 1 | CLAMP | B2 | |||
| 262 | N021120 | 1 | HANDLE | B2 | |||
| 263 | 326553-00 | 1 | LOCKING RING | B2 | |||
| 264 | 479333-00 | 1 | CLAMP | B2 | |||
| 265 | 326552-00 | 1 | BUSH | B2 | |||
| 266 | N079374 | 1 | PIN | B2 | |||
| 800 | 578970-04 | 1 | GREASE | 80g | B2 | ||
| 816 | N061824 | 1 | BRAND LABEL | B2 | |||
| 817 | 487395-01 | 1 | LABEL | B2 | |||
| 821 | N049516 | 1 | RATING PLATE | B2 | |||
| 836 | 559652-99 | 1 | S.T.CIRCLIP REMOVER | B2 | |||
| 836 | 559651-99 | 1 | S.T.CIRCLIP REMOVER | B2 | |||
| 837 | 559653-99 | 1 | S.T.BEARING EXTRACTOR | O Ring/Bush extracto | B2 | ||
| 838 | 559657-99 | 1 | S.T.BEARING EXTRACTOR | Bearing puller, assm | B2 | ||
| 840 | 559659-99 | 1 | S.T.SEAL FITTING TOOL | B2 | |||
| 845 | 559656-99 | 1 | S.T.SUPPORT JIG | B2 | |||
| 861 | N072214 | 1 | KITBOX | B2 |
