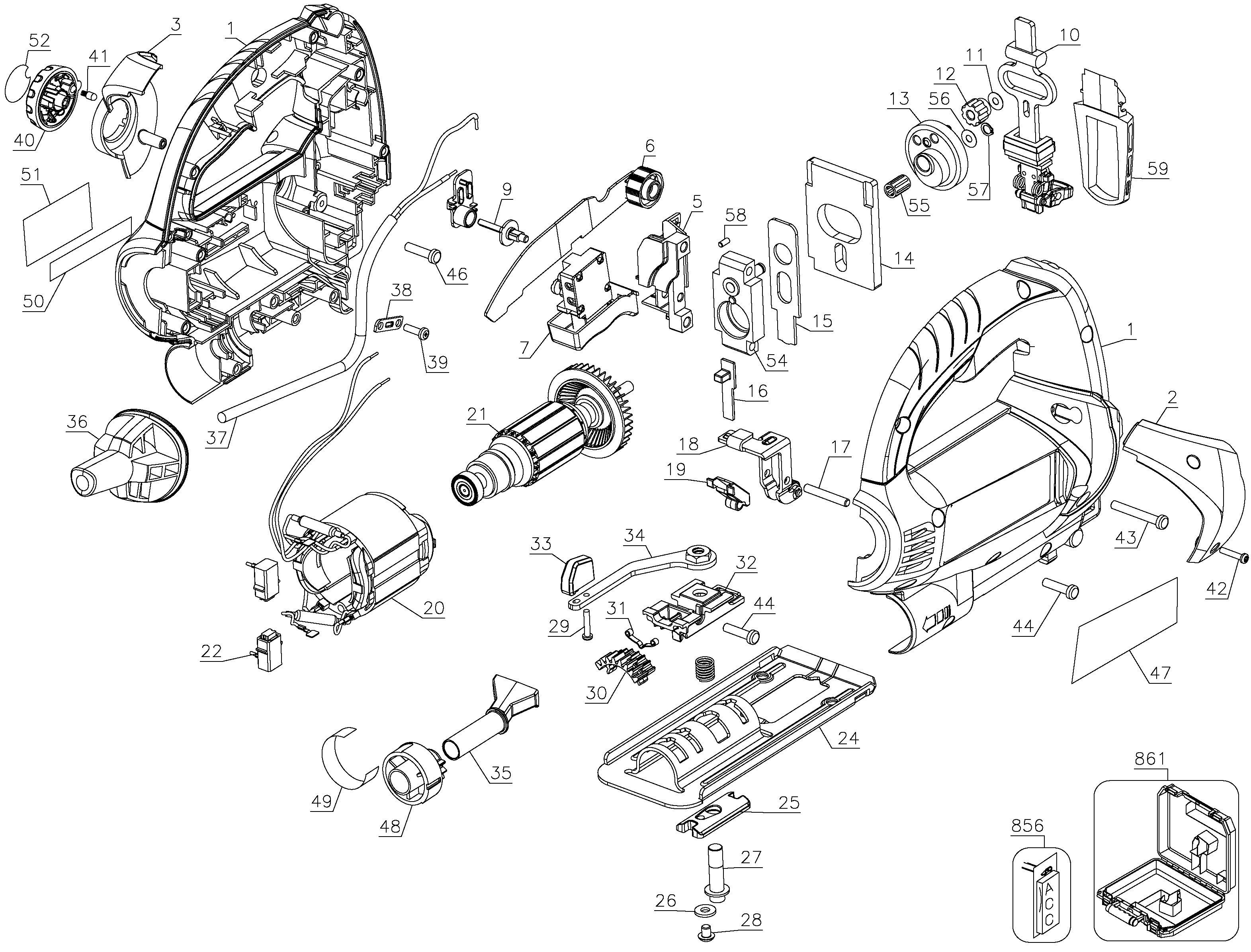

KS650K JIGSAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90532014 | 1 | CLAMSHELL SET | BR | |||
| 2 | 90530391 | 1 | COVER RH | BR | |||
| 3 | 90530389 | 1 | COVER LH | BR | |||
| 5 | 90514323 | 1 | SUPPORT | BR | |||
| 6 | 90559652 | 1 | PCB ASSEMBLY | BR | |||
| 7 | 90532017 | 1 | SWITCH SA | BR | |||
| 9 | 90514375 | 1 | CAM | BR | |||
| 10 | 90517289SV | 1 | RECIP. SHAFT ASSY. | BR | |||
| 11 | 823954 | 1 | WASHER | BR | |||
| 12 | 795688-00 | 1 | ROLLER | BR | |||
| 13 | 90526099 | 1 | GEAR | BR | |||
| 14 | 90525759 | 1 | COUNTERWEIGHT | BR | |||
| 15 | 90532114 | 1 | FORK | BR | |||
| 16 | 90514354 | 1 | PLATE THRUST | BR | |||
| 17 | 90514424 | 1 | PIN | BR | |||
| 18 | 90545786 | 1 | ROLLER SA | BR | |||
| 19 | 90514324 | 1 | DUST PORT | BR | |||
| 20 | 90556728 | 1 | FIELD | BR | |||
| 21 | 90556727 | 1 | ARMATURE ASSEMBLY | BR | |||
| 22 | 90556730 | 2 | BRUSH BOX ASSY | BR | |||
| 24 | 90514201 | 1 | SHOE | BR | |||
| 25 | 90513772 | 1 | PLATE LOCK | BR | |||
| 26 | 90514216 | 1 | WASHER | BR | |||
| 27 | 90514219 | 1 | BOLT | BR | |||
| 28 | 582827-00 | 1 | BOLT | BR | |||
| 29 | 330019-41 | 2 | SCREW | BR | |||
| 30 | 90514228 | 1 | INSERT | BR | |||
| 31 | 90521871 | 1 | SPRING | BR | |||
| 32 | 90513842 | 1 | BLOCK | BR | |||
| 33 | 90514276 | 1 | HANDLE | BR | |||
| 34 | 90529814 | 1 | LEVER SA | BR | |||
| 35 | 90514401 | 1 | DUST CHUTE | BR | |||
| 36 | 90514628 | 1 | CORD PROTECTOR | BR | |||
| 37 | 330122-30 | 1 | CORDSET | BR | |||
| 38 | 329301-00 | 1 | CORD CLAMP | BR | |||
| 39 | 370748 | 2 | SCREW | BR | |||
| 40 | 90530393 | 1 | KNOB | BR | |||
| 41 | 326467-00 | 1 | DETENT | BR | |||
| 42 | 330045-02 | 1 | SCREW | BR | |||
| 43 | 330019-17 | 2 | SCREW | BR | |||
| 44 | 330019-13 | 9 | SCREW | M4X19 T20 | BR | ||
| 46 | 330019-00 | 2 | SCREW | M3x16 T10 PLASTITE | BR | ||
| 47 | 90557131 | 1 | NAME PLATE | BR | |||
| 48 | 90514273 | 1 | INDICATOR | BR | |||
| 49 | 90520107 | 1 | LABEL | BR | |||
| 50 | 90520273 | 1 | LABEL PIVOT | BR | |||
| 51 | 90557302 | 1 | BRAND LABEL | BR | |||
| 52 | 90533516 | 1 | KNOB LABEL | BR | |||
| 54 | 90510498 | 1 | BEARING BLOCK | BR | |||
| 55 | 90512896 | 1 | BEARING NEEDLE | BR | |||
| 56 | 582717-00 | 1 | WASHER | BR | |||
| 57 | 90510502 | 1 | RETAINER | BR | |||
| 58 | 90517281 | 4 | PIN | BR | |||
| 59 | 90521036 | 1 | GUARD | BR | |||
| 856 | 90530405 | 1 | VACUUM ADAPTOR | BR | |||
| 861 | 90530392 | 1 | KIT BOX | BR |
