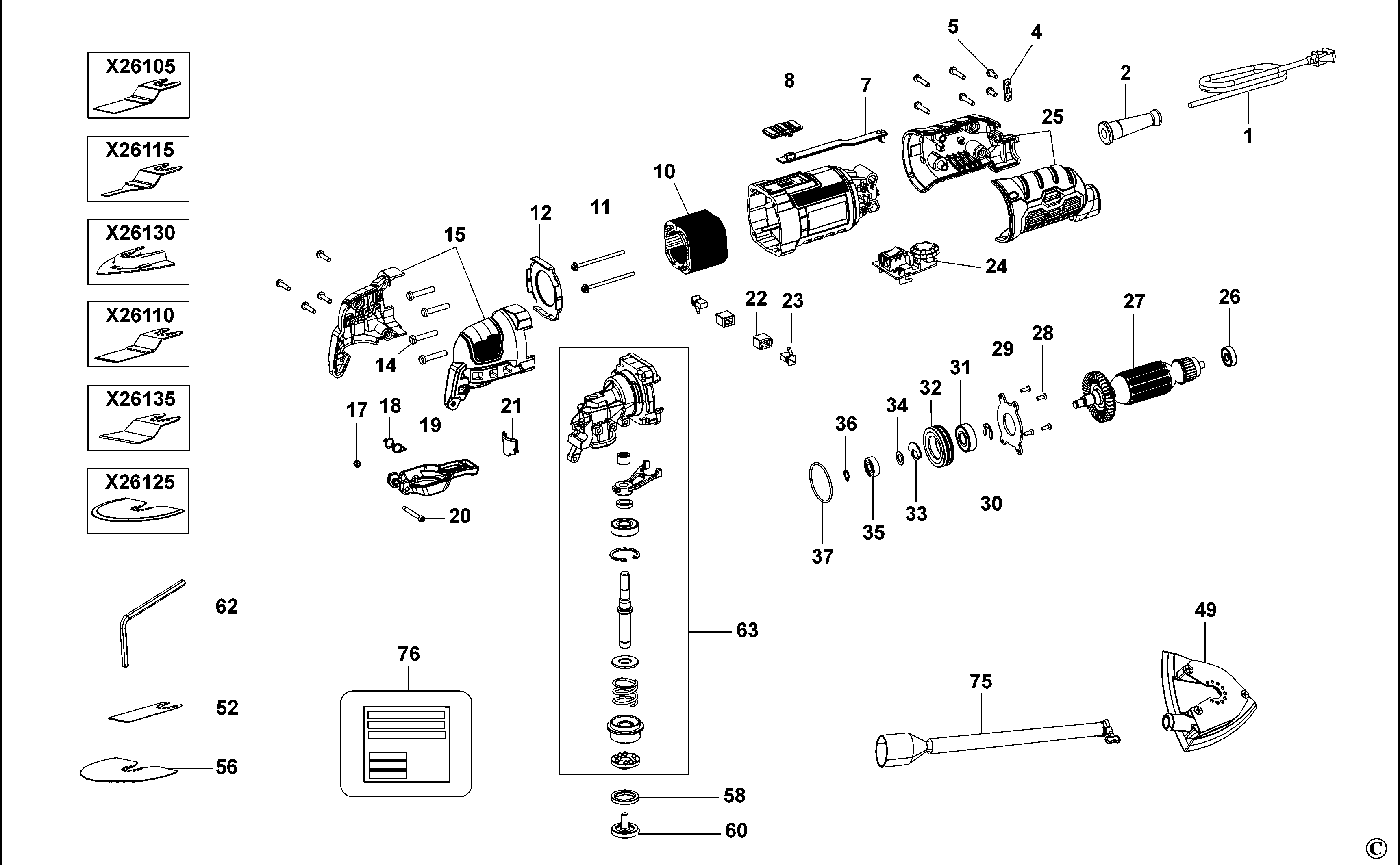

MT280 OUTIL OSCILLANTS Type 1 | Plans
Documents
Liste des pièces
Consultez le menu déroulant car certains produits disposent de plusieurs plans
Impression
Vue pleine page
| Item No. | Product Number | Qty Per | Product Description | Desig compl | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90587560 | 1 | JEU DE CORDONS | GB |  |
||
| 2 | 90567404 | 1 | PROTECTEUR DE CORDON | GB |  |
||
| 4 | 90583376 | 1 | COLLIER DE CORDON | GB | |
||
| 5 | 330019-01 | 2 | SCREW.TEMP | M3.63 x 9.5mm T15 | GB | |
|
| 7 | 90580670 | 1 | ACTIONNEUR | GB | |
||
| 8 | 90583292-01 | 1 | BOUTON | GB | |
||
| 10 | 90581260-01 | 1 | FIELD SA 230V | GB | |
||
| 11 | 90583341 | 2 | VIS | M3 | GB | |
|
| 12 | 90580666 | 1 | CARTER | GB | |
||
| 14 | 330019-14 | 4 | VIS | GB | |
||
| 15 | 90586592 | 1 | S/E CARTER | GB | |
||
| 17 | 90581543 | 1 | ECROU | GB | |
||
| 18 | 90580672 | 1 | RESSORT DE TORSION | GB | |
||
| 19 | 90583372-01 | 1 | S/E LEVIER | GB | |
||
| 20 | 90581542 | 1 | VIS | GB | |
||
| 21 | 90583269 | 1 | COUVERCLE DE CARTER D'ENGRENAGES | GB | |
||
| 22 | 90583140 | 2 | BOITIER DE BALAIS | GB | |
||
| 23 | 90583144 | 2 | BALAI | GB | |
||
| 24 | 90584731 | 1 | S/E CARTE CIRCUIT IMPRIME | GB | |
||
| 25 | 90586591 | 1 | S/E POIGNEE | GB | |
||
| 26 | 90581549 | 1 | PALIER | 626ZZ | GB | |
|
| 27 | 90581263-01 | 1 | ARMATURE | 230v | GB | |
|
| 28 | 90583365 | 4 | VIS | M3 x 8mm | GB | |
|
| 29 | 90581537 | 1 | PLAQUE | GB | |
||
| 30 | 90581540 | 1 | ATTACHE | GB | |
||
| 31 | 90581550 | 1 | PALIER | 6000 ZZ | GB | |
|
| 32 | 90581536 | 1 | MANCHON | GB | |
||
| 33 | 90581541 | 1 | PLAQUE | GB | |
||
| 34 | 90581562 | 1 | RONDELLE AVANT | GB | |
||
| 35 | 90586419 | 1 | PALIER | S607-2RS | GB | |
|
| 36 | 90581539 | 1 | ATTACHE | GB | |
||
| 37 | 90581544 | 1 | JOINT | GB | |
||
| 49 | 90583530 | 1 | PLATINE | GB | |
||
| 52 | 90585830 | 1 | LAME DE RACLOIR FLEXIBLE | GB | |
||
| 56 | 90585831 | 1 | LAME DE COUPE A RAS | GB | |
||
| 58 | N440293 | 1 | BRIDE | GB | |
||
| 60 | 90584484 | 1 | BRIDE EXTERNE | GB | |
||
| 62 | 90584745 | 1 | CLE SPECIALE | GB | |
||
| 63 | 90590388 | 1 | S/E TETE | GB | |
||
| 75 | 90586018 | 1 | S/E TUBE | GB | |
||
| 76 | 90599329 | 1 | ETIQUETTE SIGNALETIQUE | GB | |
