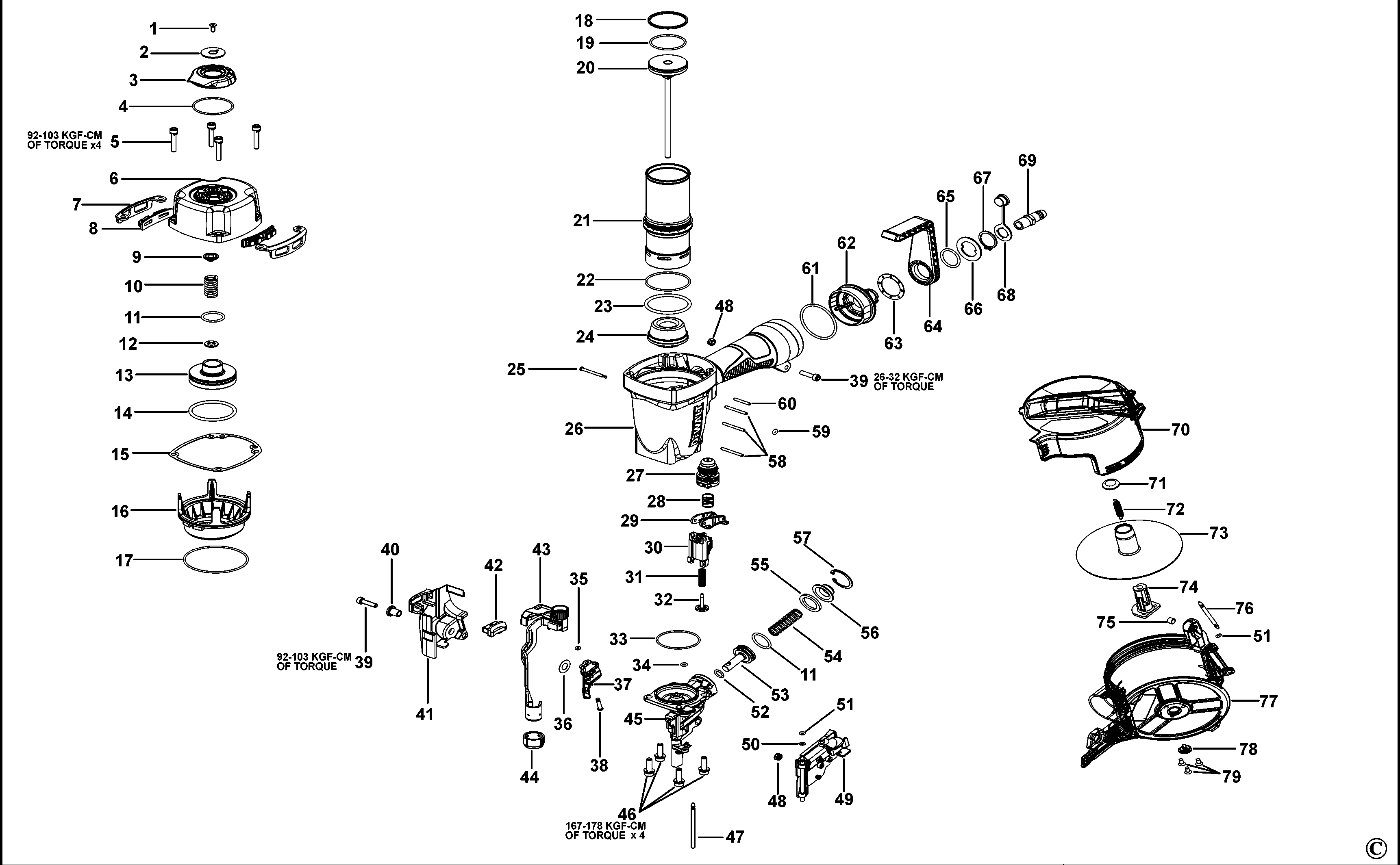

DPN64C NAILER Type 2 | Ritningar
Dokument
Parts List
Visa rullgardinsmenyn då vissa produkter kan ha flera olika ritningar
Utskriftsvänlig
Visa hel sida
| Item No. | Product Number | Antal per | Product Description | Beskrivning | Annan info | Varumärken | Product Status | Riktpris |
|---|---|---|---|---|---|---|---|---|
| 1 | 174041 | 1 | SCREW | XJ |  |
19.00 SEK | ||
| 2 | 174042 | 1 | SPACER | XJ | |
17.34 SEK | ||
| 3 | 174043 | 1 | COVER | XJ | |
17.34 SEK | ||
| 5 | 175554 | 4 | SCREW | M5x0.80x30 | XJ | |
19.00 SEK | |
| 6 | 9R207485 | 1 | CAP | XJ | |
255.86 SEK | ||
| 7 | 174046 | 2 | BRACKET | XJ | |
28.25 SEK | ||
| 8 | 174045 | 2 | RUBBER PAD | XJ | |
17.34 SEK | ||
| 9 | 174049 | 1 | SEAL | XJ | |
19.00 SEK | ||
| 10 | 174051 | 1 | SPRING COMPRESSION | XJ | |
17.34 SEK | ||
| 11 | 174053 | 2 | O RING | 20.8mmx2.4mm | XJ | |
19.00 SEK | |
| 12 | 174052 | 1 | WASHER SPECIAL | XJ | |
17.34 SEK | ||
| 13 | 174054 | 1 | VALVE | XJ | |
47.08 SEK | ||
| 14 | 174055 | 1 | O RING | XJ | |
19.00 SEK | ||
| 15 | 174050 | 1 | GASKET | XJ | |
55.92 SEK | ||
| 16 | 174057 | 1 | COLLAR | XJ | |
26.07 SEK | ||
| 17 | 174056 | 1 | O RING | 66.5mm x 2.0mm | XJ | |
17.34 SEK | |
| 18 | P2320006600 | 1 | SEAL | XJ | |
17.34 SEK | ||
| 19 | S06S003600 | 1 | O RING | XJ | |
19.00 SEK | ||
| 20 | G0209200 | 1 | DRIVER | XJ | |
1370.86 SEK | ||
| 21 | 9R213301 | 1 | COLLAR | XJ | |
105.21 SEK | ||
| 22 | 174058 | 1 | O RING | 45.5mm x 2.0mm | XJ | |
17.34 SEK | |
| 23 | 86460 | 1 | O RING | 1.85 x 0.139 | XJ | |
30.66 SEK | |
| 24 | 174075 | 1 | BUMPER | XJ | |
119.61 SEK | ||
| 25 | 174062 | 1 | PIN | XJ | |
19.00 SEK | ||
| 26 | 9R207421 | 1 | FRAME | XJ | |
897.19 SEK | ||
| 27 | 102039 | 1 | TRIGGER | XJ | |
192.64 SEK | ||
| 28 | 100387 | 1 | SPRING | XJ | |
19.00 SEK | ||
| 29 | 107582 | 1 | TRIGGER | XJ | |
30.66 SEK | ||
| 30 | 9R199740 | 1 | GUIDE | XJ | |
17.34 SEK | ||
| 31 | 9R199741 | 1 | SPRING | XJ | |
19.00 SEK | ||
| 32 | P2845203062 | 1 | HOLDER | XJ | |
47.08 SEK | ||
| 33 | 851483-S | 1 | O RING | XJ | |
17.34 SEK | ||
| 35 | S06A000500 | 1 | O RING | XJ | |
19.00 SEK | ||
| 36 | P3490000200 | 1 | WASHER | XJ | |
17.34 SEK | ||
| 37 | G7600200 | 1 | JAW | XJ | |
238.60 SEK | ||
| 38 | P2325207562 | 1 | ROLLPIN | XJ | |
17.34 SEK | ||
| 39 | MSC5080-20 | 2 | SCREW | M5x20mm | XJ | 19.00 SEK | ||
| 40 | P2325205662 | 1 | SPACER | XJ | |
17.34 SEK | ||
| 41 | P2320005500 | 1 | GUARD | XJ | |
36.52 SEK | ||
| 42 | P2320005400 | 1 | RUBBER PAD | XJ | |
17.34 SEK | ||
| 43 | 9R207475 | 1 | CONTACT | XJ | |
238.60 SEK | ||
| 44 | 9R207471 | 2 | FOOT | XJ | |
17.34 SEK | ||
| 45 | P2840001065 | 1 | NOSE | XJ | |
1224.98 SEK | ||
| 46 | 9R195545 | 4 | SCREW | M6x1.0x20 | XJ | |
19.00 SEK | |
| 47 | P2325203662 | 1 | PIVOT | XJ | |
17.34 SEK | ||
| 48 | 9R202137 | 2 | NUT | M5 x 0.8 | XJ | |
19.00 SEK | |
| 49 | 188721 | 1 | DOOR | XJ | |
458.79 SEK | ||
| 50 | 184434 | 1 | O RING | XJ | |
19.00 SEK | ||
| 51 | S06P000300 | 2 | O RING | XJ | |
36.52 SEK | ||
| 52 | MRG008819 | 1 | O RING | XJ | |
36.52 SEK | ||
| 53 | P2325504962 | 1 | PISTON | XJ | |
83.23 SEK | ||
| 54 | P2325205062 | 1 | SPRING | XJ | |
17.34 SEK | ||
| 55 | P2322005100 | 1 | BUMPER | XJ | |
17.34 SEK | ||
| 56 | P2325205262 | 1 | COVER | XJ | |
17.34 SEK | ||
| 57 | S15202800 | 1 | RING | XJ | |
19.00 SEK | ||
| 58 | 9R203788 | 3 | SPIROL PIN | M3X30 MM | XJ | |
19.00 SEK | |
| 59 | 174073 | 1 | O RING | 2.05x2.62 | XJ | |
19.00 SEK | |
| 60 | 174070 | 1 | PIN | M3x30mm | XJ | |
19.00 SEK | |
| 61 | 174067 | 1 | O RING | 45.7mm x 2.62mm | XJ | |
17.34 SEK | |
| 62 | 9R209578 | 1 | END CAP | XJ | |
91.12 SEK | ||
| 63 | 175582 | 1 | SEAL | XJ | |
17.34 SEK | ||
| 64 | 175583 | 1 | HOOK | XJ | |
28.25 SEK | ||
| 65 | 175557 | 1 | O RING | XJ | |
19.00 SEK | ||
| 66 | 175585 | 1 | CAP | XJ | |
17.34 SEK | ||
| 67 | 175586 | 1 | RING | XJ | |
19.00 SEK | ||
| 68 | 9R195380 | 1 | COVER | 1/4NPT | XJ | |
19.00 SEK | |
| 69 | 159977 | 1 | ADAPTOR | XJ | |
26.07 SEK | ||
| 70 | P2840002566 | 1 | COVER | XJ | |
105.21 SEK | ||
| 71 | 195018 | 1 | CAP | XJ | ||||
| 72 | 191794 | 1 | SPRING | XJ | |
19.00 SEK | ||
| 73 | P2840002366 | 1 | HOLDER | XJ | |
47.08 SEK | ||
| 74 | P2840002466 | 1 | ADJUSTER | XJ | |
17.34 SEK | ||
| 75 | P2842003400 | 1 | BUSH | XJ | |
19.00 SEK | ||
| 76 | P2845202662 | 1 | PIN | XJ | |
17.34 SEK | ||
| 77 | P2840002266 | 1 | MAGAZINE | XJ | 216.24 SEK | |||
| 79 | 184455 | 3 | SCREW | XJ | |
19.00 SEK |
* Alla priser är rekommenderade listpriser exkl. moms och frakt. Dessa kan variera i marknaden. Vi förbehåller oss rätten att ändra priser och villkor utan förvarning.
