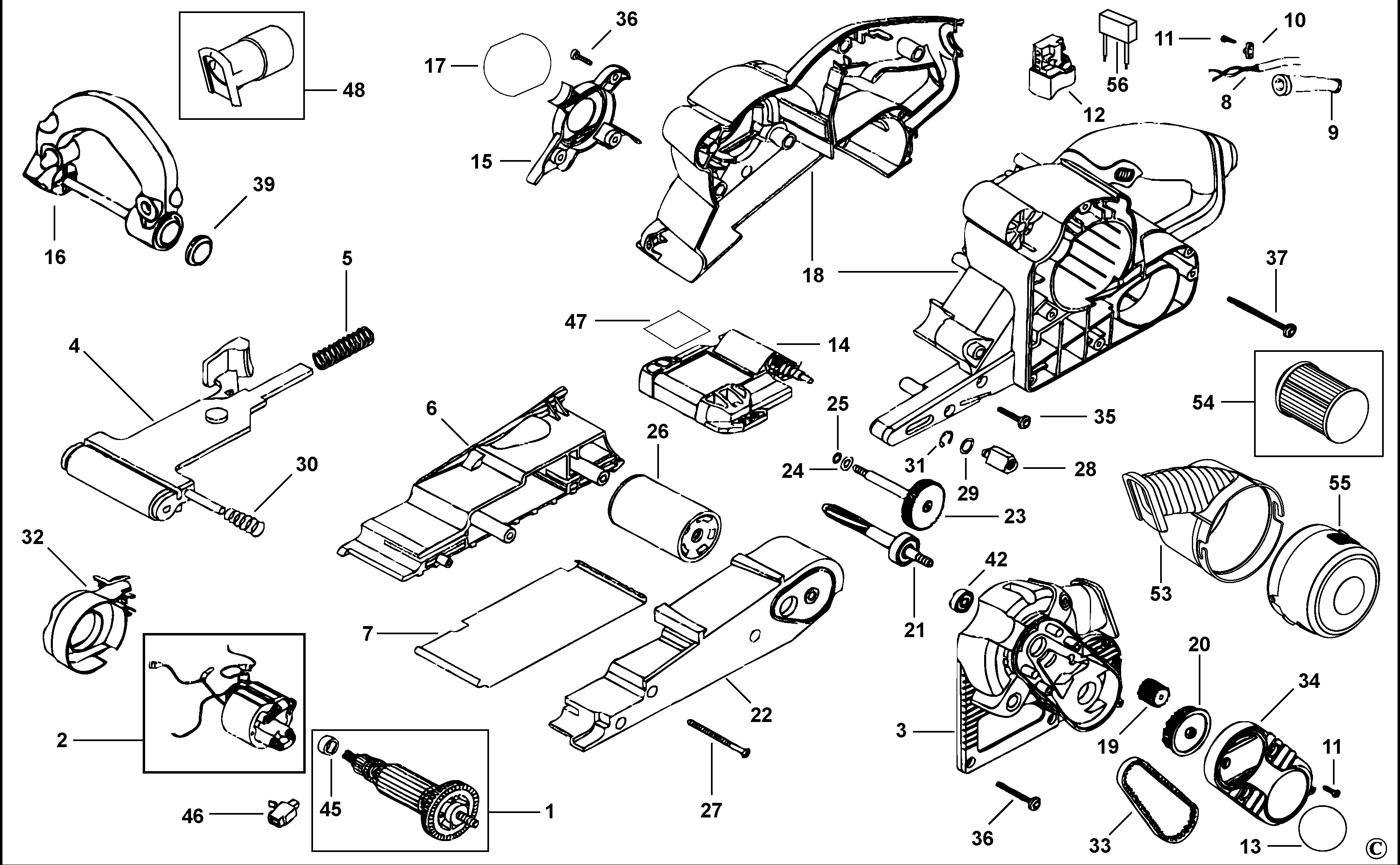

KA88 BELT SANDER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90578779 | 1 | ARMATURE SA | XE | |||
| 2 | 90595604 | 1 | FIELD SA | XE | |||
| 3 | 587202-00 | 1 | COVER | XE | |||
| 4 | 589384-00N | 1 | CARRIER SA | XE | |||
| 5 | 587248-00 | 1 | SPRING | XE | |||
| 6 | 587207-01 | 1 | COVER | XE | |||
| 7 | 587249-00 | 1 | SANDING PLATE | XE | |||
| 9 | 148481-00 | 1 | CORD PROTECTOR | XE | |||
| 10 | 329301-00 | 1 | CORD CLAMP | XE | |||
| 11 | 330019-64 | 5 | SCREW | XE | |||
| 12 | 90564460 | 1 | SWITCH SA | XE | |||
| 14 | 90568246 | 1 | COVER SA | XE | |||
| 15 | 587209-01 | 1 | COVER | XE | |||
| 16 | 90617061 | 1 | HANDLE SA | XE | |||
| 18 | 90568240 | 1 | CLAMSHELL SET | XE | |||
| 19 | 587261-00 | 1 | DRIVE PULLEY | XE | |||
| 20 | 587262-00 | 1 | DRIVE PULLEY | From DC 2011 09-58 | XE | ||
| 20 | 90511221 | 1 | PULLEY | Up to DC 2011 08-58 | XE | ||
| 21 | 588489-00 | 1 | SHAFT SA | From DC 2011 09-58 | XE | ||
| 21 | 90564691 | 1 | SHAFT SA | Up to DC 2011 08-58 | XE | ||
| 22 | 90566479 | 1 | MOUNTING BRACKET | XE | |||
| 23 | 588477-00 | 1 | DRIVE SHAFT | XE | |||
| 24 | 587230-00 | 1 | WASHER THRUST | XE | |||
| 25 | 587229-00 | 1 | WASHER THRUST | XE | |||
| 26 | 90514806 | 1 | DRIVE ROLLER | XE | |||
| 27 | 330065-16 | 2 | SCREW | XE | |||
| 28 | 587224-00 | 1 | KNOB SA | XE | |||
| 29 | 148902-00 | 1 | WASHER | XE | |||
| 30 | 477505-00 | 1 | SPRING | XE | |||
| 31 | 122198-00 | 1 | RETAINER | XE | |||
| 32 | 587203-01 | 1 | COVER | XE | |||
| 33 | 587263-00 | 1 | BELT | XE | |||
| 34 | 587204-01 | 1 | COVER BELT | XE | |||
| 35 | 330065-06 | 3 | SCREW | XE | |||
| 36 | 330065-08 | 12 | SCREW | M4x18 T20 | XE | ||
| 37 | 330065-12 | 2 | SCREW | XE | |||
| 39 | 590465-00 | 1 | INSERT | XE | |||
| 42 | 90566481 | 1 | BEARING | XE | |||
| 45 | 90532404 | 1 | BEARING | XE | |||
| 46 | 90568241 | 1 | BRUSH PAIR 230V SA | XE | |||
| 47 | 587266-00 | 1 | LABEL | XE | |||
| 48 | 587843-00 | 1 | VACUUM ADAPTOR | XE | |||
| 53 | 90502693N | 1 | CANISTER | KIT | Inc 53-54-55 | XE | |
| 54 | 90501441N | 1 | FILTER | XE | |||
| 55 | 90501537 | 1 | BOWL | XE | |||
| 56 | 579302-02 | 1 | CAPACITOR | XE |
