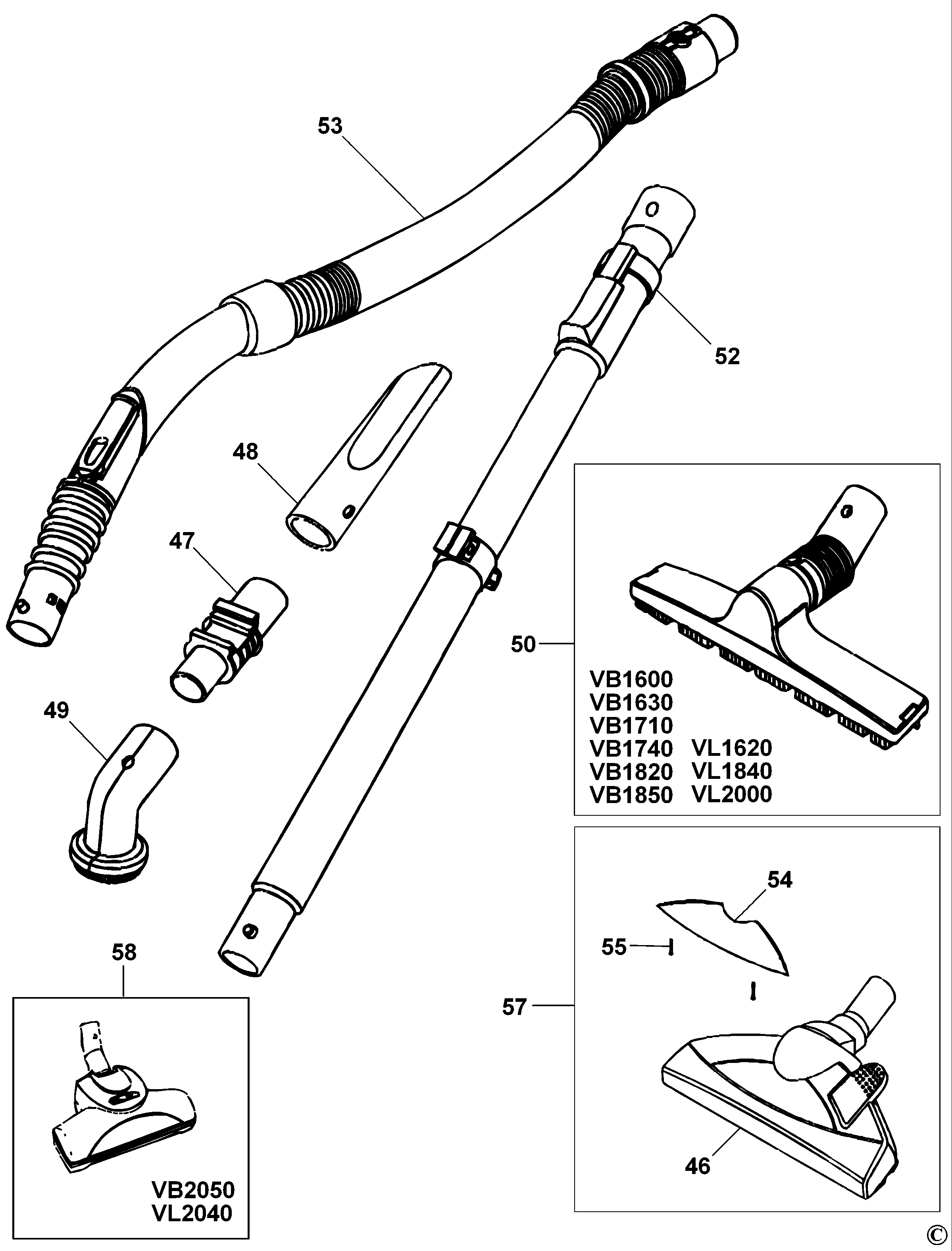

VL1840 VACUUM CLEANER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 583108-03 | 1 | HOUSING LOWER | Blue | XE | ||
| 2 | 583112-03 | 2 | WHEEL REAR | XE | |||
| 3 | 583117-13 | 1 | COVER | XE | |||
| 4 | 585536-00 | 1 | VALVE | XE | |||
| 5 | 5106260-00 | 1 | WHEEL SA | XE | |||
| 6 | 90501664 | 1 | PCB SA | XE | |||
| 7 | 000000-00 | 1 | NO LONGER AVAILABLE | XE | |||
| 8 | 585462-03 | 1 | CLIP SA | XE | |||
| 9 | 583405-03 | 1 | LATCH | XE | |||
| 10 | 585460-00 | 1 | SPRING | XE | |||
| 11 | 583129-00 | 1 | TUBE | XE | |||
| 12 | 585579-00 | 1 | SUPPORT | XE | |||
| 13 | 583135-03 | 1 | ACTUATOR | XE | |||
| 14 | 583132-03 | 1 | ACTUATOR | XE | |||
| 15 | 583137-00 | 1 | SWITCH | XE | |||
| 16 | 583140-03 | 1 | SLIDER | Light Grey | XE | ||
| 17 | 586504-00 | 1 | RETAINER | XE | |||
| 18 | 584651-12 | 1 | HANDLE | Purple | XE | ||
| 19 | 000000-00 | 1 | NO LONGER AVAILABLE | XE | |||
| 21 | 585578-01 | 1 | MOTOR SA | 1800 W | XE | ||
| 22 | 583120-01 | 1 | MOUNT | XE | |||
| 23 | 000000-00 | 1 | NO LONGER AVAILABLE | XE | |||
| 24 | 583146-00 | 1 | FOAM | XE | |||
| 25 | 000000-00 | 1 | NO LONGER AVAILABLE | XE | |||
| 26 | 585535-00 | 12 | SCREW | No6 x 17mm | XE | ||
| 29 | 5106279-02 | 1 | COVER SA | Purple | XE | ||
| 31 | 583404-01 | 1 | MOUNT | XE | |||
| 32 | 583402-00 | 1 | SUPPORT | XE | |||
| 33 | 583123-00 | 1 | COVER HOUSING | XE | |||
| 34 | 585535-00 | 3 | SCREW | No6 x 17mm | XE | ||
| 35 | 588280-00 | 1 | FILTER | VLF10 | XE | ||
| 36 | 583138-10 | 1 | DOOR | Silver | XE | ||
| 37 | 583136-00 | 2 | SPRING | XE | |||
| 38 | 588187-00 | 1 | WASHER LOCK | XE | |||
| 39 | 583130-00 | 1 | SEAL | XE | |||
| 40 | 585622-00 | 1 | RETAINER | XE | |||
| 41 | 585535-01 | 1 | SCREW | No6 x 12mm | XE | ||
| 42 | 583144-00 | 1 | DUST COLLECTOR | XE | |||
| 43 | 583156-00 | 1 | INDICATOR | XE | |||
| 44 | 585248-03 | 1 | FILTER | XE | |||
| 45 | 590699-00 | 1 | FILTER | XE | |||
| 46 | 5106261-00 | 1 | HEAD SA | XE | |||
| 47 | 585244-00 | 1 | HOLDER | XE | |||
| 48 | 585131-00 | 1 | TOOL CREVICE | XE | |||
| 49 | 5106265-00 | 1 | BRUSH SA | XE | |||
| 50 | 5106240-00 | 1 | HEAD SA | XE | |||
| 52 | 5106232-00 | 1 | VACUUM TUBE SA | XE | |||
| 53 | 5106259-06 | 1 | HOSE SA | XE | |||
| 54 | 585944-03 | 1 | BRAND LABEL | XE | |||
| 55 | 585535-01 | 2 | SCREW | No6 x 12mm | XE | ||
| 56 | 583400-00 | 1 | DEFLECTOR | XE | |||
| 57 | 5106262-06 | 1 | HEAD SA | XE |
