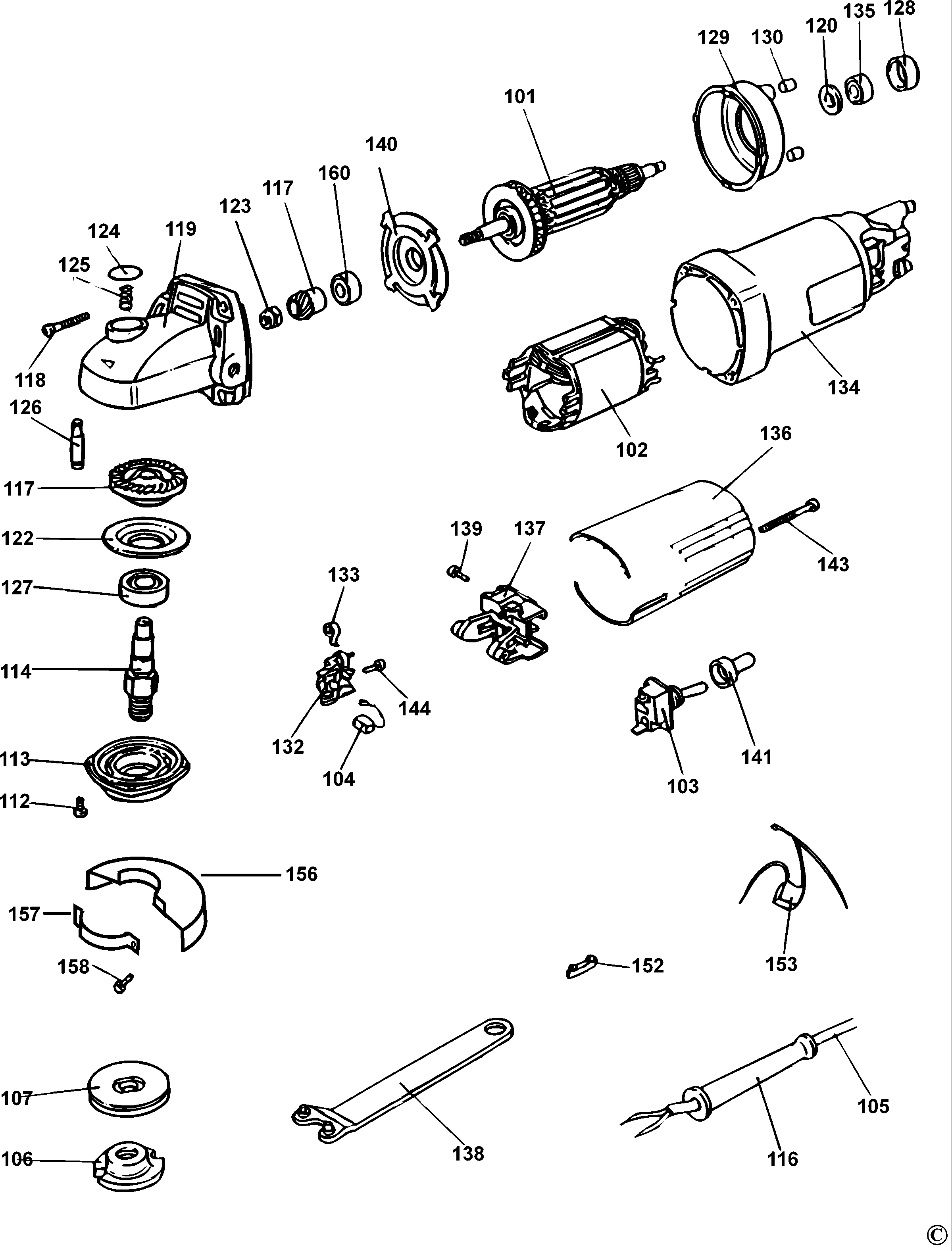

KG15 ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004745-98 | 1 | ADAPTOR | XJ | |||
| 104 | 939539-01 | 2 | BRUSH CUT OFF | XJ | |||
| 106 | 622208-00 | 1 | OUTER FLANGE | XJ | |||
| 107 | 659110-00 | 1 | INNER FLANGE | XJ | |||
| 112 | 562160-07 | 4 | SCREW | XJ | |||
| 113 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 114 | 622210-00 | 1 | SPINDLE | XJ | |||
| 116 | N542553 | 1 | CORD PROTECTOR | XJ | |||
| 116 | N542553 | 1 | CORD PROTECTOR | XJ | |||
| 117 | 661243-00 | 1 | GEAR & PINION | XJ | |||
| 118 | 562097-01 | 4 | SCREW | XJ | |||
| 119 | 562304-01SV | 1 | GEARCASE SA | XJ | |||
| 120 | 398906-00 | 1 | SPACER INSULATING | XJ | |||
| 122 | 945299-00 | 1 | FLANGE | XJ | |||
| 123 | 945292-00 | 1 | NUT | XJ | |||
| 124 | 944575-00 | 1 | BUTTON | XJ | |||
| 125 | 562210-00 | 1 | SPRING | XJ | |||
| 126 | 944571-00 | 1 | SPINDLE LOCK | XJ | |||
| 127 | 605040-22 | 1 | BEARING | XJ | |||
| 128 | 930275-00 | 1 | SLEEVE | XJ | |||
| 129 | 401623-00 | 1 | BAFFLE | XJ | |||
| 130 | 949638-01 | 2 | BUFFER | XJ | |||
| 132 | 395986-00 | 2 | BRUSH HOLDER SA | XJ | |||
| 133 | 562204-00 | 2 | SPRING | XJ | |||
| 134 | 944580-02 | 1 | FIELDCASE | XJ | |||
| 135 | 605040-02 | 1 | BEARING | XJ | |||
| 136 | 562158-00 | 1 | HANDLE | XJ | |||
| 137 | 397701-00 | 1 | SWITCH SUPPORT | XJ | |||
| 138 | 401253-00 | 1 | WRENCH ROUND-PINS | XJ | |||
| 139 | 562097-05 | 1 | SCREW | XJ | |||
| 140 | 401622-01 | 1 | FLANGE | XJ | |||
| 141 | 943254-00 | 1 | SWITCH COVER | XJ | |||
| 143 | 562097-02 | 2 | SCREW | XJ | |||
| 144 | 562097-00 | 2 | SCREW | XJ | |||
| 152 | 930187-00 | 1 | TERMINAL | XJ | |||
| 156 | 562182-00 | 1 | GUARD | XJ | |||
| 157 | 562183-00 | 1 | STRAP | XJ | |||
| 158 | 562160-01 | 2 | SCREW | XJ | |||
| 160 | N110359 | 1 | BEARING | XJ |
