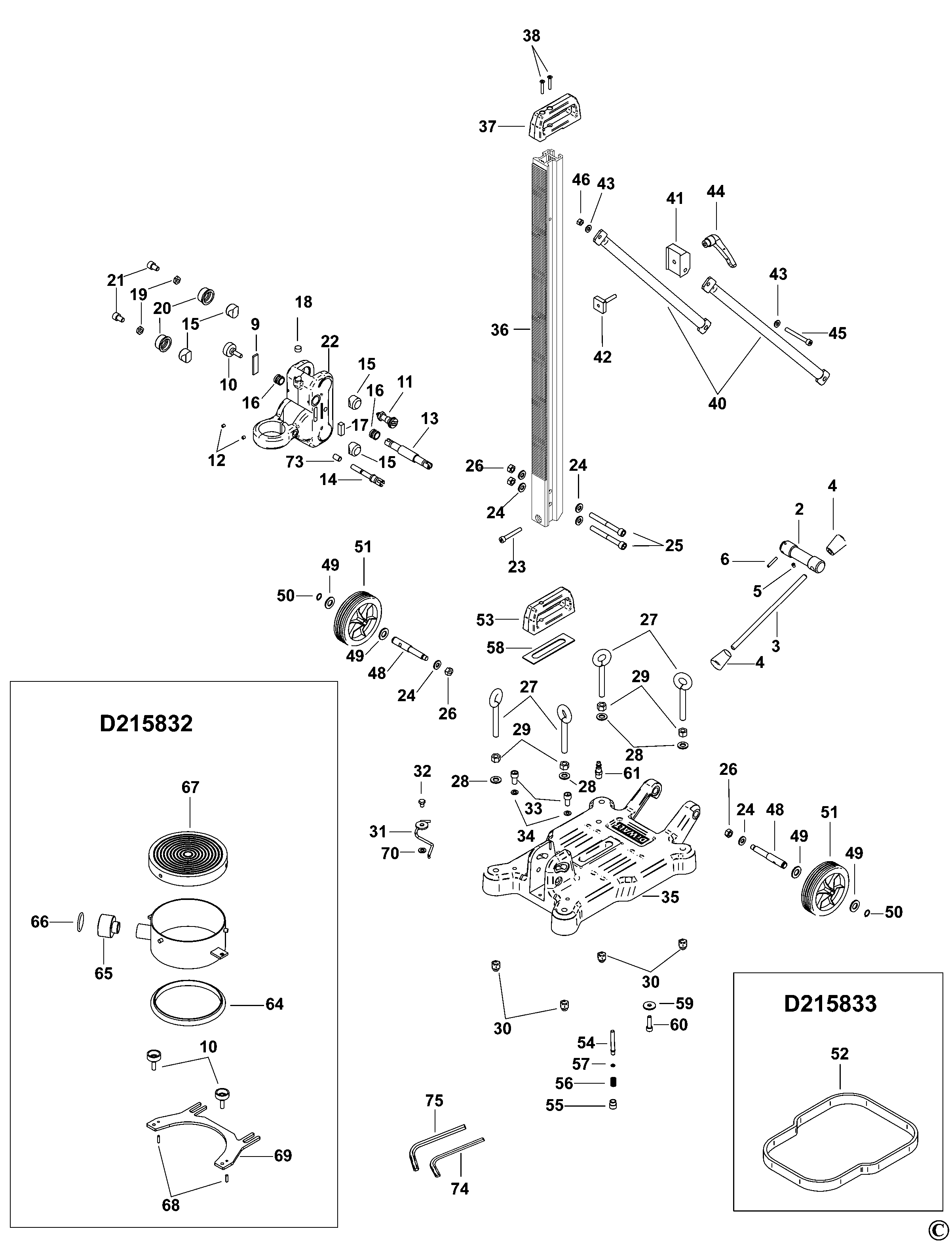

D215831 DRILL STAND Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | 1002936-00 | 1 | HANDLE | XJ | |||
| 3 | 1002937-00 | 1 | LEVER | XJ | |||
| 4 | 1002935-00 | 2 | CONE | XJ | |||
| 5 | 1002933-00 | 1 | CLIP | XJ | |||
| 6 | 1002927-00 | 1 | PIN | XJ | |||
| 9 | 1003204-00 | 1 | PLATE | XJ | |||
| 10 | 1003027-00 | 3 | LOCK SCREW | M8 x 32 | XJ | ||
| 11 | 1002942-00 | 1 | BOLT | XJ | |||
| 12 | 1002985-00 | 2 | GRUB SCREW | M6 x 8 | XJ | ||
| 13 | 1002943-00 | 1 | PINION | XJ | |||
| 14 | 1003002-00 | 1 | LOCKING SCREW | XJ | |||
| 15 | 1002938-00 | 1 | THRUST PLATE | XJ | |||
| 16 | 1002939-00 | 2 | BEARING BUSH | XJ | |||
| 17 | 1002931-00 | 1 | LEVEL | XJ | |||
| 18 | 1002932-00 | 1 | LEVEL | XJ | |||
| 19 | 1002961-00 | 2 | NUT | M10 | XJ | ||
| 20 | 1002979-00 | 2 | CAP | XJ | |||
| 21 | 1002964-00 | 2 | SCREW | M10 x 16 | XJ | ||
| 22 | 1003009-00 | 1 | SLIDER | XJ | |||
| 23 | 1002987-00 | 1 | BOLT | M8 x 55 | XJ | ||
| 24 | 1002990-00 | 10 | WASHER | 10.5 DIA | XJ | ||
| 25 | 1002988-00 | 2 | BOLT | M10 x 95 | XJ | ||
| 26 | 1002960-00 | 4 | NUT | M10 | XJ | ||
| 27 | 1002929-00 | 4 | BOLT | M12 x 85 | XJ | ||
| 28 | 1002930-00 | 4 | WASHER | XJ | |||
| 29 | 1002928-00 | 4 | NUT | M12 | XJ | ||
| 30 | 1002959-00 | 4 | STOP NUT | M12 | XJ | ||
| 31 | 1003004-00 | 1 | POINTER | XJ | |||
| 32 | 1002986-00 | 1 | SCREW | M8 x 10 | XJ | ||
| 33 | 1002963-00 | 2 | SCREW | M10 x 20 | XJ | ||
| 34 | 1002969-00 | 2 | WASHER | 10.5 DIA | XJ | ||
| 35 | 1004576-00 | 1 | BASE | XJ | |||
| 36 | 1003003-00 | 1 | COLUMN | XJ | |||
| 37 | 1003005-00 | 1 | HANDLE | XJ | |||
| 38 | 1002940-00 | 2 | SCREW | M6 x 30 | XJ | ||
| 40 | 1002981-00 | 2 | TUBE SUPPORT | XJ | |||
| 41 | 1003010-00 | 1 | HOLDER | XJ | |||
| 42 | 1003011-00 | 1 | LOCKING KNOB | XJ | |||
| 43 | 1002989-00 | 2 | WASHER | 8.4 DIA | XJ | ||
| 44 | 1002992-00 | 1 | HANDLE | M8 | XJ | ||
| 45 | 1002941-00 | 1 | BOLT | M8 x 70 | XJ | ||
| 46 | 1002965-00 | 1 | NUT | M8 | XJ | ||
| 48 | 1002982-00 | 2 | AXLE | XJ | |||
| 49 | 1002967-00 | 4 | WASHER | 15 DIA | XJ | ||
| 50 | 1002966-00 | 2 | SPRING CLIP | XJ | |||
| 51 | 1002977-00 | 2 | WHEEL | XJ | |||
| 52 | 1003008-00 | 1 | RUBBER SEAL | 25 x8x1040 | XJ | ||
| 53 | 1002980-00 | 1 | HANDLE | XJ | |||
| 54 | 1002983-00 | 1 | VALVE | XJ | |||
| 55 | 1002984-00 | 1 | PLUG | XJ | |||
| 56 | 1002976-00 | 1 | SPRING COMPRESSION | XJ | |||
| 57 | 1002974-00 | 1 | RING | XJ | |||
| 58 | 1002973-00 | 1 | SEAL | XJ | |||
| 59 | 1002968-00 | 1 | WASHER | XJ | |||
| 60 | 1002962-00 | 1 | SCREW | M8 x 30 | XJ | ||
| 61 | 1002975-00 | 1 | NIPPLE | XJ | |||
| 64 | 1002972-16 | 1 | SEAL | XJ | |||
| 65 | 1002673-00 | 1 | ADAPTOR | For dust exhauster | XJ | ||
| 66 | 1002971-00 | 1 | RING | XJ | |||
| 67 | 1002991-00 | 1 | RUBBER SEAL | XJ | |||
| 68 | 1002958-00 | 2 | PIN | 5 x 18 | XJ | ||
| 69 | 1003006-00 | 1 | BRACKET | XJ | |||
| 70 | 1002989-00 | 1 | WASHER | 8.4 DIA | XJ | ||
| 73 | 1002993-00 | 1 | INSERT | Helicoil - M10 x 30 | XJ | ||
| 74 | 1003202-00 | 1 | HEX KEY 6 MM | XJ | |||
| 75 | 1003203-00 | 1 | HEX KEY 8 MM | XJ |
