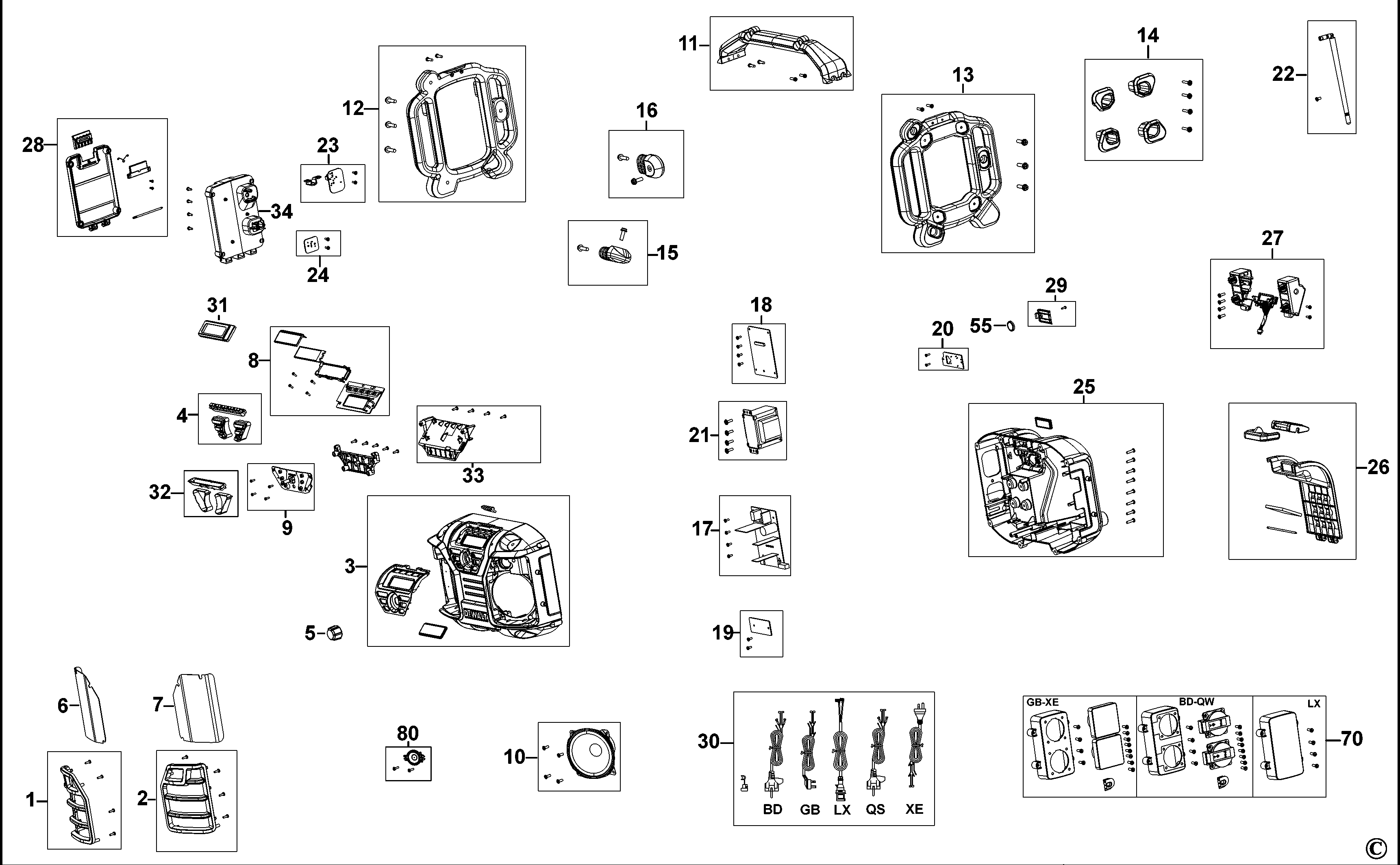

DCR017 SITE RADIO Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5140127-25 | 1 | FRAME LH | XE | |||
| 2 | 5140127-26 | 1 | FRAME RH | XE | |||
| 3 | 5140127-27 | 1 | HOUSING FRONT | XE | |||
| 4 | 1004691-08 | 1 | BUTTON SA | XE | |||
| 5 | 5140127-29 | 1 | KNOB | XE | |||
| 6 | 5140127-30 | 1 | GRILL | LEFT | XE | ||
| 7 | 5140127-31 | 1 | GRILL | RIGHT | XE | ||
| 8 | 1004691-09 | 1 | PCB SA | DISPLAY | XE | ||
| 9 | 1004691-10 | 1 | PCB SA | KEYPAD | XE | ||
| 10 | 5140127-34 | 2 | SPEAKER | XE | |||
| 11 | 5140127-35 | 1 | HANDLE | XE | |||
| 12 | 5140127-36 | 1 | CAGE | XE | |||
| 13 | 5140127-37 | 1 | CAGE | XE | |||
| 14 | 5140127-38 | 1 | KIT | XE | |||
| 15 | 5140127-39 | 4 | MOUNT SA | FRONT | XE | ||
| 16 | 5140127-40 | 2 | MOUNT SA | REAR | XE | ||
| 17 | 1004691-11 | 1 | PCB SA | POWER | XE | ||
| 18 | 1004691-12 | 1 | PCB SA | MAIN | XE | ||
| 19 | 1004691-13 | 1 | PCB SA | CONNECT | XE | ||
| 20 | 1004691-14 | 1 | PCB SA | BACK UP | XE | ||
| 22 | 1004691-17 | 1 | ANTENNA | DAB+ | XE | ||
| 23 | 1004691-18 | 1 | PCB SA | AUX | XE | ||
| 24 | 1004691-19 | 1 | PCB SA | USB | XE | ||
| 25 | 1004691-20 | 1 | HOUSING REAR | XE | |||
| 26 | 5140127-50 | 1 | DOOR | XE | |||
| 27 | 5140127-51 | 1 | BATTERY CONNECTOR | XE | |||
| 28 | 5140127-52 | 1 | COVER SA | ACCESSORY BOX | XE | ||
| 29 | 5140127-53 | 1 | DOOR | BATTERY BACKUP | XE | ||
| 31 | 1004692-26 | 1 | COVER | DISPLAY | XE | ||
| 32 | 5140127-95 | 1 | KEY HOLDER | KEY | XE | ||
| 33 | 5140127-96 | 1 | BRACKET | DISPLAY | XE | ||
| 34 | 5140127-97 | 1 | HOUSING | ACCESSORY BOX | XE | ||
| 55 | 5140112-26 | 1 | Battery | XE | |||
| 80 | 5140127-99 | 2 | SPEAKER | TWEETER | XE |
