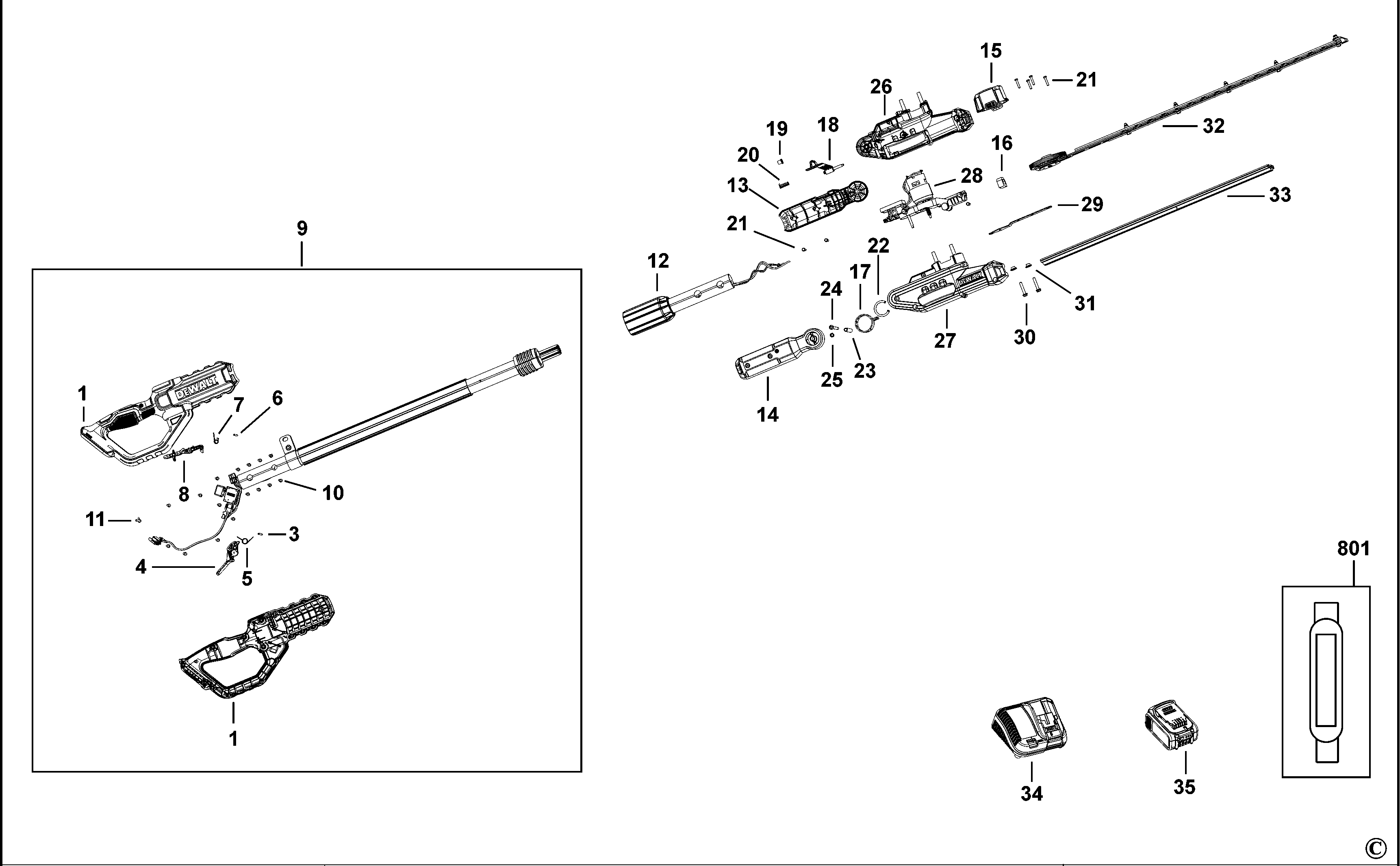

DCMPH566 HEDGE TRIMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N870427 | 1 | CLAMSHELL PAIR | XE | |||
| 3 | N670326 | 1 | PIVOT | XE | |||
| 4 | N646128 | 1 | TRIGGER | XE | |||
| 5 | N659016 | 1 | SPRING | XE | |||
| 6 | N664030 | 1 | PIVOT | XE | |||
| 7 | N664433 | 1 | SPRING | XE | |||
| 8 | N674967 | 1 | ACTUATOR | XE | |||
| 9 | N738134 | 1 | SWITCH SA | XE | |||
| 10 | 330019-03 | 16 | SCREW | XE | |||
| 11 | 330019-06 | 1 | SCREW | XE | |||
| 12 | N727014 | 1 | POLE PIECE SA | UPPER | XE | ||
| 13 | N695769 | 1 | PIVOT | XE | |||
| 14 | N695770 | 1 | PIVOT | XE | |||
| 15 | N702834 | 1 | CAP | XE | |||
| 16 | N692632 | 1 | FELT | XE | |||
| 17 | N683090 | 1 | RING | XE | |||
| 18 | N695743 | 1 | BUTTON | XE | |||
| 19 | N695742 | 1 | PIN | XE | |||
| 20 | N719624 | 12 | SCREW | XE | |||
| 21 | 90611830 | 12 | SCREW | XE | |||
| 22 | N715112 | 1 | WASHER | XE | |||
| 23 | N714562 | 1 | SLEEVE | XE | |||
| 24 | N753977 | 1 | SCREW | M5X65 | XE | ||
| 25 | N461154 | 1 | NUT | XE | |||
| 26 | N677751 | 1 | COVER | XE | |||
| 27 | N677752 | 1 | COVER | XE | |||
| 28 | N875115 | 1 | MOTOR SA | XE | |||
| 29 | 90570808 | 1 | PLATE | XE | |||
| 30 | N778918 | 1 | BOLT | XE | |||
| 31 | N603748 | 2 | SPACER | XE | |||
| 32 | N687442 | 1 | BLADE SA | XE | |||
| 33 | N767711 | 1 | SHEATH | XE | |||
| 34 | N406065 | 1 | CHARGER SA | DCMPH566L1 | XE | ||
| 35 | N891525 | 1 | BATTERY 18V - 3.0AH - 54WH | DCB187-XE | DCMPH566L1 | XE | |
| 801 | N502343 | 1 | STRAP | XE |
