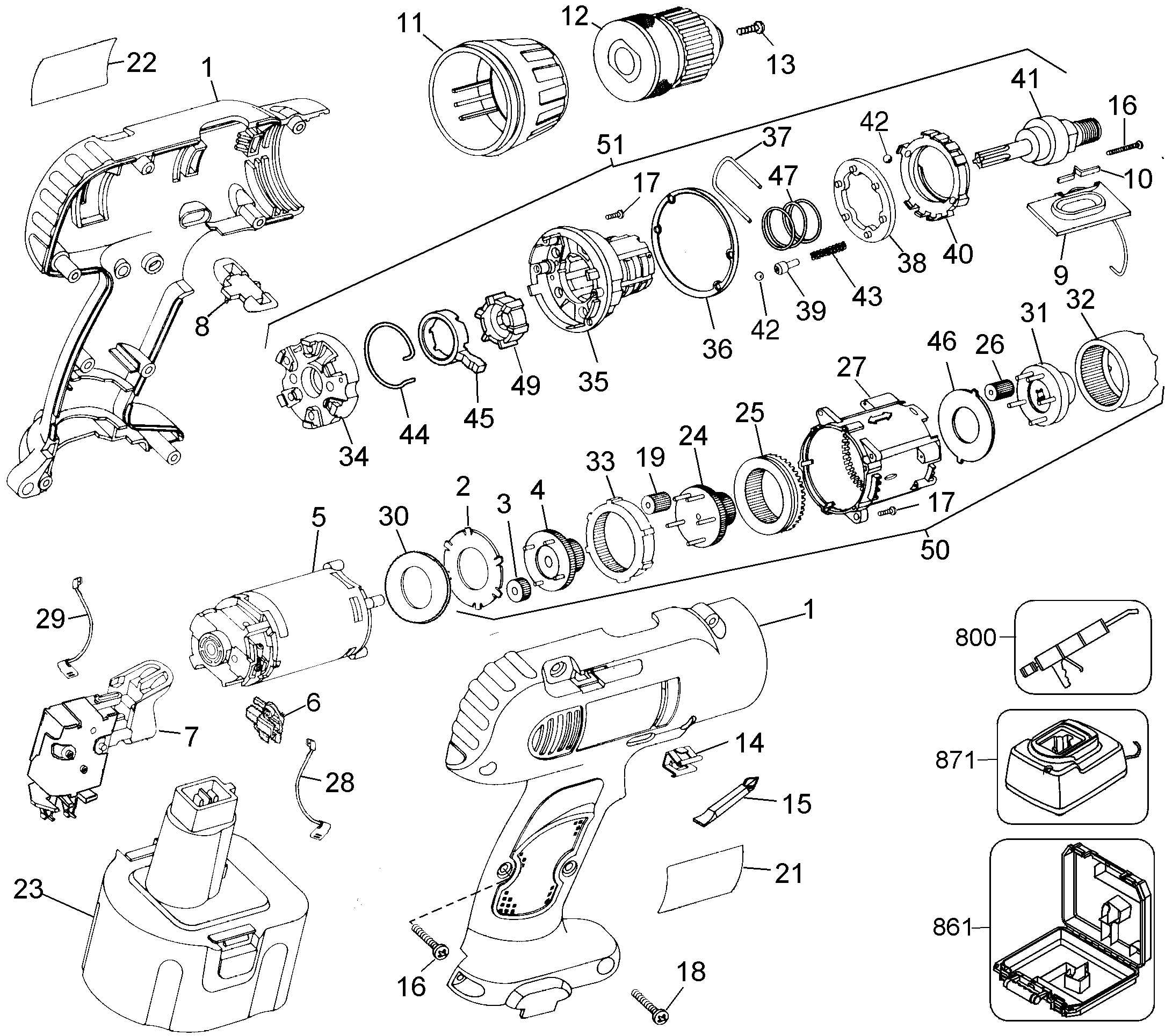

DW912K2 CORDLESS DRILL Type 5 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 392654-02SV | 1 | CLAMSHELL SET | XE | |||
| 2 | 798954-00 | 1 | WASHER | XE | |||
| 3 | 151936-02 | 5 | GEAR | XE | |||
| 4 | 385408-00SV | 1 | CARRIER | XE | |||
| 5 | 393111-05 | 1 | MOTOR & PINION | XE | |||
| 6 | 389025-00SV | 1 | BRUSH PAIR KIT | XE | |||
| 7 | 152274-19SV | 1 | SWITCH | XE | |||
| 8 | 151296-00 | 1 | SLIDER | XE | |||
| 9 | 153281-03 | 1 | SLIDER SA | XE | |||
| 10 | 144658-00 | 1 | SPRING | XE | |||
| 11 | 799013-01 | 1 | RING | XE | |||
| 12 | 330075-59 | 1 | KEYLESS CHUCK | 1/2CAP-1/2-20 HD-NPP | XE | ||
| 13 | 605256-01 | 1 | SCREW | XE | |||
| 14 | 148354-03 | 2 | HOLDER | XE | |||
| 15 | 607918-41 | 1 | BIT SCREWDRIVER | XE | |||
| 16 | 330019-00 | 4 | SCREW | M3x16 T10 PLASTITE | XE | ||
| 17 | 098091-10 | 6 | SCREW | XE | |||
| 18 | 330019-04 | 7 | SCREW | XE | |||
| 19 | N104678 | 5 | PLANET GEAR | XE | |||
| 21 | 386825-00 | 1 | NP:DW912-XE T5 | XE | |||
| 22 | 395657-00 | 1 | BRAND LABEL | XE | |||
| 23 | 152250-43 | 1 | PACK,BATTERY | DC9071 | XE | ||
| 24 | 385409-00 | 1 | CARRIER | XE | |||
| 25 | 805068-01 | 1 | GEAR | XE | |||
| 26 | 372274-00 | 5 | GEAR | XE | |||
| 27 | 798701-00 | 1 | GEARCASE | XE | |||
| 28 | 389025-00SV | 1 | BRUSH PAIR KIT | XE | |||
| 29 | 389025-00SV | 1 | BRUSH PAIR KIT | XE | |||
| 30 | 152482-00 | 1 | SEAL | XE | |||
| 31 | 386154-00 | 1 | CARRIER | XE | |||
| 32 | 392755-00 | 1 | GEAR | XE | |||
| 33 | 805063-02 | 1 | GEAR | XE | |||
| 34 | 370506-03 | 1 | END CAP | XE | |||
| 35 | 798966-01 | 1 | HOUSING SA | XE | |||
| 36 | 805004-00 | 1 | WASHER | XE | |||
| 37 | 798959-00 | 1 | CLIP | XE | |||
| 38 | 380792-00 | 1 | PLATE | XE | |||
| 39 | 380793-00 | 6 | PIN | XE | |||
| 40 | 798709-00 | 1 | NUT | XE | |||
| 41 | 385490-00 | 1 | SPINDLE SA | 1/2-20 TH. | XE | ||
| 42 | 386690-00 | 7 | BALL | STEEL, 5MM | XE | ||
| 43 | 152347-00 | 6 | SPRING | XE | |||
| 44 | 395300-00 | 1 | SPRING | XE | |||
| 45 | 384917-00 | 1 | CAM | XE | |||
| 46 | 798689-00 | 1 | WASHER | XE | |||
| 47 | 799981-00 | 1 | SPRING | XE | |||
| 49 | 384919-00 | 1 | RATCHET FIXED | XE | |||
| 50 | 380264-13SV | 1 | TRANSMISSION | XE | |||
| 51 | 385475-00 | 1 | COMBI MODULE | XE | |||
| 800 | N017298 | 1 | GREASE | G-2008 Molykote | XE | ||
| 861 | 381121-00 | 1 | KITBOX | XE | |||
| 871 | DE9107-XE | 1 | XR2 CHARGER | XE |
