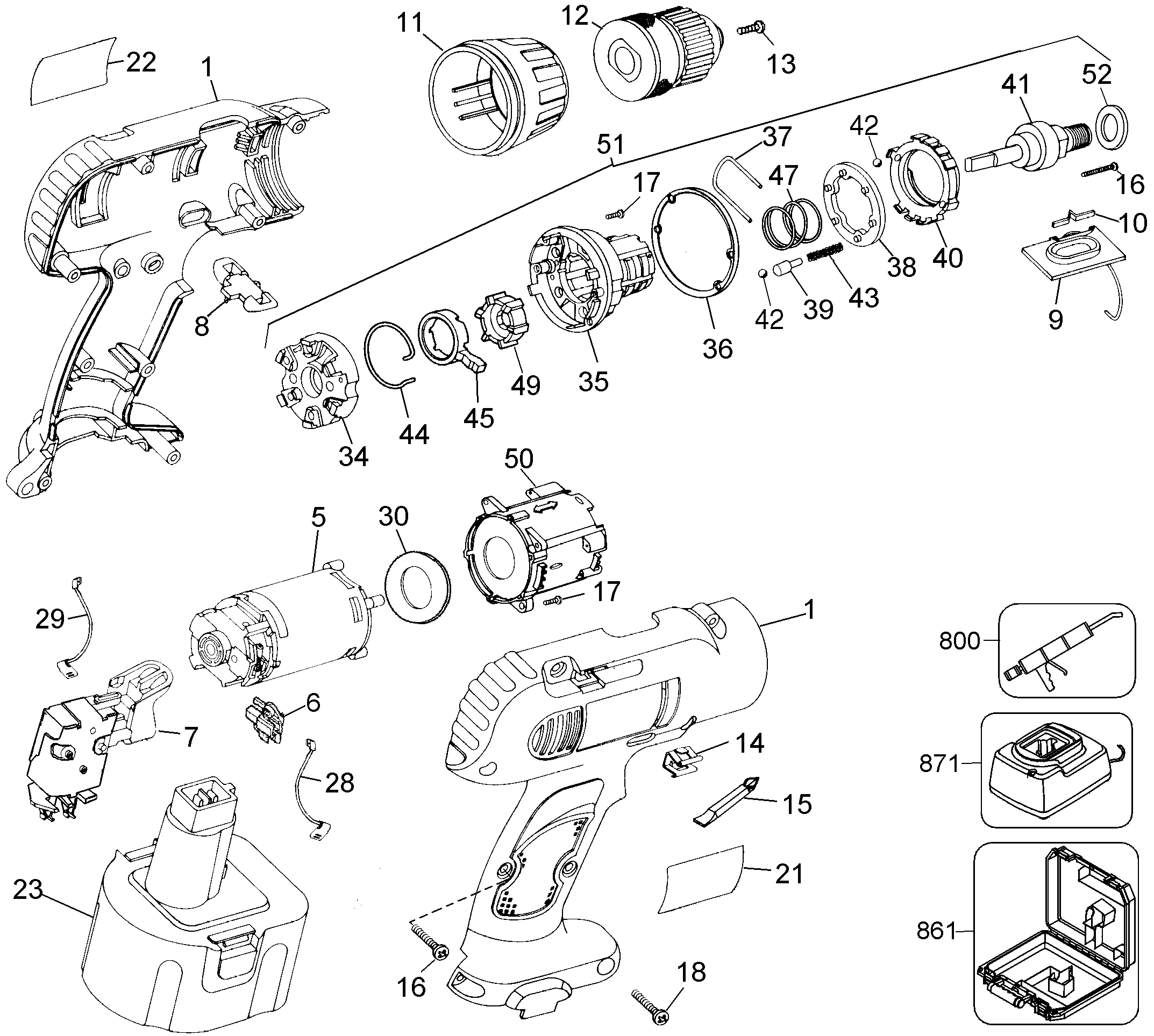

DW912K2 CORDLESS DRILL Type 7 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 397361-01 | 1 | CLAMSHELL SET | INC.8 | XE | ||
| 5 | 393111-05 | 1 | MOTOR & PINION | INC. 6,28,29 | XE | ||
| 6 | 389025-00SV | 1 | BRUSH PAIR KIT | INC. 28,29 | XE | ||
| 7 | 152274-19SV | 1 | SWITCH | XE | |||
| 8 | 391114-00 | 1 | BUTTON | XE | |||
| 9 | 153281-03 | 1 | SLIDER SA | XE | |||
| 10 | 144658-00 | 1 | SPRING | XE | |||
| 11 | 799013-01 | 1 | RING | XE | |||
| 12 | 330075-45 | 1 | CHUCK KEYLESS | 1/2 IN. CAP. | XE | ||
| 13 | 605256-01 | 1 | SCREW | L.H. THREAD | XE | ||
| 14 | 148354-03 | 2 | HOLDER | XE | |||
| 15 | 607918-41 | 1 | BIT SCREWDRIVER | XE | |||
| 16 | 682211-00 | 4 | SCREW | XE | |||
| 17 | 098091-10 | 6 | SCREW | XE | |||
| 18 | 330019-04 | 7 | SCREW | XE | |||
| 21 | 396385-00 | 1 | NP:DW912-XE T7 | XE | |||
| 22 | 395657-00 | 1 | BRAND LABEL | XE | |||
| 28 | 388913-00 | 1 | LEAD RED | XE | |||
| 29 | 388914-00 | 1 | LEAD BLACK | XE | |||
| 30 | 152482-00 | 1 | SEAL | XE | |||
| 34 | 370506-03 | 1 | END CAP | XE | |||
| 35 | 798966-01 | 1 | HOUSING SA | XE | |||
| 36 | 805004-00 | 1 | WASHER | XE | |||
| 37 | 798959-00 | 1 | CLIP | XE | |||
| 38 | 380792-00 | 1 | PLATE | XE | |||
| 39 | 387058-00 | 6 | PIN | XE | |||
| 40 | 798709-00 | 1 | NUT | XE | |||
| 41 | 391486-00 | 1 | SPINDLE SA | 1/2-20 THREAD | XE | ||
| 42 | 386690-00 | 1 | BALL | STEEL, 5MM | XE | ||
| 43 | 152347-00 | 6 | SPRING | XE | |||
| 44 | 395300-00 | 1 | SPRING | XE | |||
| 45 | 384917-00 | 1 | CAM | XE | |||
| 47 | 799981-00 | 1 | SPRING | XE | |||
| 49 | 384919-00 | 1 | RATCHET FIXED | XE | |||
| 50 | 390629-00 | 1 | TRANSMISSION SA | XE | |||
| 51 | 391106-12 | 1 | COMBI MODULE | INC. 17,34-43,45,47,49 | XE | ||
| 52 | 395468-00 | 1 | WASHER | XE | |||
| 800 | N017298 | 1 | GREASE | G-2008 Molykote | 8 OZ. | XE | |
| 861 | 381121-00 | 1 | KITBOX | XE |
