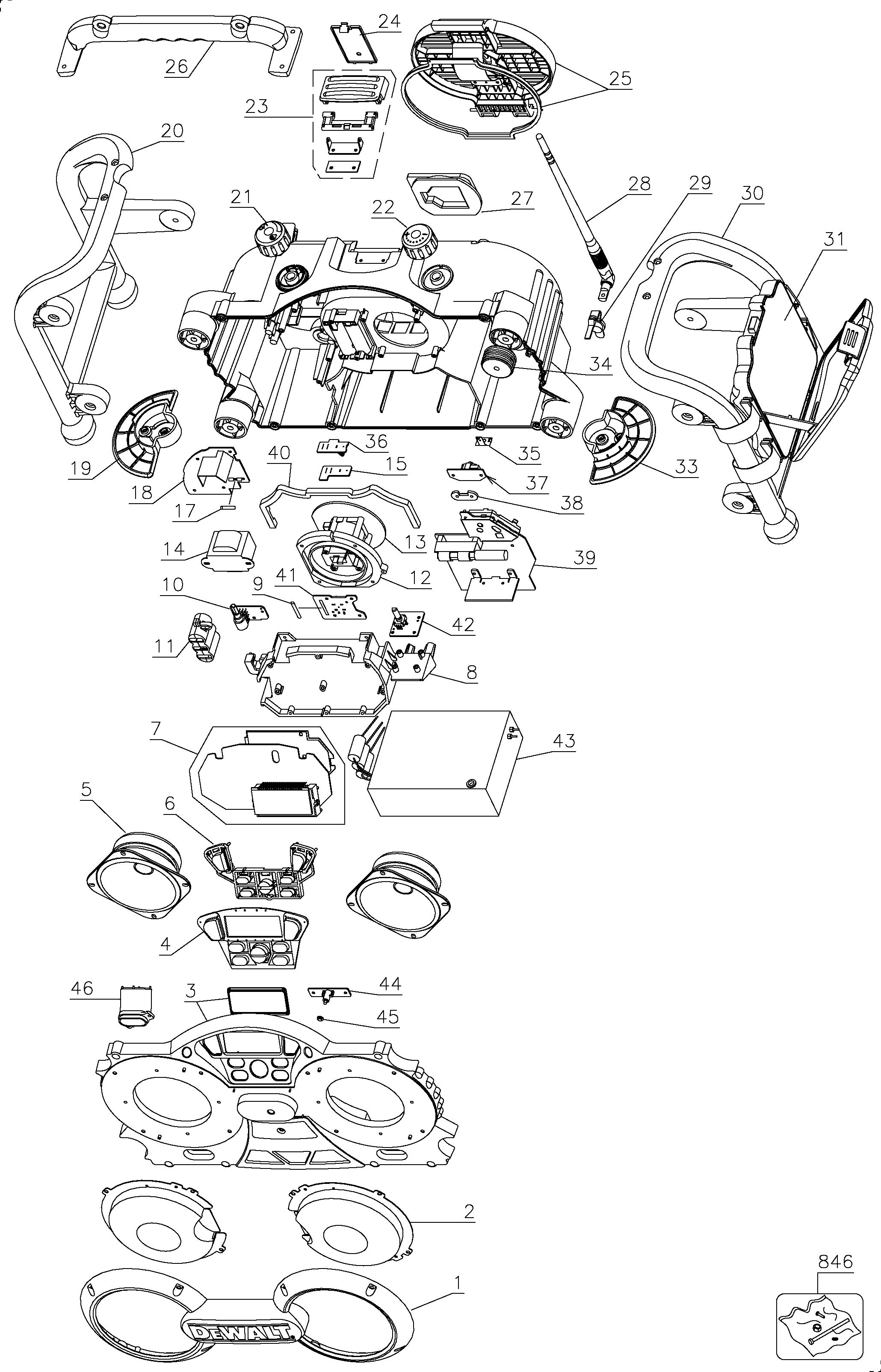

DC011 SITE RADIO Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5140019-01 | 1 | FRAME | GRILLE | XE | ||
| 2 | 5140019-02 | 2 | SPEAKER | XE | |||
| 3 | 596800-03 | 1 | PANEL FRONT | XE | |||
| 4 | 5140019-04 | 1 | BUTTON SA | CONTROL | XE | ||
| 5 | 5140019-05 | 2 | SPEAKER | 4-INCH | XE | ||
| 6 | 5140019-06 | 1 | BUTTON | BASE CONTROL | XE | ||
| 7 | 5140019-07 | 1 | CONTROL PWB ASSY | XE | |||
| 8 | 5140019-08 | 1 | CHASSIS | CONTROL | XE | ||
| 9 | 5140019-09 | 1 | FUSE | 5X20MM UL 3A 250V | XE | ||
| 10 | 5140019-10 | 1 | VOL PWB ASSY | XE | |||
| 11 | 5140019-11 | 1 | BOX | XE | |||
| 12 | 5140019-12 | 1 | HOLDER SA | PLATE | XE | ||
| 13 | 5140019-13 | 1 | HOLDER | XE | |||
| 14 | 596800-60 | 1 | TRANSFORMER | 230 Volt | XE | ||
| 15 | 596800-15 | 1 | PCB SA | XE | |||
| 17 | 5140019-17 | 1 | FUSE | 1.6A 250V T218 | XE | ||
| 18 | 596800-18 | 1 | BOARD | POWER SA | XE | ||
| 19 | 5140019-19 | 1 | BRACKET | XE | |||
| 20 | 5140019-20 | 1 | PROTECTOR | PROTECTION LEFT | XE | ||
| 21 | 5140019-21 | 1 | KNOB | XE | |||
| 22 | 5140019-22 | 1 | KNOB | XE | |||
| 23 | 5140019-23 | 1 | LATCH | XE | |||
| 24 | 5140019-24 | 1 | BATTERY COVER | AA BATTERY DOOR | XE | ||
| 25 | 5140019-25 | 1 | DOOR | CHARGER BATTERY DOOR | XE | ||
| 26 | 5140019-26 | 1 | HANDLE UPPER | XE | |||
| 27 | 5140019-27 | 1 | HOLDER,RUBBER | BATTERY RUBBER | XE | ||
| 28 | 5140019-28 | 1 | ANTENNA | FM ANT ASSY | XE | ||
| 29 | 5140019-29 | 1 | COVER | XE | |||
| 30 | 5140019-30 | 1 | PROTECTOR | PROTECTION RIGHT | XE | ||
| 31 | 5140019-31 | 1 | CASE | CD BAG ASSY | XE | ||
| 33 | 5140019-33 | 1 | BRACKET | XE | |||
| 34 | 429790-20 | 6 | SHOCK ABSORBER | XE | |||
| 35 | 5140019-35 | 1 | CONTACT | ANT. PLATE | XE | ||
| 36 | 596800-36 | 1 | PCB SA | BATTERY | XE | ||
| 37 | 596800-37 | 1 | PCB SA | AUX INPUT | XE | ||
| 38 | 5140019-38 | 1 | COVER | AUX. IN COVER HLDR. | XE | ||
| 39 | 596800-39 | 1 | PCB SA | MAIN BOARD | XE | ||
| 40 | 5140019-40 | 1 | SEAL | CHARGER SEALING | XE | ||
| 41 | 596800-41 | 1 | CONTACT | ASSEMBLY | XE | ||
| 42 | 596800-42 | 1 | PCB SA | TUNING ASSEMBLY | XE | ||
| 43 | 596800-43 | 1 | CHARGER SA | XE | |||
| 44 | 596800-44 | 1 | LED | XE | |||
| 45 | 5140019-45 | 1 | SEAL | LED | XE | ||
| 46 | 5140019-46 | 4 | DUCT | DUCT PORT ASSY | XE | ||
| 846 | 5140019-47 | 1 | PARTS PACK | SET OF SCREWS | XE |
