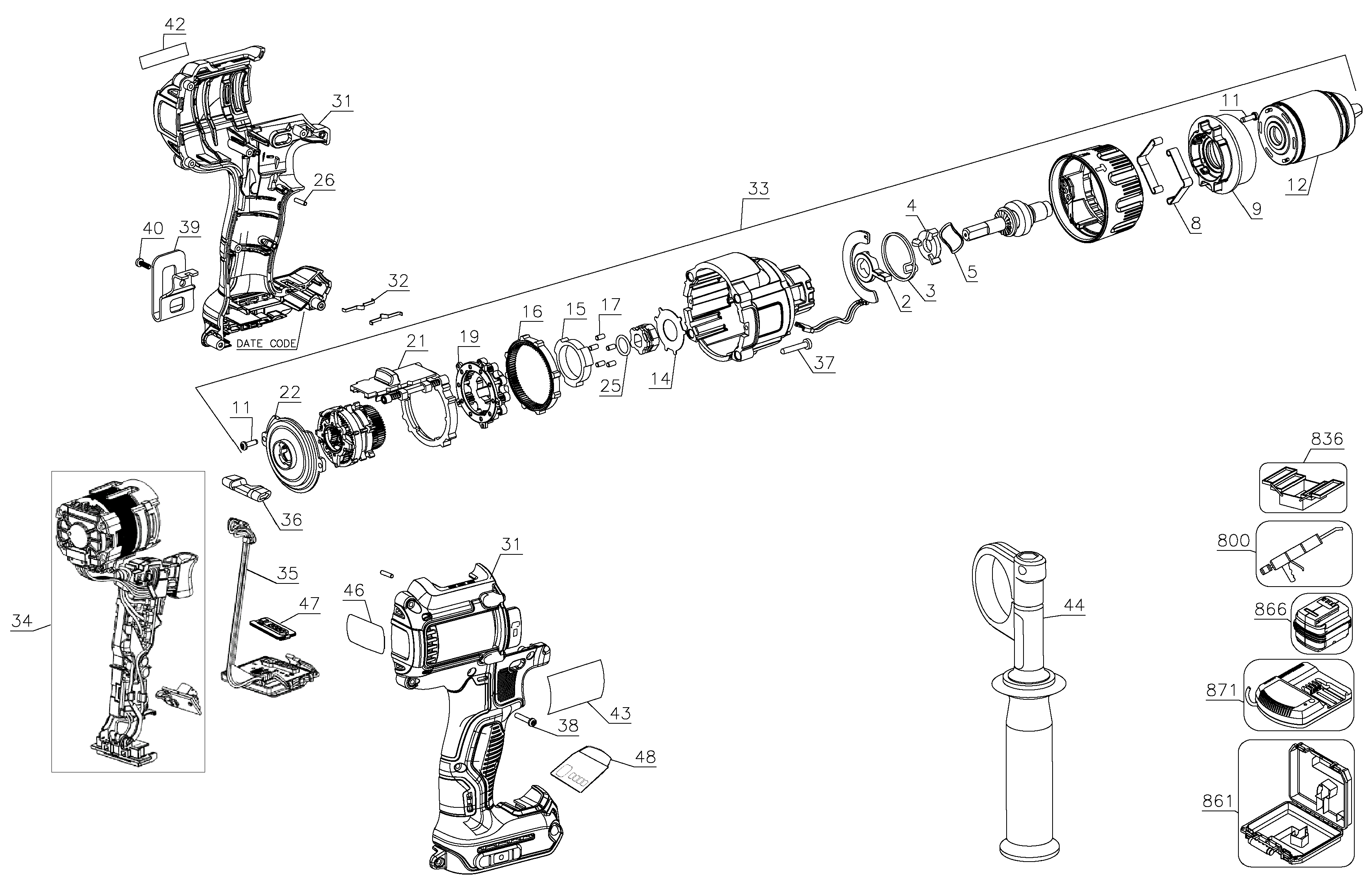

DCD997N XR 18V TC BL PREMIUM DRIL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | N146719 | 1 | LEVER | XE | |||
| 3 | N316079 | 1 | SPRING | XE | |||
| 4 | N149367 | 1 | GEAR | XE | |||
| 5 | N269741 | 1 | WASHER SPRING | XE | |||
| 8 | N165352 | 2 | DETENT | XE | |||
| 9 | N161216 | 1 | END CAP | XE | |||
| 11 | N281559 | 5 | SCREW | XE | |||
| 12 | N454251 | 1 | CHUCK KEYLESS | XE | |||
| 14 | 652378-00 | 1 | PLATE | XE | |||
| 15 | N195392 | 1 | LOCK RING | XE | |||
| 16 | N156100 | 1 | RING GEAR | OUTPUT | XE | ||
| 17 | 654110-00 | 5 | ROLLER | XE | |||
| 19 | N375865 | 1 | GEAR SA | XE | |||
| 21 | N375867 | 1 | SLIDER SA | XE | |||
| 22 | N375868 | 1 | BAFFLE SA | XE | |||
| 25 | N309119 | 1 | O RING | XE | |||
| 26 | N071836 | 2 | ROLL PIN | XE | |||
| 31 | N504297 | 1 | CLAMSHELL | XE | |||
| 32 | N014681 | 2 | LEAF SPRING | XE | |||
| 33 | N558298 | 1 | GEARCASE ASSY | XE | |||
| 34 | N559205 | 1 | MOTOR & SWITCH SA | XE | |||
| 35 | N559221 | 1 | MODULE | TOOL CONNECT | XE | ||
| 36 | N431555 | 1 | ACTUATOR FWD/REV | XE | |||
| 37 | 330019-52 | 4 | SCREW | XE | |||
| 38 | 682211-00 | 8 | SCREW | XE | |||
| 39 | N268241 | 1 | HOOK SA | BELT HOOK, W/SCREW AND INSTRUCTIONS | XE | ||
| 40 | N042665 | 2 | SCREW | XE | |||
| 42 | N516929 | 1 | IDENT LABEL | 18v XR | XE | ||
| 43 | N516574 | 1 | RATING LABEL | DCD997 Type 1 | XE | ||
| 44 | N433408 | 1 | SIDE HANDLE | Length 234 mm | XE | ||
| 46 | N513413 | 1 | LABEL | Tool Connect | XE | ||
| 47 | N470512 | 1 | SWITCH | TOOL CONNECT | XE | ||
| 48 | N485905 | 1 | LABEL | BLE selector label | XE | ||
| 800 | N017298 | 1 | GREASE | G-2008 Molykote | XE | ||
| 836 | 559662-99 | 1 | S.T.CHUCK REMOVAL JIG | NOT INCL. WITH UNIT | XE | ||
| 836 | 596004-99 | 1 | S.T.INSERT | NOT INCL. WITH UNIT | XE | ||
| 836 | N354959 | 1 | SERVICE TOOL | WIRE HARNESS | NOT INCL. WITH UNIT | XE | |
| 836 | 559661-99 | 1 | S.T.CHUCK REMOVAL JIG | NOT INCL. WITH UNIT | XE |
