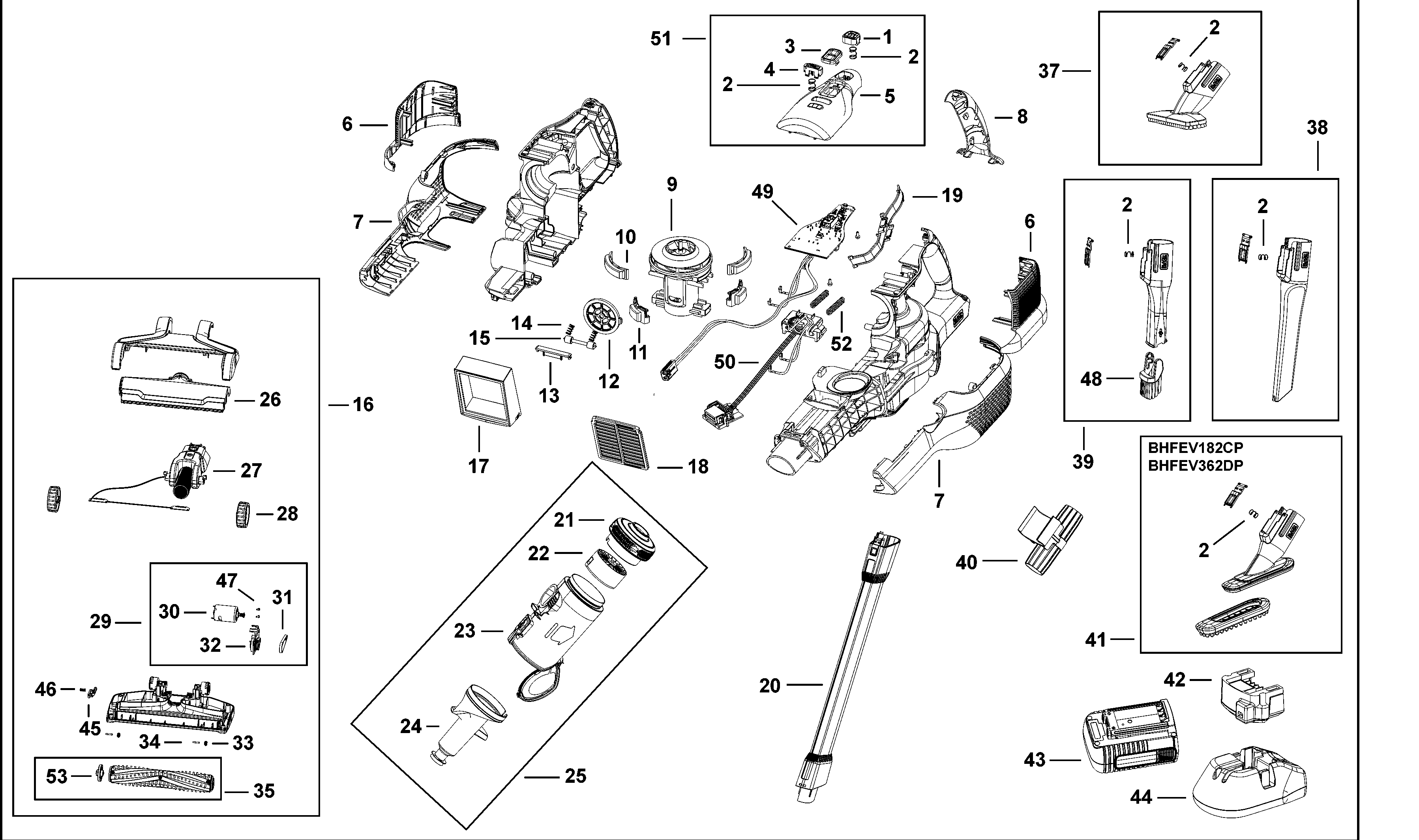

BHFEV182B STICK-VAC Type H1 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	General Description	Other Info	Markets
1	N636423	1	BUTTON			XJ
2	90627526	4	SPRING			XJ
3	N636424	1	SLIDER			XJ
4	N636425	1	BUTTON			XJ
5	N619154	1	COVER			XJ
6	N722849	1	COVER		BHFEV182B	XJ
7	N676904	1	COVER			XJ
8	N636426	1	HANDLE COVER			XJ
9	N925319	1	MOTOR SA			XJ
9	N687534	1	MOTOR SA			XJ
10	N661053	2	SUPPORT			XJ
11	N653723	2	SUPPORT			XJ
12	N632578	1	GUARD			XJ
13	N681439	1	COVER			XJ
14	N601518	2	SPRING			XJ
15	N655507	1	SHAFT			XJ
16	N765677	1	FOOT SA			XJ
17	N620175	1	Frame			XJ
18	N663973	1	GRILL			XJ
19	N645043	1	CLIP CABLE			XJ
20	N687799	1	TUBE SA		BHFEV182B	XJ
21	N925234	1	CLEANING PAD			XJ
21	N765293	1	CLEANING PAD			XJ
22	N665227	1	FILTER			XJ
23	N765294	1	BOWL		BHFEV182B	XJ
24	N819343	1	PRE-FILTER		BHFEV182B	XJ
25	N765315	1	FILTER SA		BHFEV182B	XJ
26	N783828	1	COVER			XJ
27	N765671	1	HOSE	LOWER	BHFEV182B	XJ
28	N639443	2	WHEEL			XJ
29	N925334	1	MOTOR SA			XJ
29	N765663	1	MOTOR SA		BHFEV182B	XJ
30	N687512	1	MOTOR & PINION			XJ
31	N609679	1	BELT			XJ
32	N924577	1	SUPPORT BRACKET			XJ
32	N765667	1	SUPPORT BRACKET			XJ
33	N675938	2	WHEEL			XJ
34	90608269	2	DOWEL			XJ
35	N764706	1	ROLLER		BHFEV182B	XJ
37	N764712	1	BRUSH	DUST		XJ
38	N764710	1	TOOL CREVICE			XJ
39	N764709	1	BRUSH			XJ
40	N741930	1	HOLDER			XJ
45	N573719	1	RELEASE			XJ
46	N676836	1	SPRING			XJ
47	311940-01	2	SCREW			XJ
48	N757182	1	BRUSH			XJ
49	N765674	1	PCB SA		BHFEV182B	XJ
49	N925318	1	PCB SA			XJ
50	N762274	1	CONNECTOR		BHFEV182B	XJ
51	N795792	1	COVER SA			XJ
52	5100035-03	2	SPRING			XJ
53	N569821	1	END CAP			XJ
