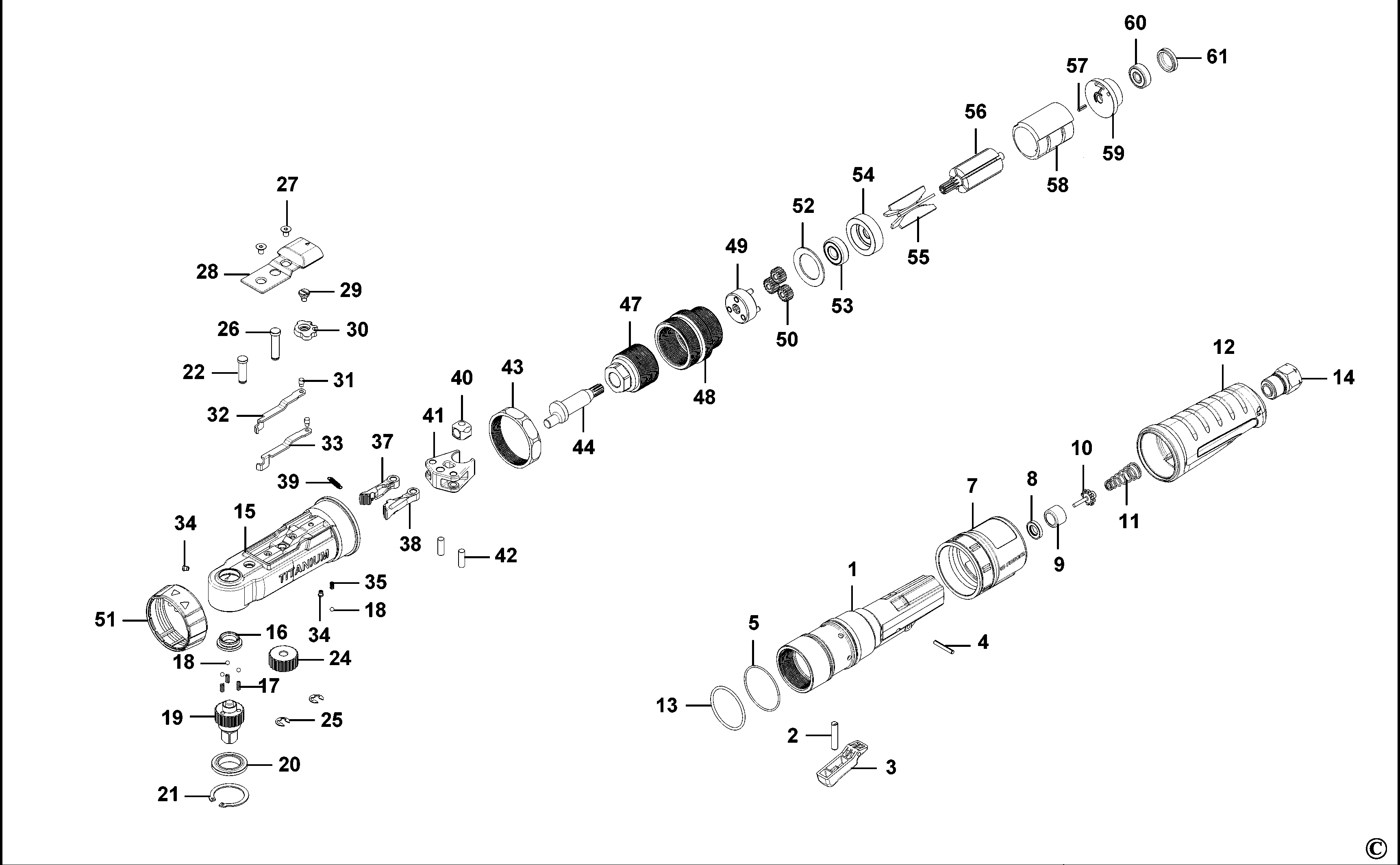

VR.JZ300F2 RATCHET Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 30H200451-01 | 1 | HOUSING MOTOR | XJ | |||
| 2 | 30Y201045 | 1 | VALVE NEEDLE | XJ | |||
| 3 | 30H200394 | 1 | TRIGGER | XJ | |||
| 4 | 30R200302 | 1 | SPIROL PIN | XJ | |||
| 5 | 30R200303 | 1 | O RING | XJ | |||
| 7 | 30H200390-01 | 1 | EXHAUST | XJ | |||
| 8 | 30Y200861 | 1 | SEAL | XJ | |||
| 9 | 30Y201046 | 1 | BUSHING | XJ | |||
| 10 | 30Y200863 | 1 | VALVE | XJ | |||
| 11 | 30Y201048 | 1 | VALVE SPRING | XJ | |||
| 12 | 30H200389 | 1 | GRIP | XJ | |||
| 13 | 30R200330 | 1 | O RING | XJ | |||
| 14 | 30Y201049 | 1 | INLET | XJ | |||
| 15 | 30H200391 | 1 | HOUSING | XJ | |||
| 16 | 30Y201050 | 1 | COLLAR | XJ | |||
| 17 | 30R200305 | 1 | SPRING | XJ | |||
| 18 | 30R200041 | 4 | BALL | XJ | |||
| 19 | 30G100010 | 1 | ANVIL ASSEMBLY | XJ | |||
| 20 | 30Y201051 | 1 | COLLAR | XJ | |||
| 21 | 30R200306 | 1 | RETAINER | XJ | |||
| 22 | 30Y201052 | 1 | PIN | XJ | |||
| 24 | 30G200148 | 1 | GEAR | XJ | |||
| 25 | 30R200308 | 2 | RETAINER | XJ | |||
| 26 | 30Y201053 | 1 | PIN | XJ | |||
| 27 | 30R200309 | 2 | BOLT | XJ | |||
| 28 | 30H200392 | 1 | CAP | XJ | |||
| 29 | 30Y201054 | 1 | BOLT | XJ | |||
| 30 | 30Y201055 | 1 | REVERSE VALVE | XJ | |||
| 31 | 30Y201056 | 2 | PIN | XJ | |||
| 32 | 30Y201057 | 1 | ROD RH | XJ | |||
| 33 | 30Y201058 | 1 | ROD LH | XJ | |||
| 34 | 30R200017 | 2 | STOP | XJ | |||
| 35 | 30R200314 | 1 | SPRING | XJ | |||
| 37 | 30G200149 | 1 | PAWL | XJ | |||
| 38 | 30G200150 | 1 | PAWL | XJ | |||
| 39 | 30Y201059 | 1 | SPRING | XJ | |||
| 40 | 30D200160 | 1 | BUSHING | XJ | |||
| 41 | 30D200161 | 1 | YOKE | XJ | |||
| 42 | 30Y201060 | 2 | PIN | XJ | |||
| 43 | 30Y201061 | 1 | LOCKING RING | XJ | |||
| 44 | 30D200162 | 1 | SHAFT | XJ | |||
| 47 | 30Y201064 | 1 | CONNECTOR | XJ | |||
| 48 | 30G200151 | 1 | GEAR | XJ | |||
| 49 | 30G100012 | 1 | GEAR SA | XJ | |||
| 50 | 30G200152 | 3 | GEAR | XJ | |||
| 51 | 30H200393 | 1 | REVERSER | XJ | |||
| 52 | 30Y201065 | 1 | WASHER | XJ | |||
| 53 | 30R200025 | 1 | BEARING | XJ | |||
| 54 | 30M200090 | 1 | END PANEL. FRONT | XJ | |||
| 55 | 30M200091 | 5 | ROTOR BLADE | XJ | |||
| 56 | 30M200092 | 1 | ROTOR | XJ | |||
| 57 | 30R200310 | 1 | SPIROL PIN | XJ | |||
| 58 | 30M200093 | 1 | CYLINDER | XJ | |||
| 59 | 30M200094 | 1 | END PANEL. REAR | XJ | |||
| 60 | 30R200311 | 1 | BEARING | XJ | |||
| 61 | 30Y201066 | 1 | CAP | XJ |
