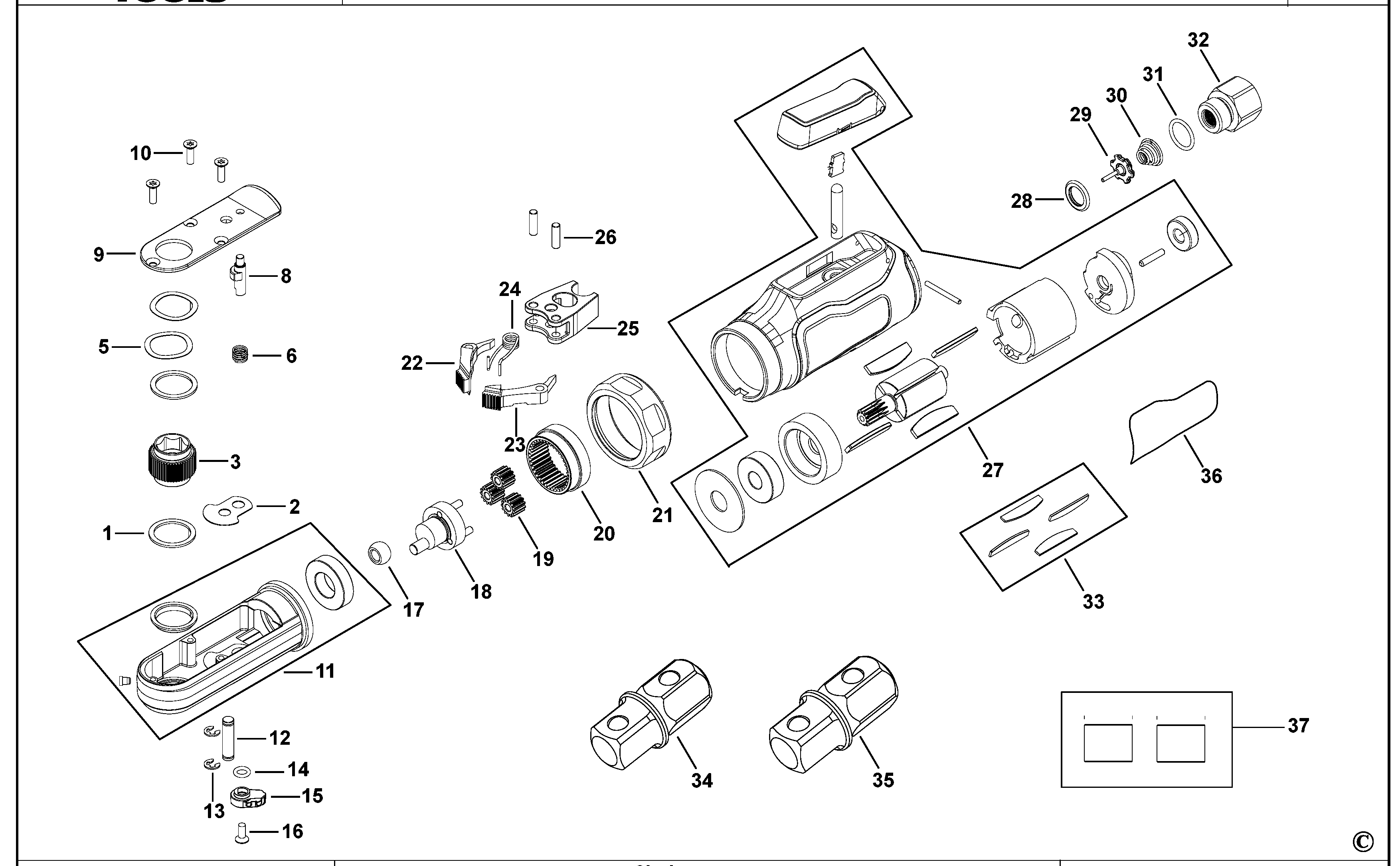

VR.RJ2500PB RATCHET Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N531825 | 2 | WASHER | XJ | |||
| 2 | N597902 | 1 | PLATE | XJ | |||
| 3 | N537968 | 1 | GEAR | XJ | |||
| 5 | N588811 | 2 | WASHER SPRING | XJ | |||
| 6 | N526363 | 1 | SPRING | XJ | |||
| 8 | N526368 | 1 | CAM | XJ | |||
| 9 | N526370 | 1 | COVERPLATE | XJ | |||
| 10 | N692671 | 3 | SCREW | XJ | |||
| 11 | N632922 | 1 | HEAD SA | XJ | |||
| 12 | N526367 | 1 | PIVOT BLOCK | XJ | |||
| 13 | N526366 | 1 | CLIP | XJ | |||
| 14 | N638259 | 1 | O RING | XJ | |||
| 15 | N526364 | 1 | LEVER | XJ | |||
| 16 | N526362 | 1 | SCREW | XJ | |||
| 17 | N526855 | 1 | BUSHING | XJ | |||
| 18 | N589932 | 1 | CARRIER | XJ | |||
| 19 | N526560 | 3 | GEAR | XJ | |||
| 20 | N528385 | 1 | GEAR | XJ | |||
| 21 | N588215 | 1 | NUT | XJ | |||
| 22 | N591669 | 1 | PAWL | XJ | |||
| 23 | N591668 | 1 | PAWL | XJ | |||
| 24 | N526859 | 1 | SPRING | XJ | |||
| 25 | N572675 | 1 | LINK | XJ | |||
| 26 | N526863 | 2 | PIN | XJ | |||
| 27 | N648935 | 1 | HOUSING SA | XJ | |||
| 28 | N658303 | 1 | GASKET | XJ | |||
| 29 | N639389 | 1 | VALVE | XJ | |||
| 30 | N545422 | 1 | SPRING | XJ | |||
| 31 | N615372 | 1 | O RING | XJ | |||
| 32 | N604393 | 1 | NUT | XJ | |||
| 33 | 1004758-35 | 1 | BLADE SET | XJ | |||
| 34 | N535074 | 1 | DRIVE | 1/4 inch | XJ | ||
| 35 | N535075 | 1 | DRIVE | 3/8 inch | XJ | ||
| 36 | N615952 | 1 | RATING LABEL | XJ | |||
| 37 | N892471 | 1 | MUFFLER | KIT | XJ |
