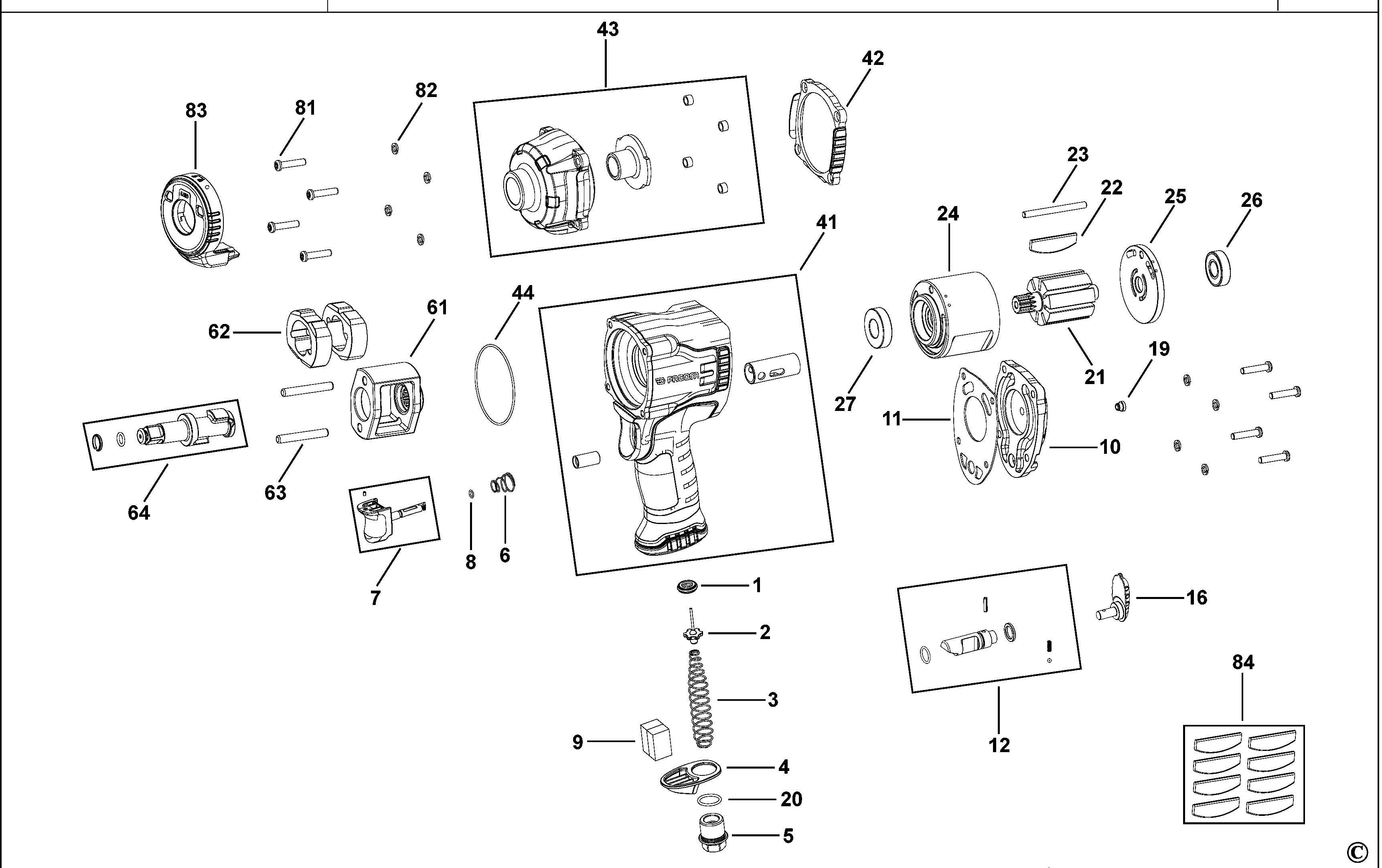

NS.2500G IMPACT WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N539593 | 1 | GASKET | XJ | |||
| 2 | N463044 | 1 | VALVE | XJ | |||
| 3 | N463048 | 1 | SPRING | XJ | |||
| 4 | N471027 | 1 | EXHAUST | XJ | |||
| 5 | N495010 | 1 | INLET | XJ | |||
| 6 | N496835 | 1 | SPRING | XJ | |||
| 7 | N548975 | 1 | TRIGGER | XJ | |||
| 8 | N470999 | 1 | O RING | XJ | |||
| 9 | N566303 | 1 | FELT | XJ | |||
| 10 | N497317 | 1 | CAP | XJ | |||
| 11 | N488302 | 1 | GASKET | XJ | |||
| 12 | 1004744-85 | 1 | SERVICE KIT | XJ | |||
| 16 | N494372 | 1 | PADDLE | XJ | |||
| 19 | N463039 | 1 | GREASE BIT | XJ | |||
| 20 | 86459 | 1 | O RING | XJ | |||
| 21 | N471006 | 1 | ROTOR | XJ | |||
| 22 | 1004755-64 | 8 | BLADE SET X8 | XJ | |||
| 23 | N471017 | 1 | DOWEL | XJ | |||
| 24 | N488314 | 1 | CYLINDER | XJ | |||
| 25 | N488319 | 1 | BACKPLATE | XJ | |||
| 26 | N461671 | 1 | BEARING BALL | XJ | |||
| 27 | N472554 | 1 | BEARING | XJ | |||
| 41 | N869555 | 1 | HOUSING SA | XJ | |||
| 42 | N488301 | 1 | GASKET | XJ | |||
| 43 | N533949 | 1 | HAMMER FRAME | XJ | |||
| 44 | N554255 | 1 | O RING | XJ | |||
| 61 | N471004 | 1 | Frame | XJ | |||
| 62 | N471003 | 2 | HAMMER | XJ | |||
| 63 | N471005 | 2 | PIN | XJ | |||
| 64 | N527951 | 1 | ANVIL ASSEMBLY | XJ | |||
| 81 | N470995 | 8 | SCREW | XJ | |||
| 82 | N470996 | 8 | WASHER | XJ | |||
| 83 | N534451 | 1 | LED LIGHT | XJ | |||
| 84 | 1004755-64 | 1 | BLADE SET X8 | XJ | |||
| 85 | 1004756-01 | 1 | SERVICE KIT | XJ |
