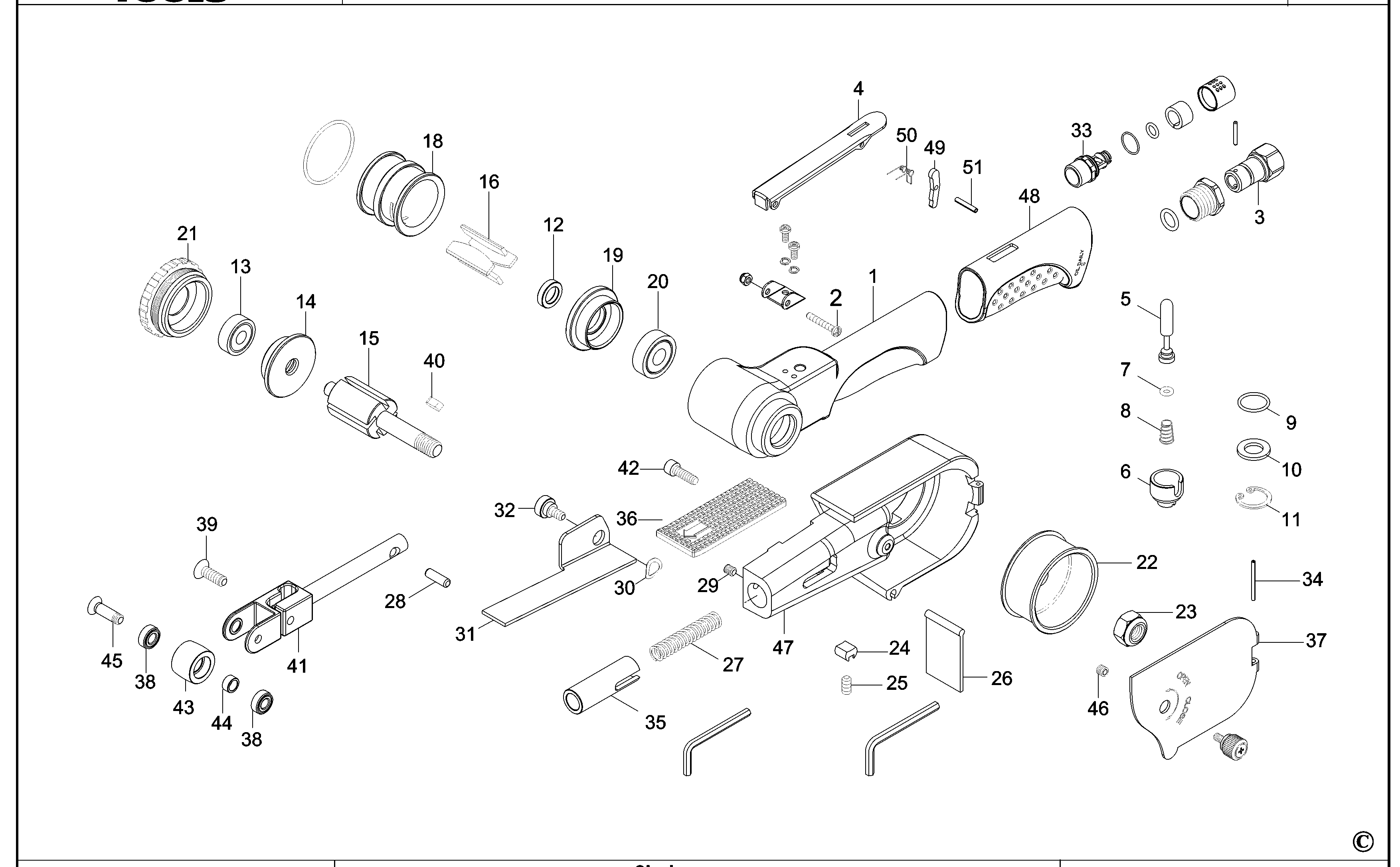

AS10 BELT SANDER Type 1 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	Markets
1	AS10-1	1	HOUSING	XJ
2	AS10-2	1	GUARD	XJ
3	AS20-3	1	INLET	XJ
4	AS20-4	1	LEVER	XJ
5	AS20-5	1	VALVE	XJ
6	AS20-6	1	VALVE	XJ
7	AS20-8	1	SPRING	XJ
8	AS20-9	1	O RING	XJ
9	AS20-10	1	SPACER	XJ
10	AS20-11	1	RING	XJ
11	AS10-13	1	BEARING	XJ
12	AS10-14	1	PLATE	XJ
13	AS10-15	1	ROTOR	XJ
14	AS10-16	1	HANDLE	XJ
15	AS10-17	1	Key	XJ
16	AS10-18	1	CYLINDER	XJ
18	AS10-20	1	BEARING,BALL	XJ
19	AS10-21	1	CAP	XJ
20	AS10-22	1	PULLEY	XJ
21	AS10-23	1	NUT	XJ
22	AS10-24	1	SHOE	XJ
23	AS10-25	1	BOLT	XJ
24	AS10-26	1	COVER	XJ
25	AS10-2	1	GUARD	XJ
26	AS20-33A	1	SHAFT	XJ
27	AS10-29	1	SCREW	XJ
28	AS10-31	1	PIN	XJ
29	AS10-32	1	SCREW	XJ
30	AS10-33	1	BEARING,BALL	XJ
31	AS10-34	1	SHAFT	XJ
32	AS10-35	1	SPRING	XJ
33	AS10-36	1	BAR	XJ
34	AS10-37	1	BUSHING	XJ
35	AS10-38	1	PULLEY	XJ
36	AS10-39	1	SPRING	XJ
37	AS10-40	1	BRACKET	XJ
38	AS10-41	1	SCREW	XJ
39	AS10-42	1	PIN	XJ
40	AS10-43	1	SPRING	XJ
41	AS10-44	1	LEVER	XJ
42	AS10-45	1	PIN	XJ
43	AS20-48	1	GRIP	XJ
44	AS20-49	1	BAR	XJ
45	AS20-50	1	SPRING	XJ
46	AS20-53	1	SCREW	XJ
47	AS20-54	1	PIN	XJ
48	AS20-55	2	SCREW	XJ
49	AS20-56	2	WASHER	XJ
50	AS20-57	1	NUT	XJ
51	AS20-58	1	SUPPORT	XJ
