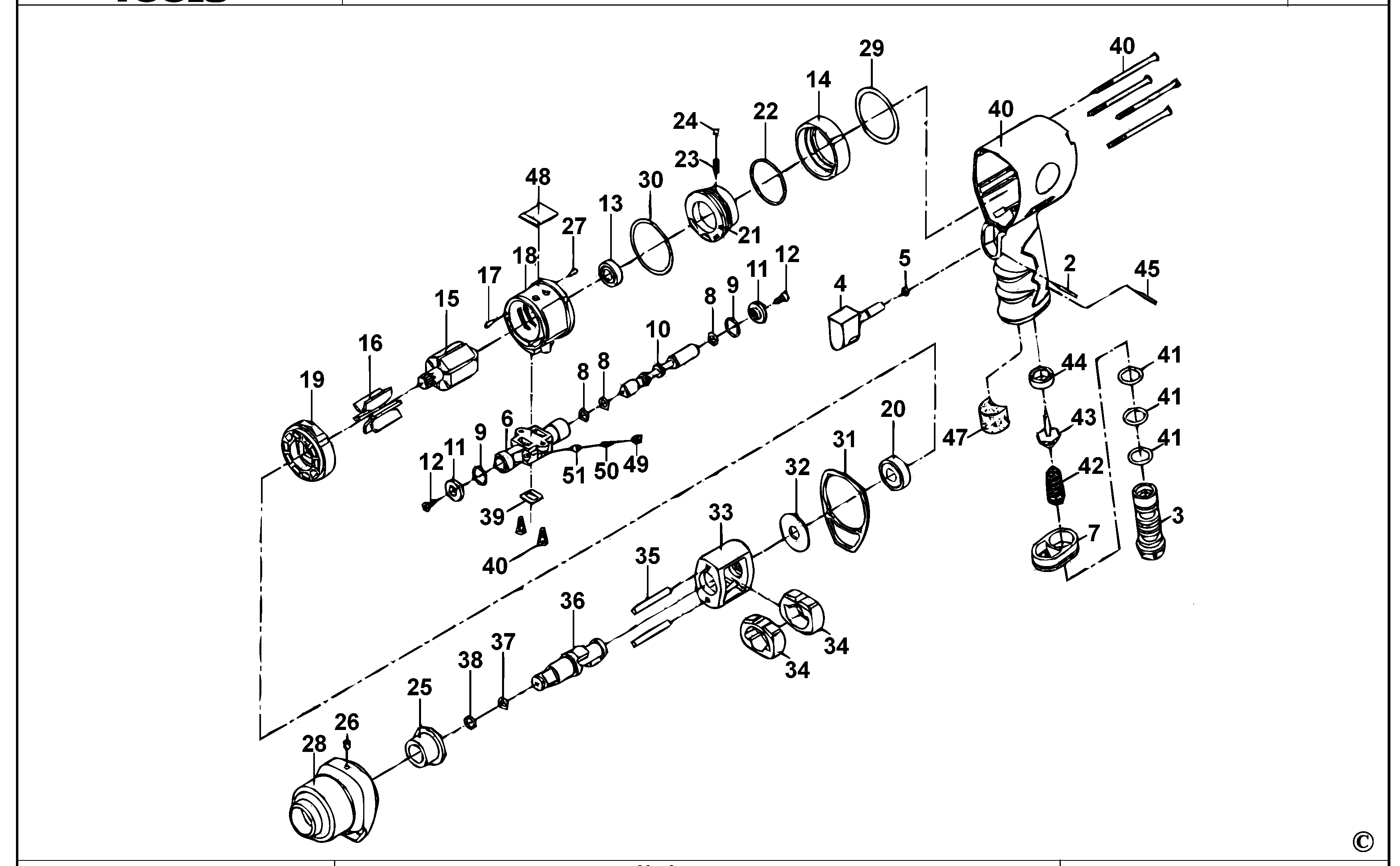

AWQP120M IMPACT WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | AWQP120M-01 | 1 | HOUSING MOTOR | XJ | |||
| 2 | AWQP120-02 | 2 | PIN | XJ | |||
| 3 | AWQP120M-03 | 1 | INLET | XJ | |||
| 4 | AWQP120M-04 | 1 | TRIGGER | XJ | |||
| 5 | AWQP120-05 | 1 | O RING | XJ | |||
| 6 | AWQP120M-06 | 1 | VALVE | XJ | |||
| 7 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 8 | AWQP120-08 | 3 | O RING | XJ | |||
| 10 | AWQP120M-10 | 1 | ROD | XJ | |||
| 11 | AWQP120M-11 | 2 | BUTTON | XJ | |||
| 12 | AS10-30 | 2 | SCREW | XJ | |||
| 13 | AWQP120M-13 | 1 | BEARING | XJ | |||
| 14 | AWQP120M-14 | 1 | RING | XJ | |||
| 15 | AWQP120M-15 | 1 | ROTOR | XJ | |||
| 16 | AWQP120M-16 | 6 | BLADE | XJ | |||
| 17 | AWQP120-17 | 5 | PIN | XJ | |||
| 18 | AWQP120M-18 | 1 | CYLINDER | XJ | |||
| 19 | AWQP120M-19 | 1 | PLATE | XJ | |||
| 20 | AWQP120M-20 | 1 | BEARING | XJ | |||
| 21 | AWQP120M-21 | 1 | REGULATOR | XJ | |||
| 22 | AWQP380-22 | 1 | O RING | XJ | |||
| 23 | AWQP120-23 | 1 | SPRING | XJ | |||
| 24 | AWQP120-24 | 1 | BALL | XJ | |||
| 25 | AWQP120M-25 | 1 | BUSHING | XJ | |||
| 26 | AWQP120M-26 | 1 | CAP | XJ | |||
| 27 | AWQP120M-27 | 1 | PIN | XJ | |||
| 28 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 29 | AWQP120M-29 | 1 | GASKET | XJ | |||
| 30 | AWQP120M-30 | 1 | GASKET | XJ | |||
| 31 | AWQP120M-31 | 1 | GASKET | XJ | |||
| 32 | AWQP120M-32 | 1 | WASHER | XJ | |||
| 33 | AWQP120M-33 | 1 | CAGE | XJ | |||
| 34 | AWQP120M-34 | 2 | HAMMER | XJ | |||
| 35 | AWQP120M-35 | 2 | PIN | XJ | |||
| 36 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 37 | AWQP120-37 | 1 | O RING | XJ | |||
| 38 | AWQP120-38 | 1 | RING | XJ | |||
| 39 | AWQP120M-39 | 1 | GASKET | XJ | |||
| 40 | AWQP120M-40 | 2 | SCREW | XJ | |||
| 41 | AWQP120-41 | 3 | O RING | XJ | |||
| 42 | AWQP120M-42 | 1 | SPRING | XJ | |||
| 43 | AWQP120M-43 | 1 | VALVE STEM | XJ | |||
| 44 | AWQP120M-44 | 1 | SPACER | XJ | |||
| 45 | AWQP120-45 | 1 | PIN | XJ | |||
| 46 | AWQP120M-46 | 1 | SCREW | XJ | |||
| 47 | AWQP120M-47 | 1 | FELT | XJ | |||
| 48 | AWQP120M-48 | 1 | COVER | XJ | |||
| 49 | AWQP120-49 | 1 | SCREW | XJ | |||
| 50 | AWQP120M-50 | 1 | SPRING | XJ | |||
| 51 | AWQP120M-51 | 1 | PIN | XJ |
