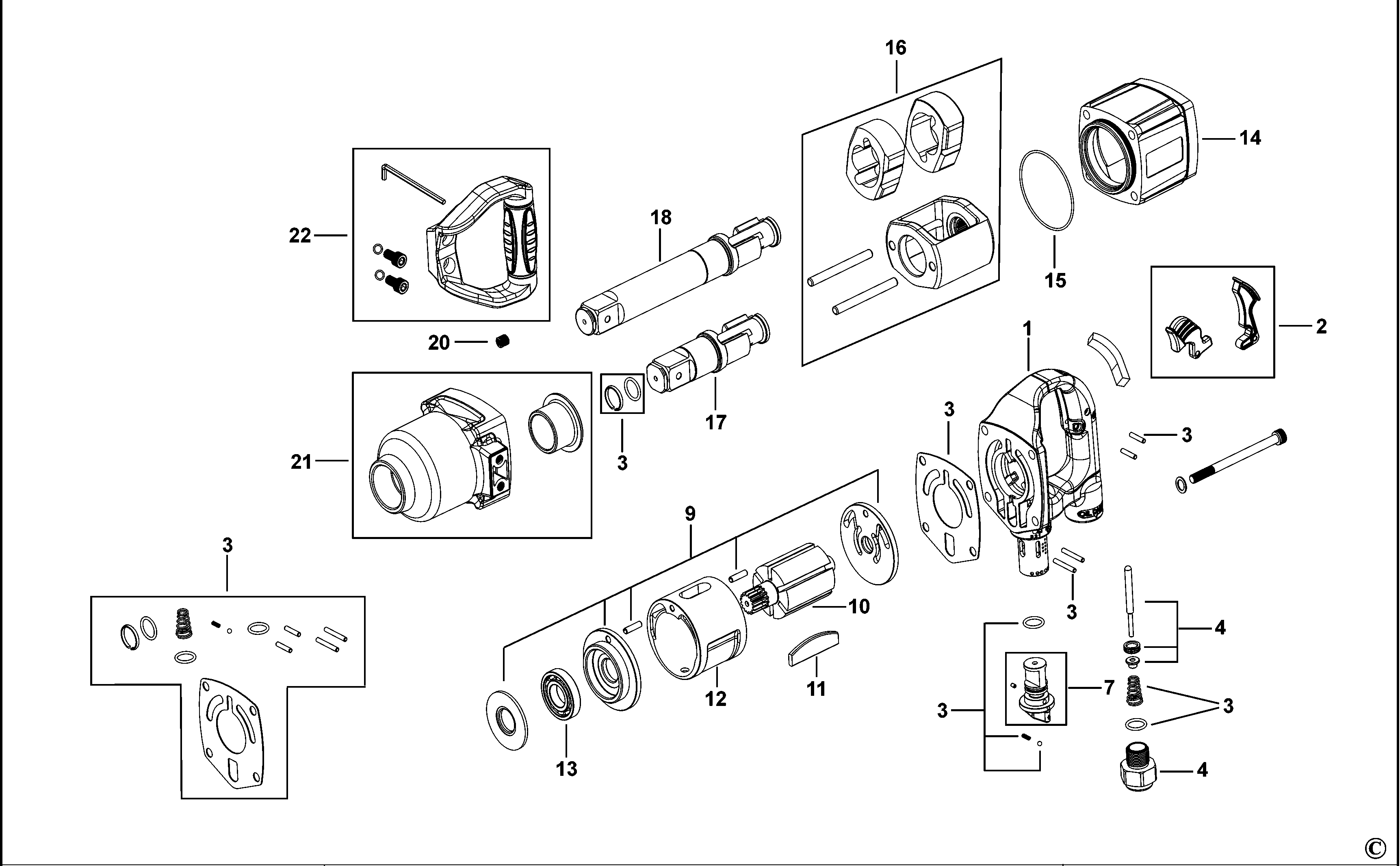

SCMTSA-34LHD IMPACT WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | 1004734-90 | 1 | TRIGGER | XJ | |||
| 3 | 1004734-91 | 1 | PISTONS & SEALS KIT | XJ | |||
| 3 | 326554-00 | 1 | COLLAR | BD2020 | XJ | ||
| 4 | 1004734-92 | 1 | THROTTLE CONTROL | XJ | |||
| 4 | 745319 | 1 | NUT | XJ | |||
| 5 | 832484-03 | 1 | INTERSHAFT | XJ | |||
| 7 | 1004734-93 | 1 | REVERSER | XJ | |||
| 9 | 1004734-94 | 1 | PLATE KIT | XJ | |||
| 10 | 31M200071 | 1 | ROTOR | XJ | |||
| 11 | 31M200072 | 1 | ROTOR BLADE | XJ | |||
| 12 | 31M200073 | 1 | CYLINDER | XJ | |||
| 12 | 1003405-00 | 8 | CORDSET | XJ | |||
| 13 | 31R200144 | 1 | BEARING,BALL | XJ | |||
| 13 | 326196-04 | 1 | KITBOX | XJ | |||
| 14 | 31H200037 | 1 | HOUSING | XJ | |||
| 15 | 31R200318 | 1 | O RING | XJ | |||
| 15 | A24631 | 1 | LOCK NUT | XJ | |||
| 16 | 1004734-95 | 1 | IMPACTOR | XJ | |||
| 16 | 837745 | 1 | RETAINER | XJ | |||
| 17 | 31D200069 | 1 | ANVIL ASSEMBLY | XJ | |||
| 17 | N044664 | 1 | RATING PLATE | XJ | |||
| 18 | 31D200070 | 1 | ANVIL ASSEMBLY | 6" | XJ | ||
| 18 | 1347355 | 2 | HOLDER | DELTA | XJ | ||
| 19 | 279768-00 | 1 | HOUSING UPPER | XJ | |||
| 20 | 31R200196 | 1 | HELI-COIL | XJ | |||
| 20 | 372274-00 | 1 | GEAR | XJ | |||
| 21 | 31H100029 | 1 | HAMMER | XJ | |||
| 21 | 326164-00 | 1 | CHUCK KEYLESS | XJ | |||
| 22 | 1004734-96 | 1 | HANDLE SA | XJ | |||
| 22 | 731441 | 1 | PUNCH | XJ | |||
| 24 | 173269-00 | 1 | SCREW | XJ | |||
| 25 | 329866-02 | 1 | RATING PLATE | XJ | |||
| 26 | 579824-02 | 1 | FIELD 230V | XJ | |||
| 28 | 763362 | 1 | MOTOR SA | XJ | |||
| 29 | 817899 | 1 | PARTS PACK | XJ | |||
| 30 | 776143029 | 1 | GEAR | BD2020 | XJ | ||
| 32 | 949843-22 | 1 | CABLE | BD2020 | XJ | ||
| 32 | 776141019 | 1 | PLATE | BD2520 | XJ | ||
| 800 | 6010081-32 | 1 | MOTOR 230V | XJ | |||
| 816 | 776141023 | 1 | HOUSING GEAR | BD2520-04 | XJ | ||
| 816 | 776141022 | 1 | HOUSING GEAR SA | BD2020 | XJ | ||
| 826 | 781133-01 | 1 | CHARGER SA | BD2520 | XJ |
