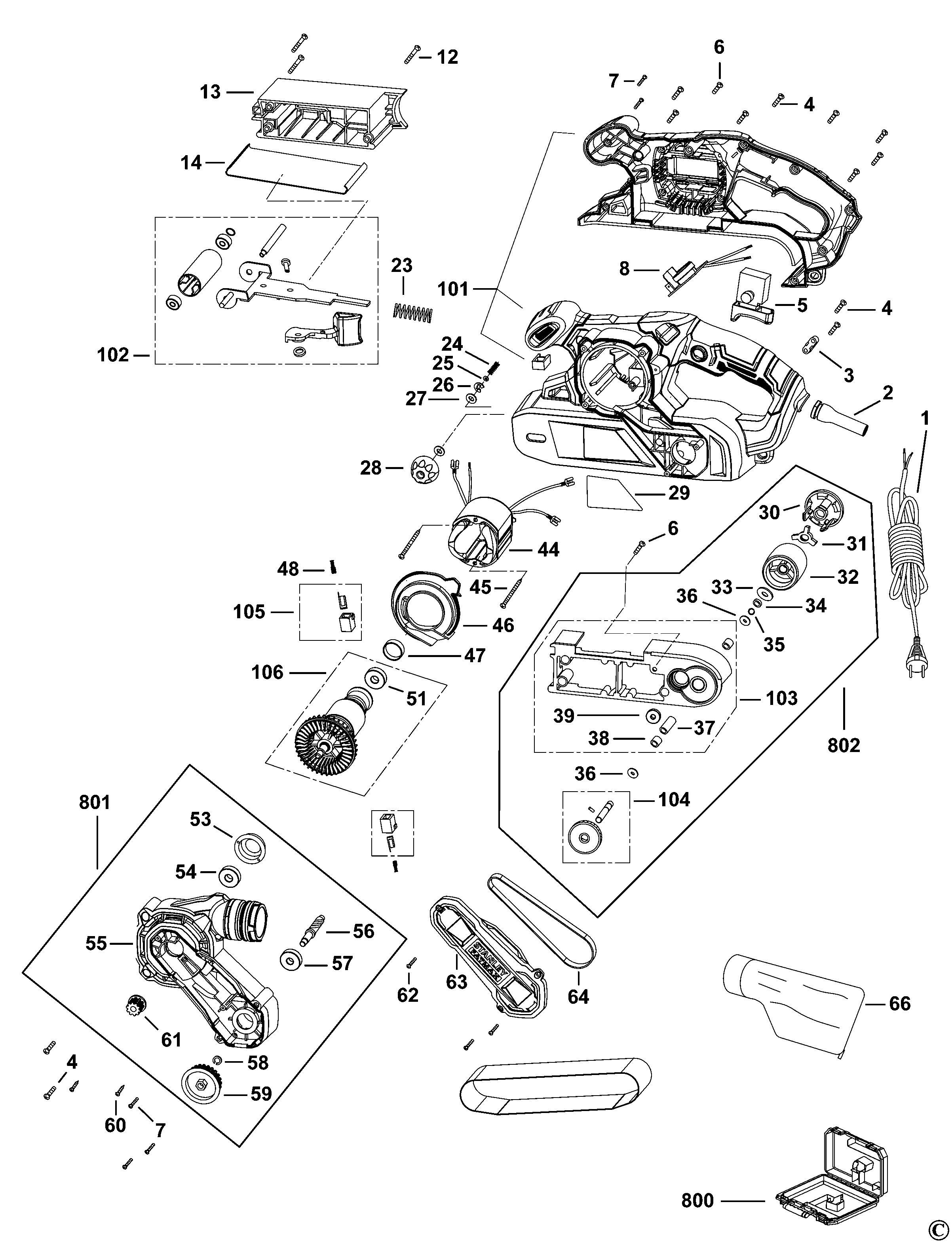

FMEW204 BELT SANDER Type 1 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	General Description	Other Info	Markets
1	1004770-38	1	CORDSET			XE
2	1004768-42	1	CORD PROTECTOR			XE
3	5140230-64	1	CLAMP			XE
4	5140101-52	12	SCREW	st4.1x16mm		XE
5	5140230-65	1	SWITCH			XE
6	1004768-43	1	SCREW			XE
7	5140230-71	2	SCREW			XE
8	1004768-44	1	PCB			XE
12	5140231-11	3	SCREW			XE
13	1004768-46	1	CLAMP			XE
14	1004768-47	1	BASE PLATE			XE
23	5140230-79	1	SPRING			XE
24	5140230-80	1	SPRING			XE
25	5140230-81	1	WASHER			XE
26	5140230-82	1	WASHER			XE
27	5140230-91	1	WASHER			XE
28	5140230-84	1	KNOB			XE
29	1004770-39	1	RATING PLATE			XE
30	1004768-51	1	COVER			XE
31	1004768-52	1	NUT			XE
32	1004768-53	1	ROLLER			XE
33	1004768-54	1	WASHER			XE
34	5140230-88	1	WASHER			XE
35	5140230-89	1	RING			XE
36	1004768-60	1	WASHER			XE
37	1004768-55	1	SLEEVE			XE
38	1004768-56	2	BEARING NEEDLE			XE
39	1004768-57	1	BEARING			XE
44	1004768-61	1	FIELD SA			XE
45	1004768-62	2	SCREW			XE
46	1004768-63	1	BAFFLE FAN			XE
47	5140230-97	1	WASHER			XE
48	1004768-64	1	BRUSH PAIR			XE
51	1004768-69	1	BEARING			XE
53	5140231-03	1	COVER			XE
54	5140231-04	1	BEARING 608			XE
55	1004768-71	1	HOUSING LH			XE
56	5140231-06	1	PINION GEAR			XE
57	5140231-07	1	BEARING			XE
58	5140231-08	1	WASHER			XE
59	5140231-09	1	GEAR			XE
60	5140231-10	2	SCREW			XE
61	5140231-12	1	PULLEY			XE
62	5140231-13	3	SCREW			XE
63	1004768-70	1	COVER			XE
64	5140231-15	1	BELT			XE
66	1004768-72	1	BAG DUST			XE
101	1004768-45	1	CLAMSHELL SA			XE
102	1004768-48	1	FORK			XE
103	1004768-59	1	SUPPORT			XE
104	5140230-92	1	SHAFT SA			XE
105	1004768-65	1	BRUSH HOLDER SA			XE
106	1004768-68	1	ARMATURE SA			XE
800	1004769-08	1	KITBOX		FMEW204K	XE
801	1004769-06	1	HANDLE SA LH			XE
802	1004769-07	1	SUPPORT SA			XE
