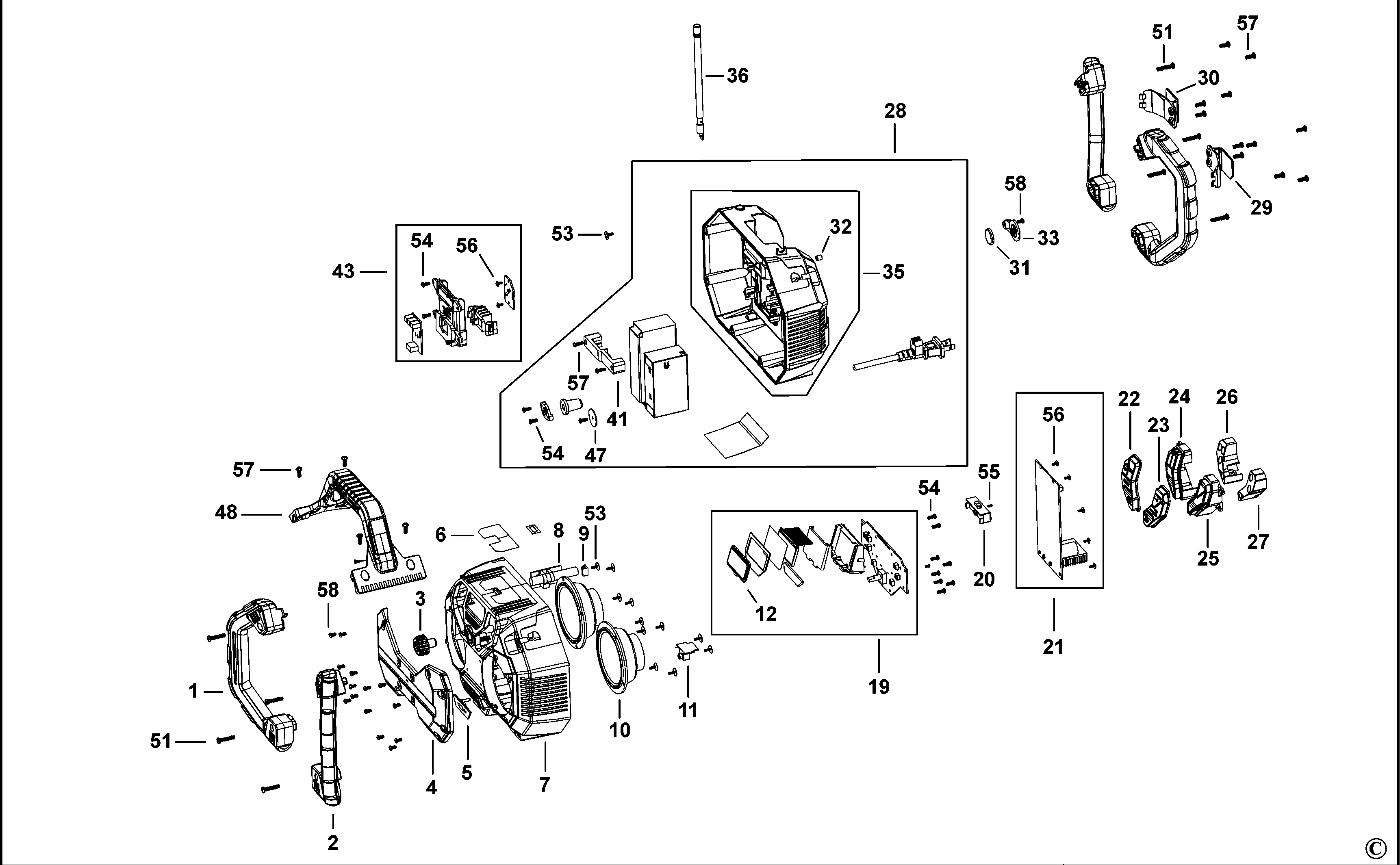

FMCR001 SITE RADIO Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004760-12 | 1 | PROTECTOR | XE | |||
| 2 | 1004760-13 | 1 | PROTECTOR | XE | |||
| 3 | 1004760-14 | 1 | KNOB | XE | |||
| 4 | 1004760-15 | 1 | GRILL | XE | |||
| 5 | 1004760-16 | 1 | COVER | XE | |||
| 6 | 1004760-17 | 1 | LABEL | XE | |||
| 7 | 1004760-18 | 1 | HOUSING FRONT | XE | |||
| 8 | 1004760-19 | 1 | ANTENNA | XE | |||
| 9 | 1004760-20 | 1 | SUPPORT | XE | |||
| 10 | 1004760-21 | 2 | SPEAKER | XE | |||
| 11 | 1004760-22 | 1 | PCB | XE | |||
| 12 | 1004760-23 | 1 | LENS | XE | |||
| 19 | 1004760-24 | 1 | DISPLAY | XE | |||
| 20 | 1004760-28 | 1 | COVER | XE | |||
| 21 | 1004760-29 | 1 | PCB | +56 | XE | ||
| 22 | 1004760-30 | 1 | BUTTON | XE | |||
| 23 | 1004760-31 | 1 | BUTTON | XE | |||
| 24 | 1004760-32 | 1 | SUPPORT LH | XE | |||
| 25 | 1004760-33 | 1 | SUPPORT RH | XE | |||
| 26 | 1004760-34 | 1 | ISOLATOR | XE | |||
| 27 | 1004760-35 | 1 | ISOLATOR | XE | |||
| 28 | 1004763-81 | 1 | SA POWER SUPPLY | XE | |||
| 29 | 1004760-36 | 1 | SUPPORT LH | XE | |||
| 30 | 1004760-37 | 1 | SUPPORT RH | XE | |||
| 31 | 1004760-38 | 1 | BATTERY CELL | XE | |||
| 32 | 1004760-39 | 1 | INSERT | XE | |||
| 33 | 1004760-40 | 1 | COVER | XE | |||
| 35 | 1004760-44 | 1 | COVER REAR | INC32 | XE | ||
| 36 | 1004760-83 | 1 | ANTENNA | XE | |||
| 41 | 1004760-45 | 1 | HOLDER | XE | |||
| 43 | 1004760-46 | 1 | PCB SA | XE | |||
| 47 | 1004763-79 | 1 | WASHER | XE | |||
| 48 | 1004760-48 | 1 | HANDLE | XE | |||
| 51 | 1004760-43 | 8 | SCREW | XE | |||
| 53 | 1004763-78 | 1 | SCREW | XE | |||
| 54 | 1004760-25 | 17 | SCREW | XE | |||
| 55 | 1004760-26 | 2 | SCREW | XE | |||
| 56 | 1004760-27 | 7 | SCREW | XE | |||
| 57 | 1004760-41 | 15 | SCREW | XE | |||
| 58 | 1004760-42 | 16 | SCREW | XE |
