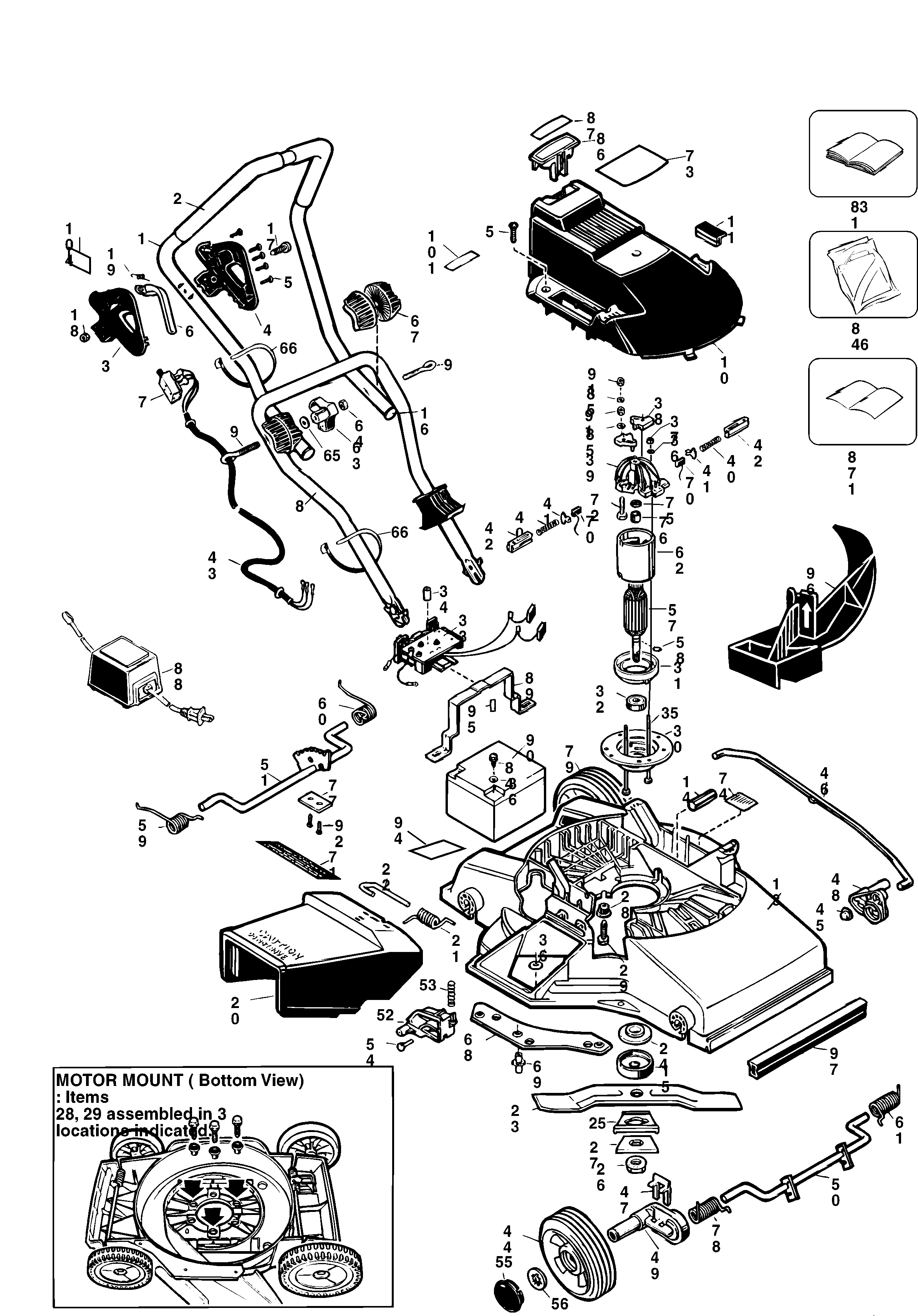

GRC645 CORDLESS MOWER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 241634-02 | 1 | HANDLE UPPER | XJ | |||
| 2 | 241519-02 | 2 | GRIP | XJ | |||
| 6 | 681253-00 | 1 | LEVER | XJ | |||
| 7 | 241685-00 | 1 | SWITCH | XJ | |||
| 9 | 241204-01 | 2 | BOLT | XJ | |||
| 10 | 242370-00 | 1 | COVER | XJ | |||
| 11 | 242026-01 | 2 | COVER | XJ | |||
| 13 | 241998-26 | 1 | CUTTER DECK | XJ | |||
| 14 | 241578-00 | 2 | PIN | XJ | |||
| 15 | 241646-00 | 1 | SPACER | XJ | |||
| 16 | 241228-00 | 2 | PLUG | XJ | |||
| 17 | 99292-16 | 1 | SCREW | XJ | |||
| 18 | 38738-00 | 1 | NUT | XJ | |||
| 19 | 681269-00 | 1 | SPRING | XJ | |||
| 20 | 241527-00 | 1 | CHUTE | XJ | |||
| 21 | 241623-00 | 1 | SPRING | XJ | |||
| 22 | 241979-00 | 1 | PIN | XJ | |||
| 23 | 242247-00 | 1 | BLADE | XJ | |||
| 24 | 680812-00 | 1 | SPACER | XJ | |||
| 25 | 241381-01 | 1 | INSULATOR | XJ | |||
| 26 | 239487 | 1 | NUT | XJ | |||
| 27 | 92715-00 | 1 | SPACER | XJ | |||
| 28 | 241594-02 | 3 | SPACER | XJ | |||
| 29 | 681548-01 | 3 | SCREW | XJ | |||
| 30 | 241590-07 | 1 | PLATE | XJ | |||
| 31 | 681285-00 | 1 | INSULATOR | XJ | |||
| 32 | 70055-00 | 1 | BEARING | XJ | |||
| 33 | 241670-05 | 1 | ELECTRONIC | XJ | |||
| 34 | 239723-10 | 1 | PLUG | XJ | |||
| 35 | 681298-00 | 2 | SCREW | XJ | |||
| 36 | 99361-10 | 7 | WASHER | XJ | |||
| 37 | 32699-00 | 2 | NUT | XJ | |||
| 39 | 680476-08 | 1 | END CAP | XJ | |||
| 40 | 375346 | 2 | BRUSH SPRING | XJ | |||
| 41 | 70162-00 | 2 | PLATE | XJ | |||
| 42 | 242274-00 | 2 | INSERT | XJ | |||
| 43 | 242000-02 | 1 | CABLE SA | XJ | |||
| 44 | 241652-01 | 2 | WHEEL | XJ | |||
| 45 | 241658-02 | 2 | RETAINER | XJ | |||
| 46 | 242013-02 | 1 | ROD | XJ | |||
| 47 | 241536-00 | 4 | CLIP | XJ | |||
| 48 | 241538-00 | 2 | RETAINER | XJ | |||
| 49 | 241537-00 | 2 | RETAINER | XJ | |||
| 50 | 241655-01 | 1 | AXLE SA | XJ | |||
| 51 | 241926-01 | 1 | AXLE SA | XJ | |||
| 52 | 242127-07 | 1 | HANDLE SA | XJ | |||
| 53 | 241656-00 | 1 | SPRING | XJ | |||
| 54 | 241657-00 | 1 | PIN | XJ | |||
| 55 | 239540-04 | 4 | CAP | XJ | |||
| 56 | 241658-00 | 4 | RETAINER | XJ | |||
| 58 | 137203-00 | 1 | RING | XJ | |||
| 59 | 241660-00 | 1 | SPRING | XJ | |||
| 60 | 241661-00 | 1 | SPRING | XJ | |||
| 61 | 241662-00 | 1 | SPRING | XJ | |||
| 62 | 681086-02 | 1 | MAGNET | XJ | |||
| 63 | 241483-00 | 2 | KNOB | XJ | |||
| 64 | 99370-04 | 2 | NUT | XJ | |||
| 65 | 99361-17 | 2 | WASHER | XJ | |||
| 66 | 239715-06 | 2 | TIE | XJ | |||
| 67 | 241151-00 | 4 | REGULATOR | XJ | |||
| 68 | 241726-00 | 1 | PLATE | XJ | |||
| 69 | 241875-00 | 3 | RIVET | XJ | |||
| 70 | 242008-00 | 1 | BRUSH SA | XJ | |||
| 71 | 263896-00 | 1 | WARNING LABEL | XJ | |||
| 72 | 242010-00 | 2 | BOLT | XJ | |||
| 73 | 264241-00 | 1 | NAMEPLATE | XJ | |||
| 74 | 263901-00 | 1 | LABEL | XJ | |||
| 76 | 73093 | 1 | BEARING | XJ | |||
| 77 | 241933-00 | 2 | STRAP | XJ | |||
| 78 | 241659-00 | 1 | SPRING | XJ | |||
| 79 | 241653-01 | 2 | WHEEL | XJ | |||
| 84 | 242242-00 | 2 | BOLT | XJ | |||
| 85 | 98197-06 | 2 | WASHER SPRING | XJ | |||
| 86 | 242347-00 | 1 | KEY | XJ | |||
| 87 | 263891-00 | 1 | LABEL | XJ | |||
| 88 | 242181-00 | 1 | CHARGER SA | XJ | |||
| 89 | 242369-00 | 1 | STRAP | XJ | |||
| 90 | 242245-00 | 1 | BATTERY | XJ | |||
| 91 | 330015-04 | 1 | NUT | XJ | |||
| 92 | 86948-00 | 2 | SCREW | XJ | |||
| 94 | 263892-00 | 1 | LABEL | XJ | |||
| 95 | 242241-00 | 2 | PAD | XJ | |||
| 96 | 242052-05 | 1 | INSERT | XJ | |||
| 97 | 241642-00 | 1 | BUMPER | XJ | |||
| 101 | 263893-00 | 1 | LABEL | XJ | |||
| 104 | 263894-00 | 1 | LABEL | XJ | |||
| 831 | 264231-00 | 1 | INSTRUCTION MANUAL | Norway | XJ | ||
| 831 | 264230-00 | 1 | INSTRUCTION MANUAL | Sweden | XJ | ||
| 831 | 264233-00 | 1 | INSTRUCTION MANUAL | Belgium | XJ | ||
| 831 | 264232-00 | 1 | INSTRUCTION MANUAL | Finland | XJ | ||
| 846 | 241691-31 | 1 | PARTS PACK | XJ | |||
| 871 | 241706-00 | 1 | WIRING DIAGRAM | XJ |
