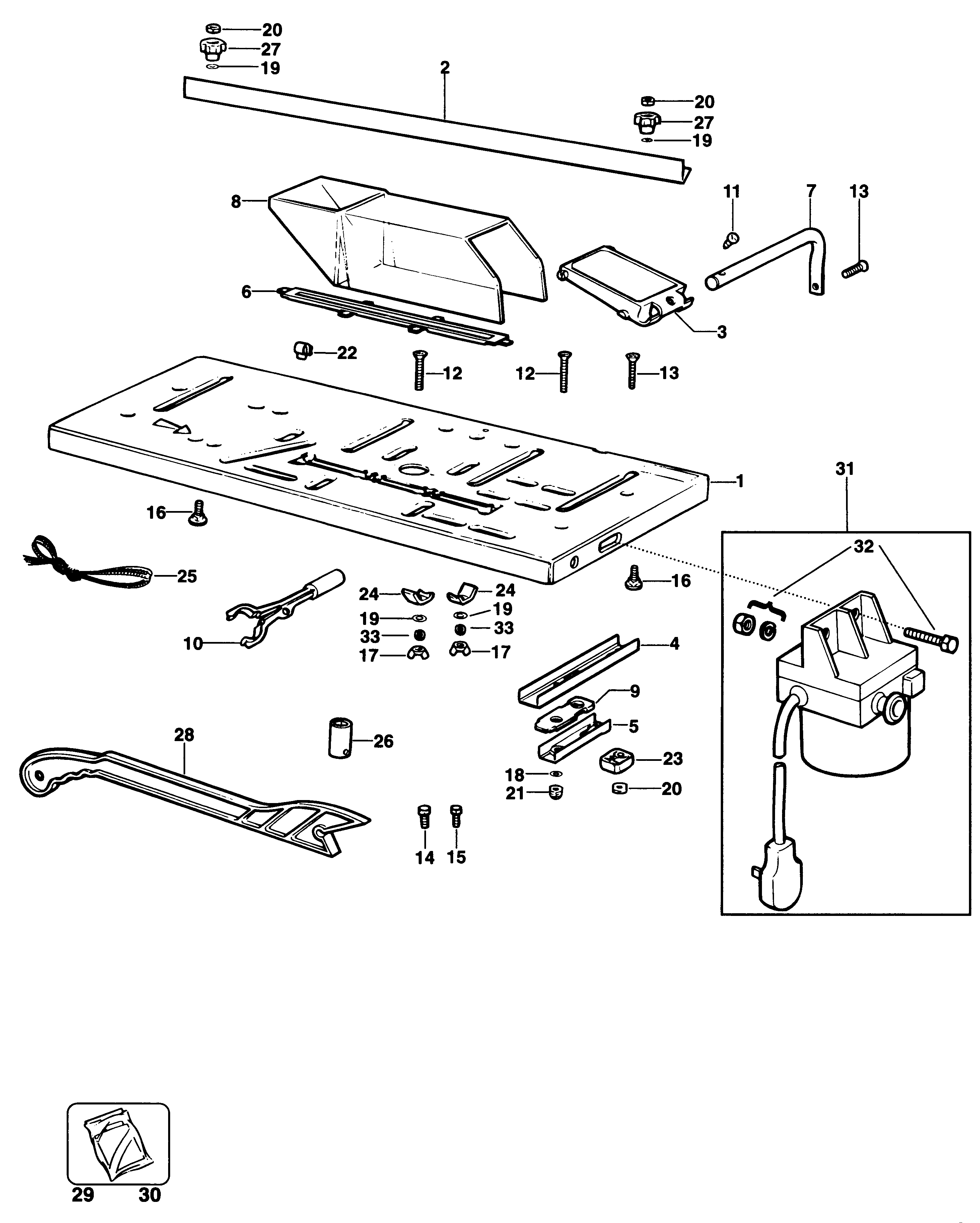

X40300 SAW TABLE Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 298689 | 1 | BASEPLATE | XJ | |||
| 1 | 329781-49 | 1 | BRUSH HOLDER PAIR | XJ | |||
| 2 | 298069 | 1 | RIP FENCE | XJ | |||
| 3 | 298690 | 1 | ARM | XJ | |||
| 3 | 794512-04 | 1 | SPINDLE SA | XJ | |||
| 4 | 298066 | 2 | BRACKET | XJ | |||
| 4 | 487353-01 | 1 | KITBOX | Metabo | XJ | ||
| 5 | 299327 | 2 | BRACKET | XJ | |||
| 5 | 328620-09 | 1 | ARMATURE 115V | XJ | |||
| 6 | 298068 | 1 | INSERT | XJ | |||
| 7 | 298067 | 1 | TUBE | XJ | |||
| 7 | 90626849 | 1 | SPRING | XJ | |||
| 8 | 298070 | 1 | GUARD | XJ | |||
| 9 | 288664 | 2 | SPACER | XJ | |||
| 9 | 6010058-03 | 1 | TOP | UPPER PART | XJ | ||
| 10 | 911775 | 1 | LOCKING DEVICE | XJ | |||
| 10 | 6010058-02 | 1 | COVER | BOTTOM COVER | XJ | ||
| 11 | 297990 | 1 | SCREW | XJ | |||
| 11 | 328589-00 | 1 | LOCK BUTTON | XJ | |||
| 12 | 289260 | 6 | SCREW | XJ | |||
| 12 | 6010119-16 | 8 | RING | XJ | |||
| 13 | 298713 | 5 | SCREW | XJ | |||
| 13 | 751779-49 | 1 | SCREW | XJ | |||
| 14 | 299334 | 2 | SCREW | XJ | |||
| 14 | 6010167-14 | 1 | SEAL | XJ | |||
| 15 | 761243-00 | 1 | PINION | XJ | |||
| 16 | 288989 | 2 | SCREW | XJ | |||
| 17 | 896288 | 4 | NUT WING | XJ | |||
| 18 | 829744 | 2 | WASHER M8 | XJ | |||
| 19 | 894569 | 6 | WASHER M6 | XJ | |||
| 20 | 893261 | 4 | NUT M6 | XJ | |||
| 20 | 748158 | 1 | SPRING | XJ | |||
| 21 | 817137 | 4 | NUT | XJ | |||
| 21 | 6010167-17 | 1 | COVER | XJ | |||
| 22 | 298072 | 1 | CLIP CABLE | XJ | |||
| 22 | 6010167-12 | 1 | SEAL | XJ | |||
| 23 | 298064 | 2 | FOOT | XJ | |||
| 24 | 298071 | 4 | CLAMP | XJ | |||
| 25 | 817238 | 1 | CORD | XJ | |||
| 25 | 6010167-09 | 1 | HANDLE COVER | XJ | |||
| 26 | 723742 | 1 | SOCKET | XJ | |||
| 26 | 6010167-09 | 1 | HANDLE COVER | XJ | |||
| 27 | 817186 | 2 | KNOB | XJ | |||
| 27 | 6010167-09 | 1 | HANDLE COVER | XJ | |||
| 28 | 298489 | 1 | PUSHROD | XJ | |||
| 28 | 752837 | 1 | DIAL STEAM | XJ | |||
| 30 | 6010027-12 | 1 | GEAR | OUTLET GEAR | XJ | ||
| 31 | 352302 | 1 | SWITCH SA | XJ | |||
| 32 | 298714 | 1 | PARTS PACK | XJ | |||
| 32 | 329774-49 | 1 | BRUSH PAIR 115V | XJ | |||
| 33 | 891053 | 4 | WASHER CLAMP | XJ | |||
| 39 | 6010167-08 | 1 | HANDLE | XJ | |||
| 40 | 6010167-09 | 1 | HANDLE COVER | XJ | |||
| 100 | 559879-00 | 2 | COVER SA | XJ | |||
| 101 | 6010093-40 | 2 | LATCH | LATCH CHANNEL LH | XJ | ||
| 102 | 248866-00 | 1 | SCREW WING | XJ | |||
| 831 | 278958-00 | 1 | SEAL | XJ | |||
| 846 | 6010028-47 | 1 | FILTER | XJ |
