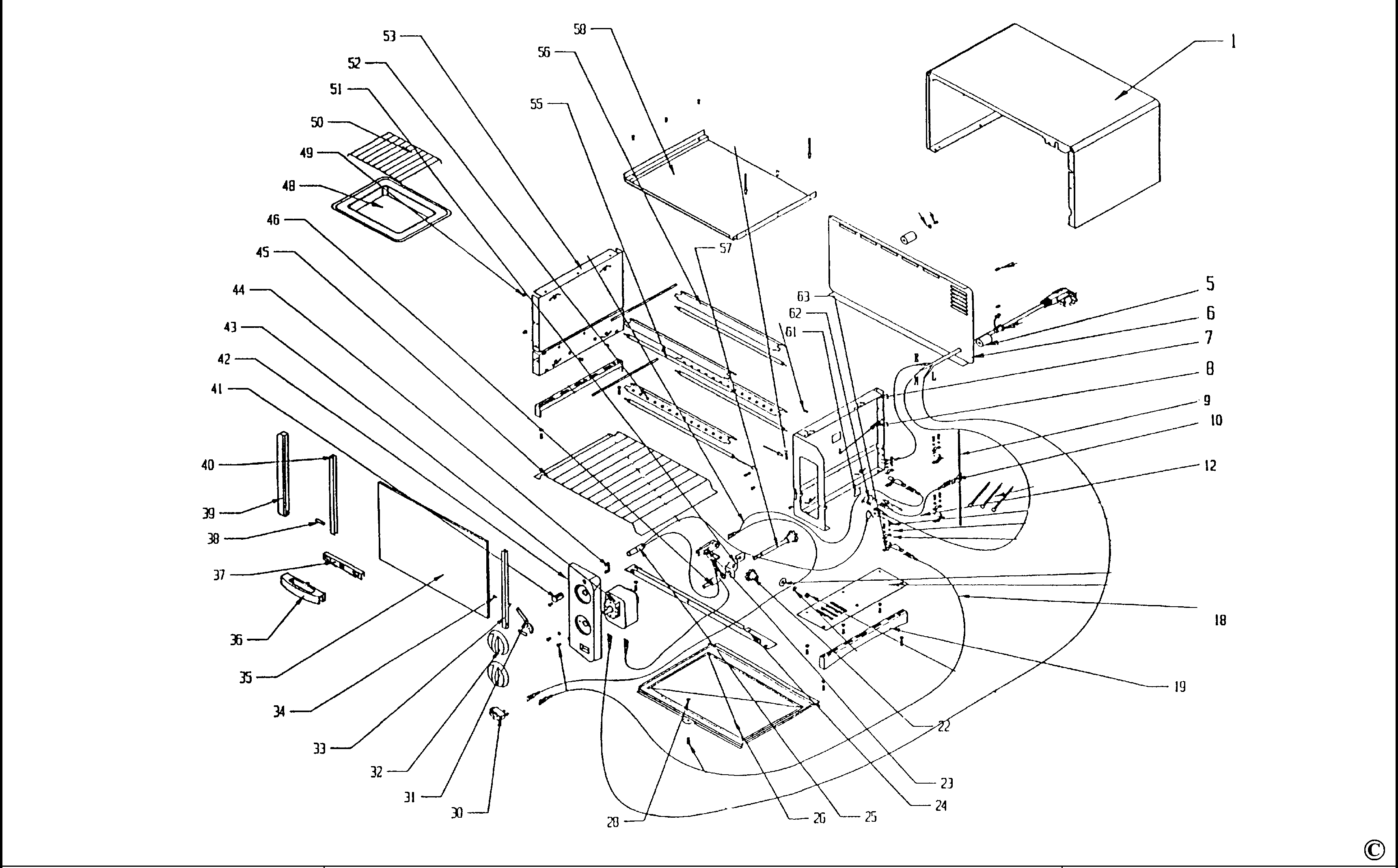

TRO20 TOASTER OVEN Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 6010093-01 | 1 | CASE | WRAPPET | TRO20/1 | XJ | |
| 5 | 6010093-05 | 1 | FOOT | TRO20/5 | XJ | ||
| 6 | 6010093-06 | 1 | PANEL | BACK PANEL | TRO20/6 | XJ | |
| 7 | 6010093-07 | 1 | PANEL | INTERNAL END RH | TRO20/7 | XJ | |
| 8 | 6010093-08 | 1 | SPRING | DOOR SPRING | TRO20/8 | XJ | |
| 19 | 6010093-19 | 1 | FOOT | LONG | TRO20/19 | XJ | |
| 22 | 6010093-22 | 1 | WHEEL | THERMOSTAT GEAR WHEE | TRO20/22 | XJ | |
| 23 | 6010093-23 | 1 | THERMOSTAT | THERMOSTAT (ADJUSTAB | TRO20/23 | XJ | |
| 24 | 6010093-24 | 1 | PLATE | FASCIA | TRO20/24 | XJ | |
| 25 | 6010093-25 | 1 | NEON | NEON / WIRE ASSY | TRO20/25 | XJ | |
| 26 | 6010093-26 | 1 | TRAY | CRUMB TRAY | TRO20/26 | XJ | |
| 28 | 6010093-28 | 1 | RING | E - RING | TRO20/28 | XJ | |
| 30 | 6010093-30 | 1 | SWITCH | BAKE / GRILL SWITCH | TRO20/30 | XJ | |
| 31 | 6010093-31 | 1 | CONNECTOR | CONNECTOR CHANNEL | TRO20/31 | XJ | |
| 32 | 6010093-32 | 1 | KNOB | KNOB - THERMOSTAT & | TRO20/32 | XJ | |
| 33 | 6010093-33 | 1 | LATCH | LATCH CHANNEL RH | TRO20/33 | XJ | |
| 34 | 6010093-34 | 1 | EYELET | TRO20/34 | XJ | ||
| 35 | 6010093-35 | 1 | DOOR | GLASS | TRO20/35 | XJ | |
| 36 | 6010093-36 | 1 | HANDLE | TRO20/36 | XJ | ||
| 37 | 6010093-37 | 1 | BRACKET | HANDLE | TRO20/37 | XJ | |
| 38 | 6010093-38 | 1 | HINGE | PIN HINGE | TRO20/38 | XJ | |
| 39 | 6010093-39 | 1 | PANEL | PANEL LH END | TRO20/39 | XJ | |
| 40 | 6010093-40 | 1 | LATCH | LATCH CHANNEL LH | TRO20/40 | XJ | |
| 41 | 6010093-41 | 1 | LENS | TRO20/41 | XJ | ||
| 42 | 6010093-42 | 1 | CONTROL PANEL | TRO20/42 | XJ | ||
| 43 | 6010093-43 | 1 | TIMER | TRO20/43 | XJ | ||
| 44 | 6010093-44 | 1 | LOCK | LENS LOCK | TRO20/44 | XJ | |
| 45 | 6010093-45 | 1 | GUARD SA | WIRE GUARD ASSY | TRO20/45 | XJ | |
| 46 | 6010093-46 | 1 | ADAPTOR | POLARISED | TRO20/46 | XJ | |
| 48 | 6010093-48 | 1 | TRAY | TRAY (GRILL) | TRO20/48 | XJ | |
| 50 | 6010093-50 | 1 | COVER | GRILL TRAY (COVER) | TRO20/50 | XJ | |
| 51 | 6010093-51 | 1 | BRACKET | THERMOSTAT | TRO20/51 | XJ | |
| 52 | 6010093-52 | 1 | BRACKET | LOWER ELEMENT | TRO20/52 | XJ | |
| 53 | 6010093-53 | 1 | PANEL | INTERNAL END LH | TRO20/53 | XJ | |
| 55 | 6010093-54 | 1 | HEATER SA | HEATER | TRO20/54 | XJ | |
| 56 | 6010093-56 | 1 | GUARD | UPPER ELEMENT GUARD | TRO20/56 | XJ | |
| 57 | 6010093-57 | 1 | GEARSHAFT | THERMOSTAT GEAR SHAF | TRO20/57 | XJ | |
| 58 | 6010093-58 | 1 | PLATE | INTERNAL TOP PLATE | TRO20/58 | XJ | |
| 61 | 6010093-61 | 1 | PLATE | MICA PLATE | TRO20/61 | XJ | |
| 62 | 6010093-62 | 1 | THERMOSTAT | THERMOSTAT (TEMP LIM | TRO20/62 | XJ | |
| 63 | 6010093-63 | 1 | HOLDER | HEATER HOLDER - LOWE | TRO20/63 | XJ |
