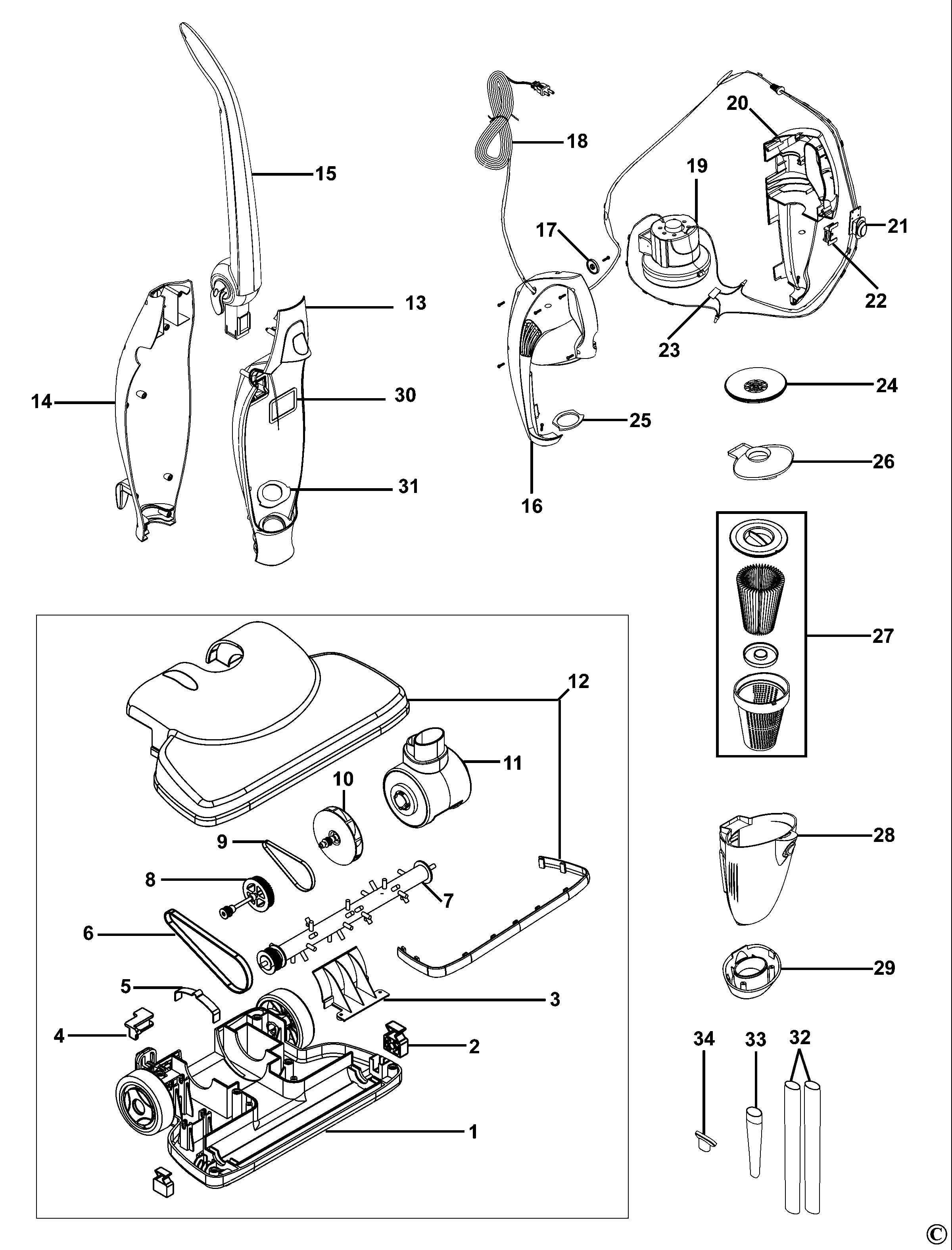

FV850 STICK-VAC Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 597527-00 | 1 | HEAD | Dark Blue | XE | ||
| 2 | 597028-00 | 2 | SUPPORT BEARING | XE | |||
| 3 | 597029-00 | 1 | COVER | XE | |||
| 4 | 597030-00 | 1 | ACTUATOR | XE | |||
| 5 | 597031-00 | 1 | PLATE | XE | |||
| 6 | 597032-00 | 1 | BELT | XE | |||
| 7 | 597528-00 | 1 | BRUSH | XE | |||
| 8 | 597034-00 | 1 | GEAR SA | XE | |||
| 9 | 597035-00 | 1 | BELT | XE | |||
| 10 | 597036-00 | 1 | FAN SA | XE | |||
| 11 | 597529-00 | 1 | PIVOT SA | XE | |||
| 12 | 597524-00 | 1 | BRUSH COVER | Dark Blue | XE | ||
| 13 | 597530-00 | 1 | HOUSING FRONT | Dark Blue | XE | ||
| 14 | 597531-00 | 1 | HOUSING REAR | Dark Blue | XE | ||
| 15 | 597532-00 | 1 | HANDLE SA | Dark Blue | XE | ||
| 16 | 597533-00 | 1 | HOUSING RH | Silver | XE | ||
| 17 | 597534-00 | 1 | PLATE | XE | |||
| 18 | 000000-00 | 1 | NO LONGER AVAILABLE | XE | |||
| 19 | 597525-00 | 1 | MOTOR SA | 850 Watt | XE | ||
| 20 | 597535-00 | 1 | HOUSING LH | Silver | XE | ||
| 21 | 597536-00 | 1 | PCB SA | Dark Blue | XE | ||
| 22 | 597537-00 | 1 | SWITCH SUPPORT | XE | |||
| 23 | 597050-00 | 1 | CAPACITOR SA | XE | |||
| 24 | 597538-00 | 1 | INLET | XE | |||
| 25 | 597052-00 | 1 | SEAL | XE | |||
| 26 | 597053-00 | 1 | COVER | XE | |||
| 27 | 597526-00 | 1 | FILTER | HEPA | XE | ||
| 28 | 597539-00 | 1 | BOWL | Grey | XE | ||
| 29 | 597540-00 | 1 | END CAP | Dark Blue | XE | ||
| 30 | 597057-00 | 1 | SEAL | XE | |||
| 31 | 597058-00 | 1 | SEAL | XE | |||
| 32 | 597541-00 | 2 | TUBE | XE | |||
| 33 | 597542-00 | 1 | TOOL CREVICE | XE | |||
| 34 | 597543-00 | 1 | BRUSH | XE |
