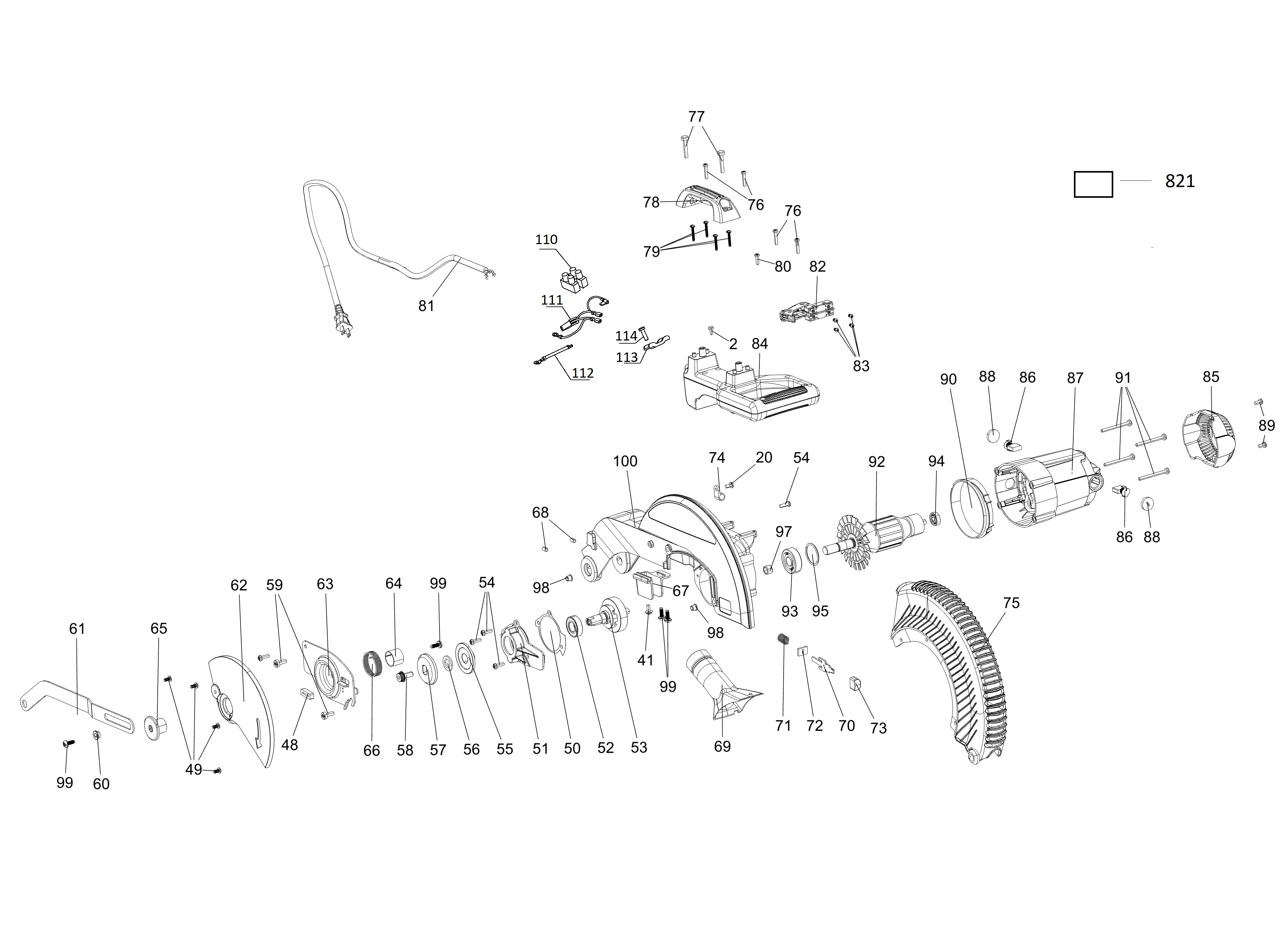

DWS715 MITRE SAW Type 20 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N542738 | 1 | POINTER | B3 | |||
| 2 | 330045-05 | 8 | SCREW | B3 | |||
| 3 | N542862 | 1 | COVERPLATE | B3 | |||
| 4 | N646867 | 1 | TABLE ASSY. | B3 | |||
| 5 | N542735 | 1 | CAM | B3 | |||
| 6 | N366384 | 1 | BUSHING | B3 | |||
| 7 | N582377 | 1 | PLATE | B3 | |||
| 8 | N542431 | 1 | KNOB SA | B3 | |||
| 9 | 153792-00 | 3 | WASHER | B3 | |||
| 10 | N556926 | 1 | CAP | B3 | |||
| 11 | 330021-02 | 1 | NUT | B3 | |||
| 12 | N555150 | 1 | DETENT | B3 | |||
| 13 | 604410-00 | 2 | SCREW | B3 | |||
| 14 | N542736 | 1 | DETENT | B3 | |||
| 15 | 330045-22 | 4 | SCREW | B3 | |||
| 16 | N543960 | 1 | PLATE | B3 | |||
| 17 | 391358-01 | 1 | HOLDER | B3 | |||
| 18 | N542847 | 4 | HOLDER | B3 | |||
| 19 | N555148 | 1 | GUARD | B3 | |||
| 20 | 330045-13 | 10 | SCREW | B3 | |||
| 21 | N555155 | 1 | BASE | B3 | |||
| 22 | N600007 | 1 | SPANNER | B3 | |||
| 23 | N571680 | 3 | PLATE | B3 | |||
| 24 | N058318 | 1 | SCREW | B3 | |||
| 25 | 049787-00 | 1 | O RING | B3 | |||
| 26 | N377514 | 2 | BUSHING | B3 | |||
| 27 | N126153 | 1 | PIVOT SHAFT | B3 | |||
| 28 | 146732-00 | 2 | SPACER | B3 | |||
| 29 | N639013 | 1 | SPRING | B3 | |||
| 31 | N562268 | 1 | KNOB | B3 | |||
| 32 | 612008-00 | 1 | SCREW | B3 | |||
| 33 | 330016-04 | 1 | WASHER | B3 | |||
| 34 | N542863 | 1 | KNOB SA | B3 | |||
| 35 | 399042-00 | 1 | BUSHING | B3 | |||
| 36 | 330045-32 | 1 | SCREW | B3 | |||
| 37 | N562266 | 1 | PIN | B3 | |||
| 38 | 391350-00 | 2 | STOP PLATE | B3 | |||
| 39 | 330045-55 | 2 | SCREW | B3 | |||
| 40 | 391631-00 | 1 | POINTER | B3 | |||
| 41 | 153460-00 | 2 | SCREW | B3 | |||
| 42 | N600059 | 2 | BOLT | B3 | |||
| 43 | N555141 | 1 | TRUNION | B3 | |||
| 44 | 098105-03 | 4 | SCREW | B3 | |||
| 45 | N555151 | 1 | FENCE | B3 | |||
| 46 | N555159 | 1 | FENCE | B3 | |||
| 47 | N543041 | 1 | CLAMP SA | B3 | |||
| 48 | 146768-00 | 1 | BUMPER | B3 | |||
| 49 | N298367 | 4 | SCREW | B3 | |||
| 50 | N142856 | 1 | GASKET | B3 | |||
| 51 | N142661 | 1 | COVER | B3 | |||
| 52 | 330003-29 | 1 | BEARING,BALL | B3 | |||
| 53 | N142660 | 1 | SPINDLE & GEAR SA | B3 | |||
| 54 | 330045-14 | 5 | SCREW | B3 | |||
| 55 | N595259 | 1 | WASHER | B3 | |||
| 56 | 152636-00 | 1 | BLADE HOLDER | B3 | |||
| 57 | N538823 | 1 | CLAMP OUTER | B3 | |||
| 58 | N600011 | 1 | BLADE BOLT | B3 | |||
| 59 | 394589-01 | 2 | SCREW | B3 | |||
| 60 | 146740-01 | 1 | BUSH | B3 | |||
| 61 | N559837 | 1 | GUARD | B3 | |||
| 62 | N142192 | 1 | GUARD PLATE | B3 | |||
| 63 | 399139-00 | 1 | PIVOT | B3 | |||
| 64 | 148295-00 | 1 | SLEEVE | B3 | |||
| 65 | 146750-03 | 1 | RETAINING PLATE | B3 | |||
| 66 | N034013 | 1 | SPRING | B3 | |||
| 67 | N559496 | 1 | GUARD | B3 | |||
| 68 | 150075-00 | 2 | SCREW | B3 | |||
| 69 | N142065 | 1 | DUST PORT | B3 | |||
| 70 | N161335 | 1 | SPINDLE LOCK | B3 | |||
| 71 | 398736-00 | 1 | SPRING | B3 | |||
| 72 | 146710-00 | 1 | WIPER | B3 | |||
| 73 | 145350-00 | 1 | BUTTON | B3 | |||
| 74 | 153669-00 | 1 | CORD CLAMP | B3 | |||
| 75 | N562309 | 1 | GUARD | B3 | |||
| 76 | 330019-32 | 4 | SCREW | B3 | |||
| 77 | 330019-22 | 2 | SCREW | M5.74x32 | B3 | ||
| 78 | 396375-00 | 1 | Handle | B3 | |||
| 79 | 330045-08 | 4 | SCREW | B3 | |||
| 80 | 330019-12 | 1 | SCREW | B3 | |||
| 81 | N207962 | 1 | CORDSET | B3 | |||
| 82 | N548978 | 1 | SWITCH | B3 | |||
| 83 | N458834 | 4 | SCREW | 6-32 x 5.55mm | B3 | ||
| 84 | N126140 | 1 | HANDLE SA | B3 | |||
| 85 | N171521 | 1 | END CAP | B3 | |||
| 86 | 614367-00 | 2 | BRUSH & LEAD | B3 | |||
| 87 | N217292 | 1 | FIELD & FLD.CSE | B3 | |||
| 88 | 614368-00 | 2 | BRUSH CAP | B3 | |||
| 89 | 330019-11 | 2 | SCREW | M4.55x13 T20 | B3 | ||
| 90 | 614366-00 | 1 | BAFFLE FAN | B3 | |||
| 91 | 614375-00 | 4 | SCREW | B3 | |||
| 92 | N147370 | 1 | ARM.,FAN, & BRG | 120V | B3 | ||
| 93 | N127530 | 1 | BEARING BALL | B3 | |||
| 94 | N110359 | 1 | BEARING | B3 | |||
| 95 | 701297-00 | 1 | SEAL | B3 | |||
| 97 | 330004-06 | 1 | BEARING NEEDLE | B3 | |||
| 98 | 148608-00 | 2 | INSERT | B3 | |||
| 99 | 330045-23 | 4 | SCREW | B3 | |||
| 100 | N555139 | 1 | ARM | B3 | |||
| 101 | N480602 | 2 | KNOB SA | B3 | |||
| 102 | N562267 | 1 | SPRING | B3 | |||
| 110 | 393520-00 | 1 | TERMINAL BLOCK | B3 | |||
| 111 | N172222 | 1 | SOFT START MODULE | B3 | |||
| 112 | N189009 | 1 | LEADWIRE | B3 | |||
| 113 | 003618-00 | 1 | CORD CLAMP | B3 | |||
| 114 | 330019-02 | 1 | SCREW | B3 | |||
| 821 | N625745 | 1 | RATING LABEL | B3 |
