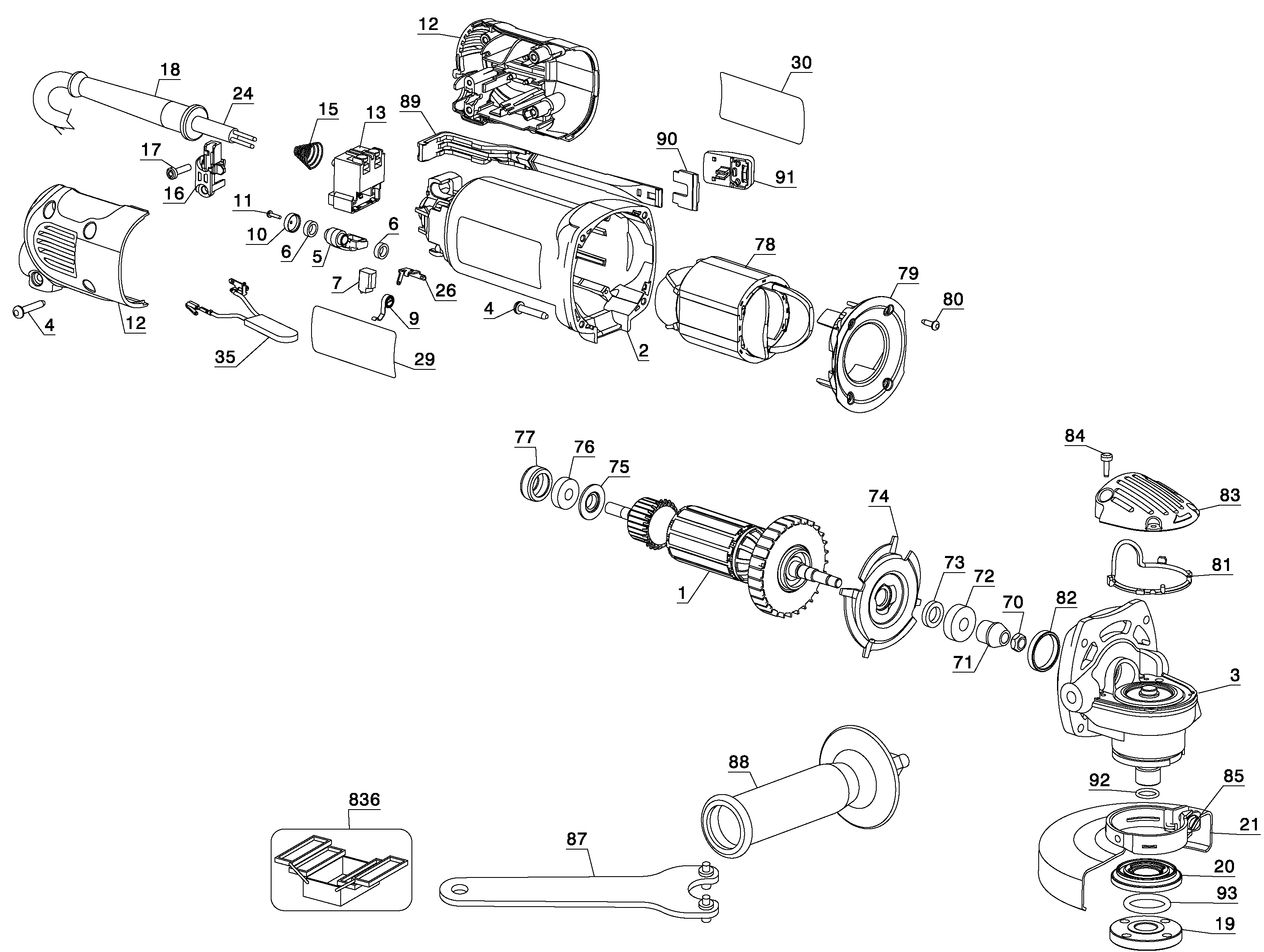

D28111 SMALL ANGLE GRINDER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 635348-24 | 1 | ARMATURE ASSEMBLY | 220 V | AR | ||
| 2 | 650994-00 | 1 | FIELDCASE | AR | |||
| 3 | N117228 | 1 | GEAR CASE ASSY. | AR | |||
| 4 | 330065-31 | 8 | PLASTIC SCREW | AR | |||
| 5 | 648743-00 | 2 | ARM | BRUSH | AR | ||
| 6 | 623592-00 | 4 | FELT SEAL | AR | |||
| 7 | 650916-01 | 2 | BRUSH CUT OFF | 120V POP OFF | AR | ||
| 9 | 623589-00 | 2 | BRUSH SPRING | AR | |||
| 10 | 623591-00 | 2 | BRUSH CAP | AR | |||
| 11 | 593685-00 | 2 | SCREW | M1.8x8 THD FRMG | AR | ||
| 12 | 625243-05 | 1 | HANDLE SA | AR | |||
| 13 | 641889-01S | 1 | SWITCH | AR | |||
| 15 | 628396-00 | 1 | SPRING | AR | |||
| 16 | 636963-00 | 1 | CORD CLAMP | AR | |||
| 17 | 330019-03 | 1 | SCREW | AR | |||
| 18 | 330005-01 | 1 | CORD PROTECTOR | AR | |||
| 19 | 622613-02 | 1 | OUTER FLANGE | M14 | AR | ||
| 20 | 633257-00SV | 1 | INNER FLANGE SA | AR | |||
| 21 | 629358-00 | 1 | GUARD SA | AR | |||
| 24 | 330122-67 | 1 | CORD SET | AR | |||
| 26 | 623593-00 | 2 | TERMINAL | AR | |||
| 29 | N142323 | 1 | NAME PLATE | D28111-AR TY.3 | AR | ||
| 30 | 635892-00 | 1 | BRAND LABEL | AR | |||
| 35 | 637543-00 | 1 | CHOKE SA | AR | |||
| 70 | 604484-00 | 1 | NUT | AR | |||
| 71 | 657180-00 | 1 | PINION | AR | |||
| 72 | 605040-67 | 1 | BEARING | AR | |||
| 73 | 623617-00 | 1 | FELT SEAL | AR | |||
| 74 | N422242 | 1 | RETAINER | AR | |||
| 75 | 623613-00 | 1 | WASHER | AR | |||
| 76 | 605040-02 | 1 | BEARING | AR | |||
| 77 | 641823-00 | 1 | SLEEVE | AR | |||
| 78 | 624764-04 | 1 | FIELD 230V | 220-240V | AR | ||
| 79 | 650997-00 | 1 | BAFFLE FAN | AR | |||
| 80 | 330065-25 | 4 | SCREW | AR | |||
| 81 | 623618-00 | 1 | GASKET | AR | |||
| 82 | 611492-00 | 1 | SLEEVE | AR | |||
| 83 | 623562-00 | 1 | GEARCASE COVER | AR | |||
| 84 | 385676-01 | 4 | SCREW | AR | |||
| 85 | 631609-02 | 1 | SCREW | M5x16 SPECIAL | AR | ||
| 87 | N079326 | 1 | WRENCH PIN | SPANNER | AR | ||
| 88 | N239381 | 1 | SIDE HANDLE | AR | |||
| 89 | 626999-00 | 1 | LINK | AR | |||
| 90 | 644326-00 | 1 | BAR LOCKING | LOCK | AR | ||
| 91 | 623608-00 | 1 | BUTTON START | AR | |||
| 92 | 633045-00 | 1 | O RING | 9.19x2.62 | AR | ||
| 93 | 633043-00 | 1 | O RING | 20.5x2.4 | AR | ||
| 836 | 233804-36 | 1 | DRIVER | T6 | AR |
