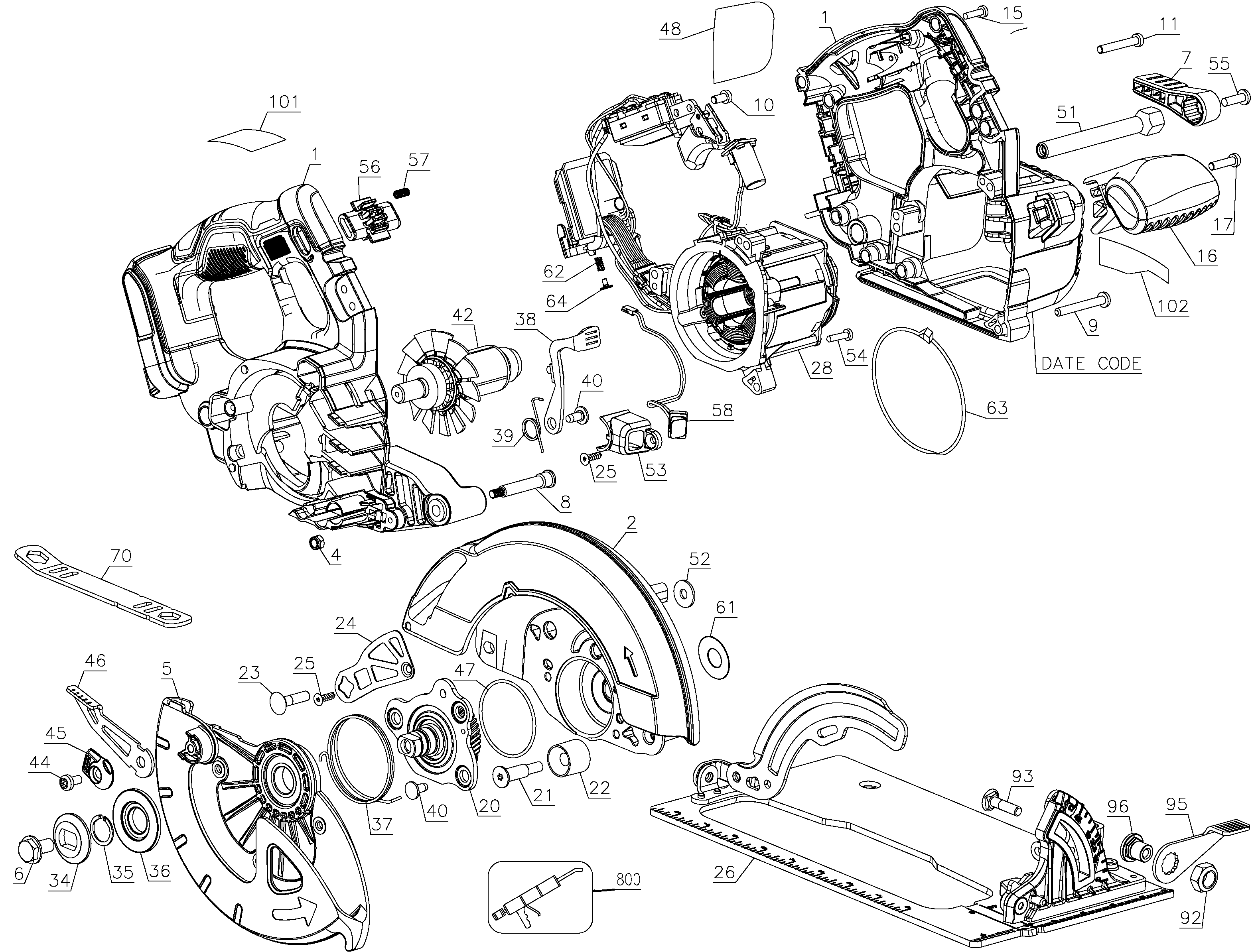

DCS575B 60V MAX 7-1/4IN BRUSHLESS Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N418029 | 1 | CLAMSHELL SET | B3 | |||
| 2 | N462816 | 1 | GEARCASE SA | GRAY | B3 | ||
| 4 | N461154 | 1 | NUT | B3 | |||
| 5 | N461005 | 1 | LOWER GUARD SA | B3 | |||
| 6 | 145344-00 | 1 | SCREW.SPECIAL | B3 | |||
| 7 | N419350 | 1 | LEVER | DEPTH ADJUST | B3 | ||
| 8 | N461157 | 1 | BOLT | B3 | |||
| 9 | 330045-19 | 4 | SCREW | B3 | |||
| 10 | 330019-10 | 1 | SCREW | B3 | |||
| 11 | 330019-15 | 1 | SCREW | B3 | |||
| 15 | 330019-03 | 7 | SCREW | B3 | |||
| 16 | N510174 | 1 | HANDLE | B3 | |||
| 17 | 330019-13 | 1 | SCREW | M4X19 T20 | B3 | ||
| 20 | N472351 | 1 | SPINDLE SA | PKG'D N435271 | B3 | ||
| 21 | N086135 | 1 | SCREW | B3 | |||
| 22 | 381066-00 | 1 | BUMPER | B3 | |||
| 23 | 098128-90 | 1 | CARRIAGE BOLT | B3 | |||
| 24 | N461456 | 1 | PLATE | B3 | |||
| 25 | N461159 | 2 | SCREW | M4 x 0.7P, Black | B3 | ||
| 26 | N472352 | 1 | SHOE ASSEMBLY | ALUM. PKG'D N438741 | B3 | ||
| 28 | N548509 | 1 | STATOR & MODULE | B3 | |||
| 34 | 145343-01 | 1 | WASHER OUTER CLAMP | B3 | |||
| 35 | N120426 | 1 | RETAINER | B3 | |||
| 36 | N084137 | 1 | WASHER INNER CLAMP | INNER | B3 | ||
| 37 | N100006 | 1 | SPRING | B3 | |||
| 38 | N090570 | 1 | LEVER LOCK | SPINDLE | B3 | ||
| 39 | N100123 | 1 | SPRING | B3 | |||
| 40 | 385915-04 | 4 | SCREW | B3 | |||
| 42 | N548510 | 1 | ROTOR SA | AK61 | B3 | ||
| 44 | 098094-13 | 1 | SCREW | M5 x 13mm, Pan Hd | B3 | ||
| 45 | N146857 | 1 | WASHER | GUARD LEVER | B3 | ||
| 46 | N094953 | 1 | LEVER | B3 | |||
| 47 | N361499 | 1 | O RING | B3 | |||
| 48 | N581150 | 1 | RATING PLATE | B3 | |||
| 51 | N420031 | 1 | SHAFT | DEPTH ADJUST | B3 | ||
| 52 | N434869 | 1 | WASHER | ID M6 OD 17, 1.5 Thk | B3 | ||
| 53 | N421358 | 1 | COVER | LED | B3 | ||
| 54 | N034545 | 4 | SCREW | M3x1.0x10mm T10 sec. | B3 | ||
| 55 | 330045-14 | 1 | SCREW | B3 | |||
| 56 | N422878 | 1 | BUTTON LOCK-OFF | B3 | |||
| 57 | N433343 | 1 | SPRING | B3 | |||
| 58 | N363247 | 1 | LED LIGHT | 60V Circ Saw | B3 | ||
| 61 | N447499 | 1 | WASHER FIBRE | RED | B3 | ||
| 62 | N461735 | 1 | SPRING | B3 | |||
| 63 | 90504014 | 1 | CABLE TIE | QS780 | B3 | ||
| 64 | N091479 | 1 | MOUNT | B3 | |||
| 70 | N420180 | 1 | SPANNER | B3 | |||
| 92 | N117921 | 1 | STOP NUT | ELASTIC 7/16-20 | B3 | ||
| 93 | 098128-90 | 1 | CARRIAGE BOLT | B3 | |||
| 95 | 145347-00 | 1 | LEVER | B3 | |||
| 96 | N094731 | 1 | SCREW | TOP HAT | B3 | ||
| 101 | N459251 | 1 | WARNING LABEL | B3 | |||
| 102 | N459252 | 1 | LABEL | 60V BRUSHLESS | B3 | ||
| 800 | 30301914-01 | 1 | GREASE | 35LBS RHEOLUBE 380G1 | B3 |
